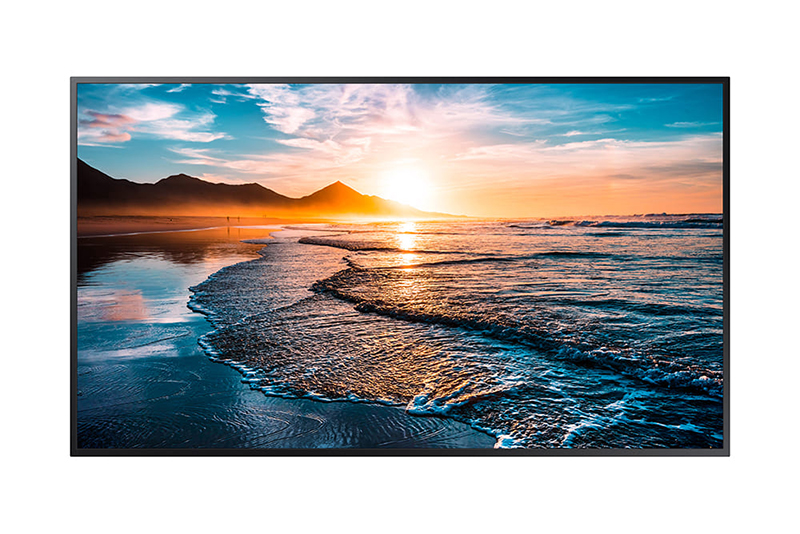

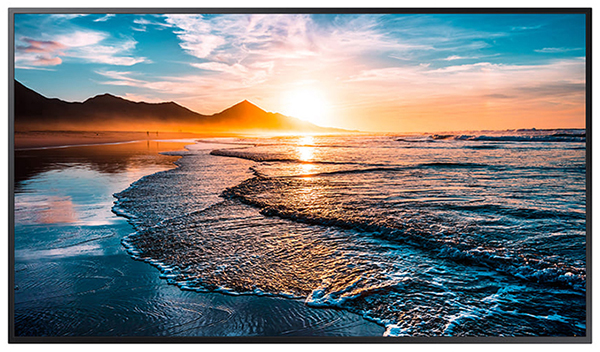

Samsung QH49R - QH-R Series 49" Edge-Lit 4K UHD QLED Display
Display any content in ultra-high definition with incredibly rich color on slim, efficient signage

Samsung QH49R - QH-R Series 49" Edge-Lit 4K UHD QLED Display



Samsung Products
Samsung Digital Signage
Samsung QH49R - QH-R Series 49 in. Edge-Lit 4K UHD QLED Display
#QH49R
Get a Quote!

Overview:

Through intelligent UHD upscaling technology, Samsung’s QHR series performs edge restoration and noise reduction to deliver UHD picture quality even with lower resolution content. As an added benefi t, the QHR series also features reliable, non-glare panels that provide better visibility from all angles. Backed by Tizen 4.0, the QHR series provides reinforced capability with multiple web formats and secured protection. Additionally, its new slim design simplifi es wall mounting and ensures seamless installation.

  • Engage audiences with eye-catching 700 nit brightness and ultra-high-defi nition resolution.
  • Deliver UHD-level picture quality even with lower resolution content through innovative UHD upscaling technology and unique picture-enhancing features.
  • Dynamic Crystal Color allows viewers to enjoy a wider spectrum of colors, up to one billion shades.
  • New symmetrical, slim design simplifi es installation and complements any environment.
  • Secure, PC-free operation through Knox and rigid three-layer protection.
  • Reliable, non-glare panels provide better visibility from all angles, anytime of day allowing businesses to deliver accurate information 24/7.

Features:

Time to upscale your display

Time to upscale your display

Samsung’s QHR series displays feature best-in-class UHD resolution with unmatched 700 nit brightness, ideal for locations requiring high visibility. The displays also feature intelligent UHD upscaling for stunning picture quality, all in a slim design.

Incredible 4K picture quality

Incredible 4K picture quality

Samsung’s new QHR series provides ultra high-definition 4K resolution, creating lifelike images with sharper picture quality than ever before.


Intelligent UHD upscaling

Samsung’s cutting-edge intelligent UHD upscaling technology performs edge restoration and noise reduction to deliver perfect UHD picture quality even with lower resolution content. This “future-proof” solution ensures best-in-class picture quality regardless of the original content resolution.

Intelligent UHD upscaling

Intelligent UHD upscaling

Intelligent UHD upscaling


Dynamic Crystal Color

Dynamic Crystal Color

The QHR series features Dynamic Crystal Color, using 10 bit processing for flawless color expression, allowing viewers to enjoy a wider spectrum of colors up to one billion shades. HDR+ functionality converts standard definition content to HDR quality for sharper contrast and more vivid colors.

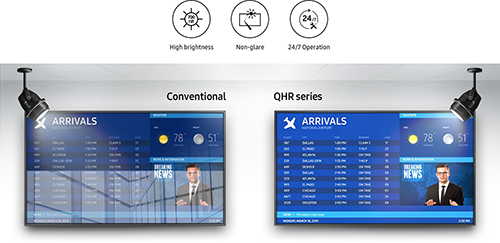

High visibility with eye-catching brightness



High visibility with eye-catching brightness

Samsung’s QHR series features brilliant image presentation with an impressive 700 nit brightness allowing businesses to deliver clear information 24/7. The display’s non-glare panels provide better visibility regardless of ambient light, ensuring critical information is always visible.

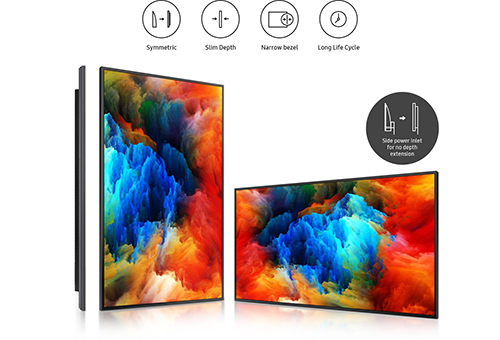

Slim and symmetrical design

Slim and symmetrical design

The QHR series features an all-new symmetric design simplifying wall mounting and ensuring installation is seamless. The flat back and slim depth will ensure a display that will stand the test of time.

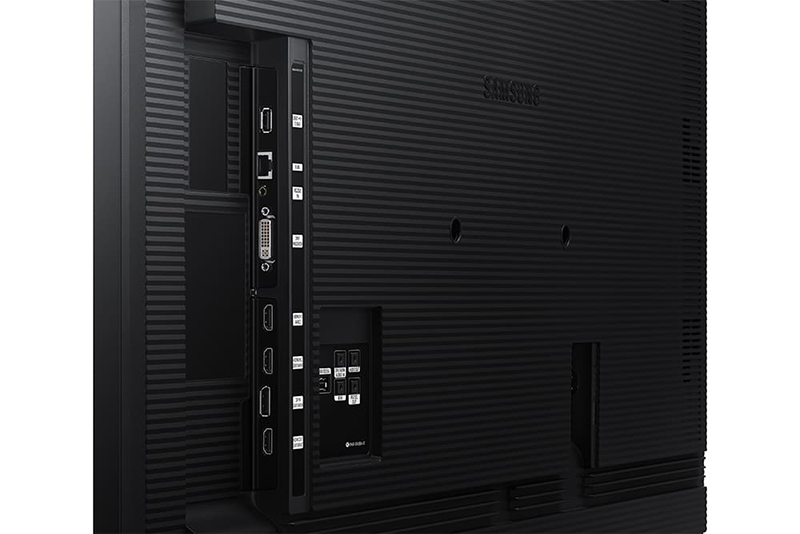

Clean cable management

Clean cable management

With QHR's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping expeience for customers, even when the back of the display is visible.




Powerful, all-in-one solution

Powerful, all-in-one solution

SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

Samsung Workspace secured by Knox

Samsung Workspace secured by Knox

With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.




WiFi and Bluetooth built-in

WiFi and Bluetooth built-in

Built-in WiFi and Bluetooth allow for more personalized and interactive services as well as simplifying how businesses showcase content. Whether it’s to make networking simpler or enabling interactive beacon technology in-store, QHR series displays help businesses move into the future of retail.

Safe operation, reliable performance

Safe operation, reliable performance

The QHR is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

* IP5x validation ensures satisfactory operation even with a certain level of dust inside the product. However, product operation is not guaranteed when exposed to particular types of dust, such as metal dust.


Specifications:



QH43R

QH49R

QH55R

QH65R

QH75R

Panel

Screen Size

43"

49"

55"

65"

75"

Panel Type

Edge LED BLU

Edge LED BLU

Edge LED BLU

Edge LED BLU

Edge LED BLU

Resolution

UHD (3840 x 2160)

UHD (3840 x 2160)

UHD (3840 x 2160)

UHD (3840 x 2160)

UHD (3840 x 2160)

Brightness (Typ.)

700 nits

700 nits

700 nits

700 nits

700 nits

Contrast Ratio (Typ.)

4000:1

4000:1

4000:1

4000:1

4000:1

Viewing Angle (H / V)

178° / 178°

178° / 178°

178° / 178°

178° / 178°

178° / 178°

Response Time (G-to-G)

8ms (Typ.)

8ms (Typ.)

8ms (Typ.)

8ms (Typ.)

8ms (Typ.)

Display Colors

16.7M (True Display) 1.07B (Dithered 10-bit)

16.7M (True Display) 1.07B (Dithered 10-bit)

16.7M (True Display) 1.07B (Dithered 10-bit)

16.7M (True Display) 1.07B (Dithered 10-bit)

16.7M (True Display) 1.07B (Dithered 10-bit)

Color Gamut

92% (DCI-P3, CIE 1976)

92% (DCI-P3, CIE 1976)

92% (DCI-P3, CIE 1976)

92% (DCI-P3, CIE 1976)

92% (DCI-P3, CIE 1976)

Operation Hour

24 / 7

24 / 7

24 / 7

24 / 7

24 / 7

Non-Glare Panel

Yes

Yes

Yes

Yes

Yes

Panel Orientation

Landscape / Portrait

Landscape / Portrait

Landscape / Portrait

Landscape / Portrait

Landscape / Portrait

Special Certifications

Special Certification

IP5X

IP5X

IP5X

IP5X

IP5X

Cisco Compatible

Yes

Yes

Yes

Yes

Yes

Crestron Certified

Yes

Yes

Yes

Yes

Yes

Sound

Speaker Type

Built in Speaker (10W + 10W)

Built in Speaker (10W + 10W)

Built in Speaker (10W + 10W)

Built in Speaker (10W + 10W)

Built in Speaker (10W + 10W)

Connectivity:

Input

RGB

DVI-D, DisplayPort 1.2 (1)

DVI-D, DisplayPort 1.2 (1)

DVI-D, DisplayPort 1.2 (1)

DVI-D, DisplayPort 1.2 (1)

DVI-D, DisplayPort 1.2 (1)

Video

HDMI 2.0 (2)

HDMI 2.0 (2)

HDMI 2.0 (2)

HDMI 2.0 (2)

HDMI 2.0 (2)

HDCP

HDCP2.2

HDCP2.2

HDCP2.2

HDCP2.2

HDCP2.2

Audio

Stereo Mini Jack, DVI, HDMI

Stereo Mini Jack, DVI, HDMI

Stereo Mini Jack, DVI, HDMI

Stereo Mini Jack, DVI, HDMI

Stereo Mini Jack, DVI, HDMI

USB

USB 2.0 x 2

USB 2.0 x 2

USB 2.0 x 2

USB 2.0 x 2

USB 2.0 x 2

Connectivity:

Output

RGB

HDMI 2.0 (Loop-out)

HDMI 2.0 (Loop-out)

HDMI 2.0 (Loop-out)

HDMI 2.0 (Loop-out)

HDMI 2.0 (Loop-out)

Video

N/A

N/A

N/A

N/A

N/A

Audio

Stereo Mini Jack

Stereo Mini Jack

Stereo Mini Jack

Stereo Mini Jack

Stereo Mini Jack

Power Out

N/A

N/A

N/A

N/A

N/A

USB

N/A

N/A

N/A

N/A

N/A

External Control

External Control

RS232C (In / Out) thru Stereo Jack, RJ45

RS232C (In / Out) thru Stereo Jack, RJ45

RS232C (In / Out) thru Stereo Jack, RJ45

RS232C (In / Out) thru Stereo Jack, RJ45

RS232C (In / Out) thru Stereo Jack, RJ45

External Sensor

IR

IR

IR

IR

IR

Other Connectivity

Tuner

N/A

N/A

N/A

N/A

N/A

Wi-Fi

Yes

Yes

Yes

Yes

Yes

Bluetooth

Yes

Yes

Yes

Yes

Yes

Power/Operation

Type

Internal

Internal

Internal

Internal

Internal

Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

Power Consumption Max (Watts/Hr)

138

143

160

204

314

Power Consumption Typical (Watts/Hr)

96

99

118

150

247

Power Consumption Typical BTU (Max)

470.6

487.6

545.6

695.6

1070.7

Power Consumption Typical Sleep Mode

0.5

0.5

0.5

0.5

0.5

Power Consumption Typical Off Mode

N/A

N/A

N/A

N/A

N/A

Mechanical Specifications

Set Dimensions (inches / mm)

38.1" x 21.9" x 1.9" / 967.5 x 557.7 x

48.3mm

43.3" x 24.9" x 1.8" / 1099.2 x 631.5 x

46.3mm

48.6" x 27.9" x 1.8" / 1235.1 x 707.9 x

46.3mm

57.2" x 32.7" x 1.8" / 1453.9 x 831.0 x

46.3mm

66.2" x 37.8" x 1.9" / 1681.1 x 960.1 x

49.7mm

Package Dimensions (inches / mm)

43.1" x 26.6" x 6.0" / 1095 x 676 x 151mm

49.0" x 30.4" x 6.0" / 1247 x 772 x 152mm

55.2" x 33.8" x 6.4" / 1402 x 858 x 163mm

63.4" x 38.3" x 7.3" / 1611 x 973 x 185mm

73.7" x 44.4" x 8.8" / 1871 x 1127 x 223mm

Set Weight (lbs. / kg)

22.0 lbs. / 10kg

29.8 lbs. / 13.5kg

39.9 lbs. / 18.1kg

54.9 lbs. / 24.9kg

84.4 lbs. / 38.3kg

Package Weight (lbs. / kg)

29.3 lbs. / 13.3kg

39.7 lbs. / 18kg

52.0 lbs. / 23.6kg

73.4 lbs. / 33.3kg

108 lbs. / 49kg

VESA Mount

200 x 200

200 x 200

200 x 200

400 x 400

400 x 400

Protection Glass

N/A

N/A

N/A

N/A

N/A

Stand Type

Foot Stand (Optional)

Foot Stand (Optional)

Foot Stand (Optional)

N/A

N/A

Environmental Conditions

Operating Temperature

32˚F ~ 104˚F / 0℃~ 40℃

32˚F ~ 104˚F / 0℃~ 40℃

32˚F ~ 104˚F / 0℃~ 40℃

32˚F ~ 104˚F / 0℃~ 40℃

32˚F ~ 104˚F / 0℃~ 40℃

Humidity

10~80%

10~80%

10~80%

10~80%

10~80%

Special Features



Hardware

Temperature Sensor, Pivot Display, Clock Battery (168 Hrs Clock Keeping), Built

in Speaker (10W 2ch), Video Wall Daisy Chain (HDCP2.2:4EA,HDCP1.4:7EA), IP5x

Rating, Wi-Fi/BT

Temperature Sensor, Pivot Display, Clock Battery (168 Hrs Clock Keeping), Built

in Speaker (10W 2ch), Video Wall Daisy Chain (HDCP2.2:4EA,HDCP1.4:7EA), IP5x

Rating, Wi-Fi/BT

Temperature Sensor, Pivot Display, Clock Battery (168 Hrs Clock Keeping), Built

in Speaker (10W 2ch), Video Wall Daisy Chain (HDCP2.2:4EA,HDCP1.4:7EA), IP5x

Rating, Wi-Fi/BT

Temperature Sensor, Pivot Display, Clock Battery (168 Hrs Clock Keeping), Built

in Speaker (10W 2ch), Video Wall Daisy Chain (HDCP2.2:4EA,HDCP1.4:7EA), IP5x

Rating, Wi-Fi/BT

Temperature Sensor, Pivot Display, Clock Battery (168 Hrs Clock Keeping), Built

in Speaker (10W 2ch), Video Wall Daisy Chain (HDCP2.2:4EA,HDCP1.4:7EA), IP5x

Rating, Wi-Fi/BT

Software

Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot Key Option, Plug & Play (Initial Setting)

Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot Key Option, Plug & Play (Initial Setting)

Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot Key Option, Plug & Play (Initial Setting)

Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot Key Option, Plug & Play (Initial Setting)

Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot Key Option, Plug & Play (Initial Setting)

Internal Media

Player

Processor

Cortex A72 1.7GHz Quad-Core CPU

Cortex A72 1.7GHz Quad-Core CPU

Cortex A72 1.7GHz Quad-Core CPU

Cortex A72 1.7GHz Quad-Core CPU

Cortex A72 1.7GHz Quad-Core CPU

On-Chip Cache Memory

L1 Instruction Cache: 48KB L1 Data Cache: 32KB

L2 Cache: 2MB

L1 Instruction Cache: 48KB L1 Data Cache: 32KB

L2 Cache: 2MB

L1 Instruction Cache: 48KB L1 Data Cache: 32KB

L2 Cache: 2MB

L1 Instruction Cache: 48KB L1 Data Cache: 32KB

L2 Cache: 2MB

L1 Instruction Cache: 48KB L1 Data Cache: 32KB

L2 Cache: 2MB

Clock Speed

1.7GHz

1.7GHz

1.7GHz

1.7GHz

1.7GHz

Main Memory Interface

2.5GB, LPDDR4 1.5GHz 64-bit

2.5GB, LPDDR4 1.5GHz 64-bit

2.5GB, LPDDR4 1.5GHz 64-bit

2.5GB, LPDDR4 1.5GHz 64-bit

2.5GB, LPDDR4 1.5GHz 64-bit

Graphics

Graphic  resolution: 1920x1080

Output resolution: 3840x2160 (Scale up from graphic processing result)

Graphic  resolution: 1920x1080

Output resolution: 3840x2160 (Scale up from graphic processing result)

Graphic  resolution: 1920x1080

Output resolution: 3840x2160 (Scale up from graphic processing result)

Graphic  resolution: 1920x1080

Output resolution: 3840x2160 (Scale up from graphic processing result)

Graphic  resolution: 1920x1080

Output resolution: 3840x2160 (Scale up from graphic processing result)

Storage (FDM)

8GB (3.88GB Occupied by O/S, 4.12GB

Available)

8GB (3.88GB Occupied by O/S, 4.12GB

Available)

8GB (3.88GB Occupied by O/S, 4.12GB

Available)

8GB (3.88GB Occupied by O/S, 4.12GB

Available)

8GB (3.88GB Occupied by O/S, 4.12GB

Available)



Multimedia

Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9

Audio Decoder: AC3 (DD), MPEG

Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9

Audio Decoder: AC3 (DD), MPEG

Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9

Audio Decoder: AC3 (DD), MPEG

Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9

Audio Decoder: AC3 (DD), MPEG

Video Decoder: MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9

Audio Decoder: AC3 (DD), MPEG

IO Ports

USB 2.0

USB 2.0

USB 2.0

USB 2.0

USB 2.0

Operating System

Tizen 4.0 (VDLinux)

Tizen 4.0 (VDLinux)

Tizen 4.0 (VDLinux)

Tizen 4.0 (VDLinux)

Tizen 4.0 (VDLinux)

SSSP - MagicInfo

MagicInfo 6

MagicInfo 6

MagicInfo 6

MagicInfo 6

MagicInfo 6

Safety and Environmental Certifications

Safety

60950-1

60950-1

60950-1

60950-1

60950-1

EMC

Class B

Class B

Class B

Class B

Class B

Environment

TBD

TBD

TBD

TBD

TBD

Accessories

Included

Quick Setup Guide, Warranty Card, Power

Cord, Remote Controller, Batteries

Quick Setup Guide, Warranty Card, Power

Cord, Remote Controller, Batteries

Quick Setup Guide, Warranty Card, Power

Cord, Remote Controller, Batteries

Quick Setup Guide, Warranty Card, Power

Cord, Remote Controller, Batteries

Quick Setup Guide, Warranty Card, Power

Cord, Remote Controller, Batteries

Optional Stand

STN-L4355F

STN-L4355F

STN-L4355F

N/A

N/A

Optional Mount

WMN4070SE

WMN4070SE

WMN4070SE

WMN4277SE

WMN4277SE, WMN6575SE

Service

Standard Warranty

3 Years

3 Years

3 Years

3 Years

3 Years











Documentation:


Download the QH-R Series Specifications (.PDF)

Pricing Notes:

Samsung Products
Samsung Digital Signage

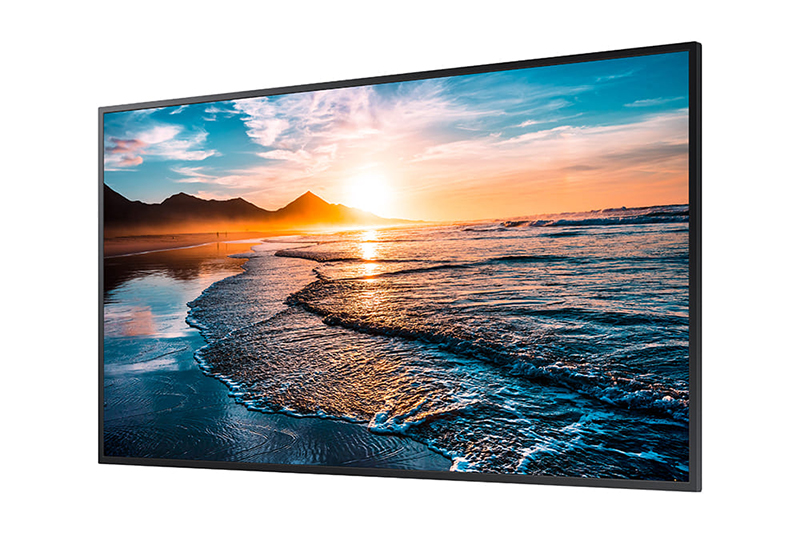

Samsung QH49R - QH-R Series 49 in. Edge-Lit 4K UHD QLED Display
#QH49R
Get a Quote!
