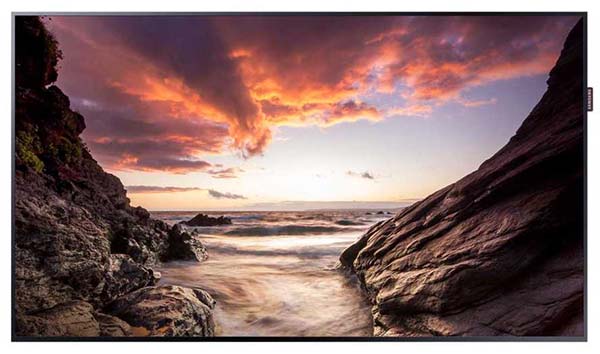

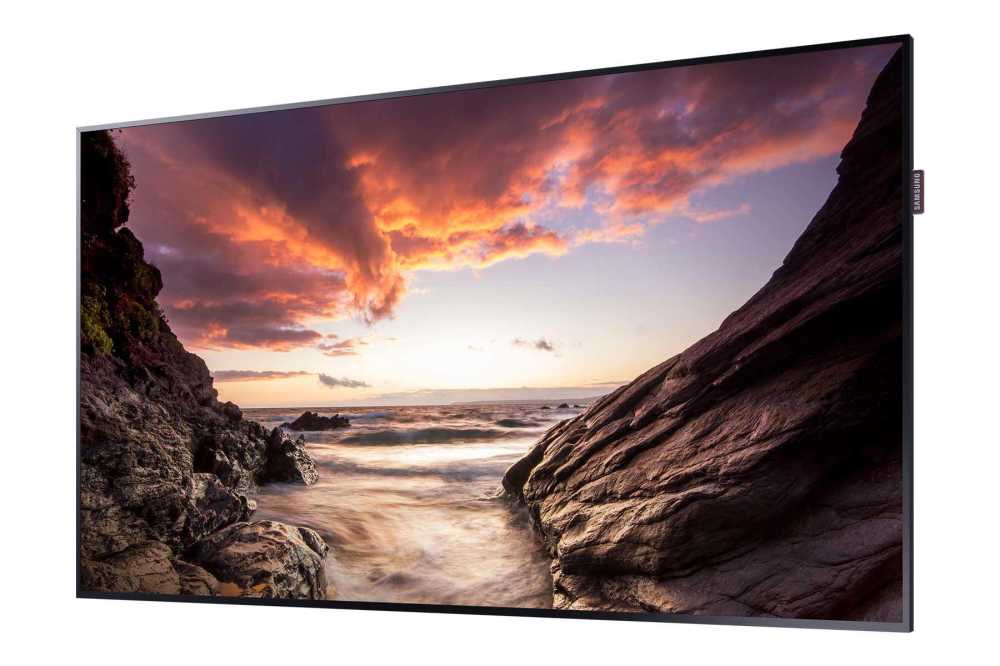

Samsung PH49F-P - PHF-P Series 49" Edge-Lit LED Display for Business
Premium TIZEN-powered displays featuring a slim, captivating design and extended connectivity
Get a Quote!
Samsung PHF-P Series high brightness commercial displays feature an ultra-slim and narrow design. They're built for 24/7 run-time and have an embedded System-on-Chip (SoC) media player for simple remote content management. The non-glare panel offers improved visibility, plus IP5X certified dust protection allows for smooth installation.
- Next gen Smart Signage Platform (SSP) 4.0 powered by Tizen OS for powerful, streamlined 24/7 remote content management
- IP5X certified dust protection provides proven durability for smooth installation without the need for additional housing
- Non-glare, high brightness panel offers improved visibility in bright ambient light

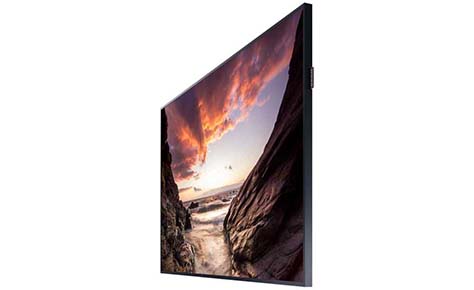

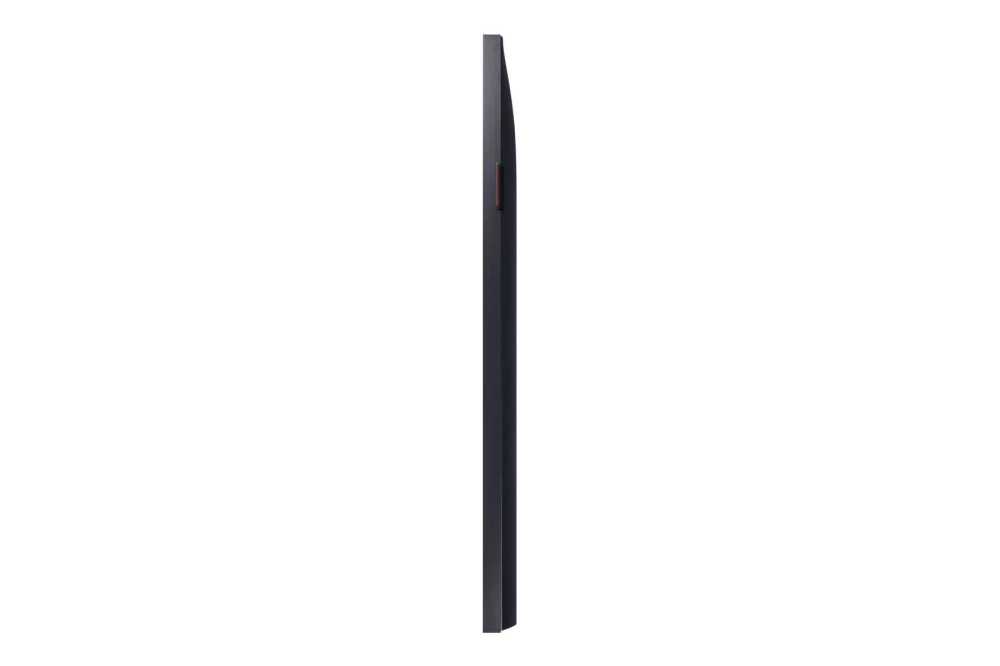

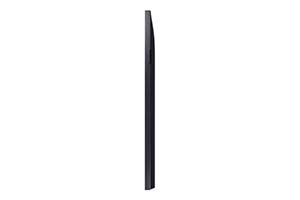

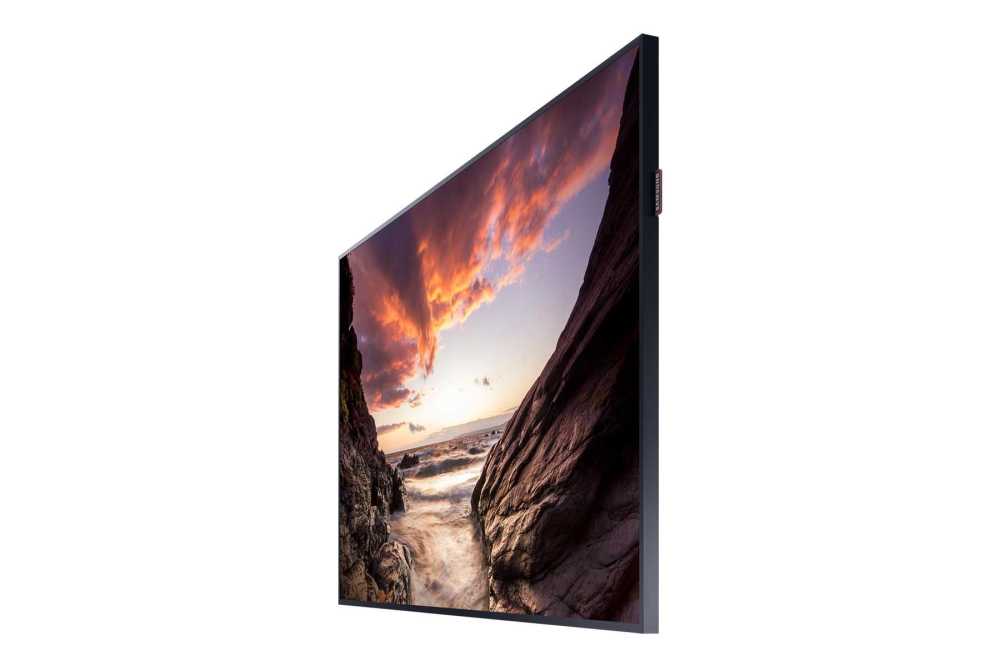

- Ultra-slim, ADA-Compliant profile of just 1.1" chassis depth and 6.9mm bezel width

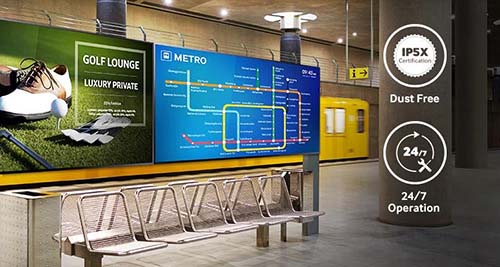

Built for 24/7 Use & IP5X Certified for Dust Protection
PHF-P Series displays are built for dependable 24/7 continuous use with commercial-level cooling technologies and are proven durable with IP5X certified dust protection. So you can install your signage smoothly in dusty environments without the need for additional housing, while meeting around the clock operating requirements. They also feature anti-vibration technologies to protect sensitive components.

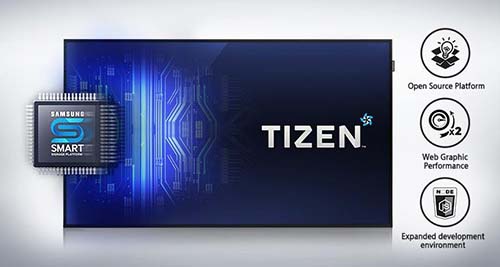

System-on-Chip Platform for Simple Remote Content Management
Powered by an embedded System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined digital signage solution, with digital signage software like MagicInfo T for PC-less content creation, scheduling and playing and remotely managing content.

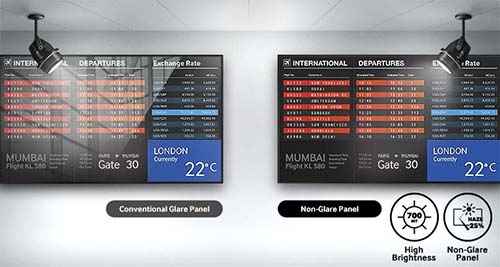

Non-Glare, High Brightness Panel for Improved Visibility
The non-glare, high brightness panel features 700nit brightness to improve visibility of your message in bright ambient light.
Enhanced Web Compatibility
Samsung B2B SDK allows developers to build web-based apps for customer functionality and greater interactivity.
Unlock easier and more flexible control due to a centralized infrared receiver
The standalone displays’ integrated centralized infrared receiver (IR) ensures easier and more flexible user control. All models can receive the IR signal on individual panels via Central IR. Through tailored installation or mounting, users can navigate the IR functionality from various locations, further augmenting uninterrupted performance.
More Content Possibilities

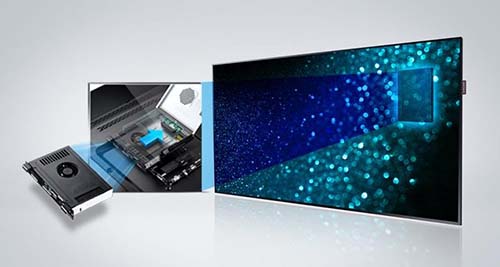

PHF-P Series displays are designed to use content from various external sources including Samsung PIMs. Samsung PIMs use Intel Open Pluggable Specification (OPS) connectivity to enable power and video source delivery through a single cable. No additional power cord is necessary.

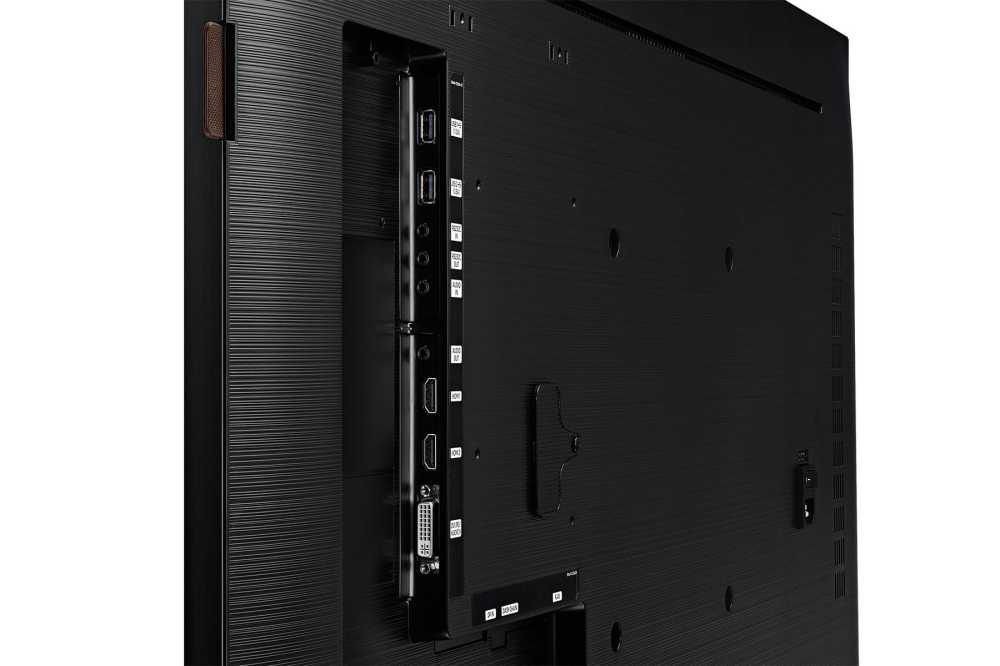

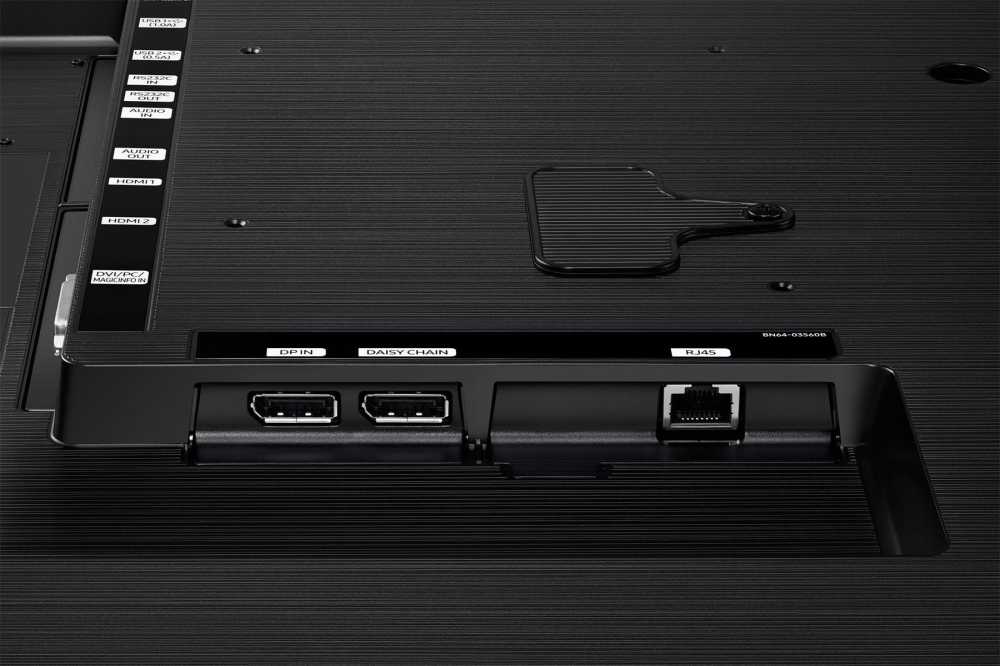

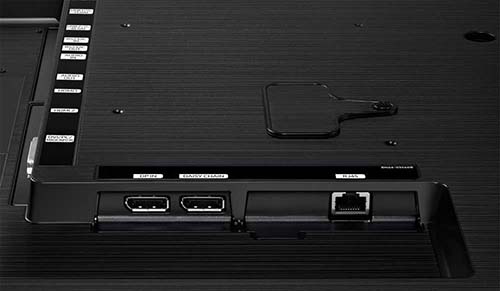

Discover versatile connectivity options to display a full range of exceptional content that speaks to your audience. Connections include DVI-I, Display Port 1.2, HDMI, USB 2.0, RS232C/RJ45 and more.
Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
|Samsung PH49F-P - PHF-P Series 49" Edge-Lit LED Display Specifications|
|Panel Technology||60Hz E-LED BLU|
|Resolution||1920x1080 (Full HD)|
|Pixel Pitch (mm)||0.560(H) x 0.560(V)|
|Active Display Area (mm)||1073.779(H) x 604.00(V)|
|Brightness (Typ.)||700 nit|
|Viewing Angle (Horizontal/Vertical)||178° / 178°|
|Display Colors||10bit Dithering - 1.07 Billion|
|H-Scanning Frequency||30 ~ 81kHZ|
|V-Scanning Frequency||48 ~ 75HZ|
|Maximum Pixel Frequency||148.5MHz|
|Speaker Type||Built in Speaker(10W + 10W)|
|Power Supply||AC 100 - 240 V~ (+/- 10 %), 50/60 Hz|
|Product Dimensions||43" x 24.5" x 1.1"|
|Packaging Dimensions||47" x 28.3" x 6.5"|
|Product Weight||29.1 lbs|
|Shipping Weight||39.9 lbs|
|VESA Mount (mm)||400 x 400 mm|
|Stand Type||Foot Stand (Optional)|
|Bezel Width||6.9 (Top / Side), 8.9 (Bottom)|
|Recommended Usage Hours||24/7|
|Operating Temperature||0℃~ 40℃|
|Key Features||Slim & Light Signage with Built-in MagicInfo S4, SSSP 4.0|
|Special Features||H/W : Non Glare Panel, Temperature Sensor, Video Wall(15x15(OSD)), Video Wall Daisy Chain(16), Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded, IP5x, Center IR S/W : Magic Clone(to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC,Plug and Play, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Firmware Update by Network, New Home Screen, PC-less VideoWall(external source only), Multi Channel, Mobile Control, Event Schedule, Backup Player|
|Safety||CB (Europe) : IEC60950-1/EN60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore ) : PSB+IEC60950-1 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM+IEC60950-1 SASO (Saudi Arabia ) : SASO+IEC60950-1 BIS(India) : IEC60950-1 / IS13252 NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998 KC(Korea) : K 60950-1 EAC(Russia) : EAC+IEC60950-1 INMETRO(Brazil) : INMETRO+IEC60950-1 BSMI(Taiwan) : BSMI+IEC60950-1 RCM(Australia) : IEC60950-1/AS/NZS 60950-1 UL(USA) : cUL60950-1 CSA (Canada) : cUL TUV (Germany) : CE NEMKO (Norway) : CE|
|EMC||FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003|
|Included||Quick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover Jack|
Download the PHF-P Series Specifications (.PDF)
- Pricing and product availability subject to change without notice.
- On-site Warranty includes:
- Next Business Day exchange of the display
- Includes on-site tech-assisted exchange of display
- Technician removes original unit, installs replacement, and ships non-working unit to Samsung
- Coverage for mechanical/electrical breakdown
- 3,4,5 year terms available
