Samsung VMR-U Series 46" VM46R-U
Ultra Narrow Bezel Video Wall Display with SoC Embedded Media Player for Business

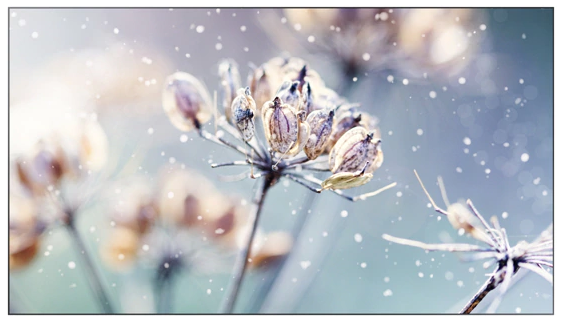

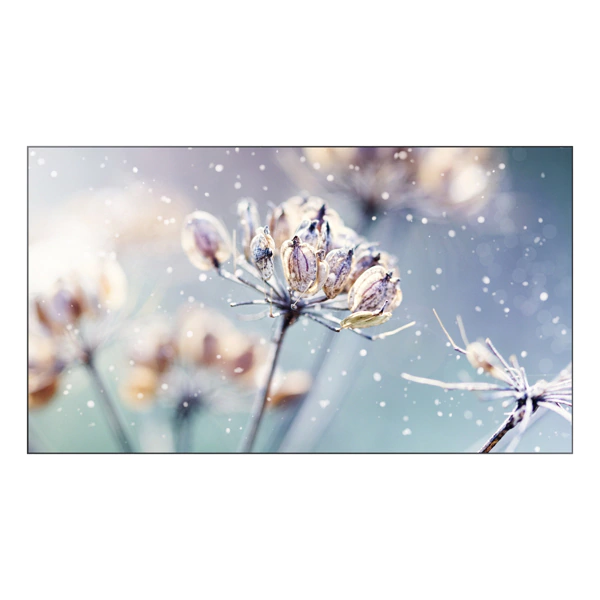

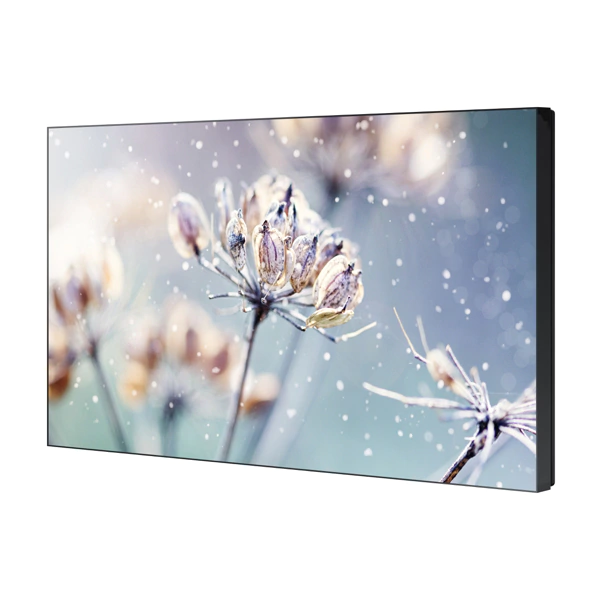

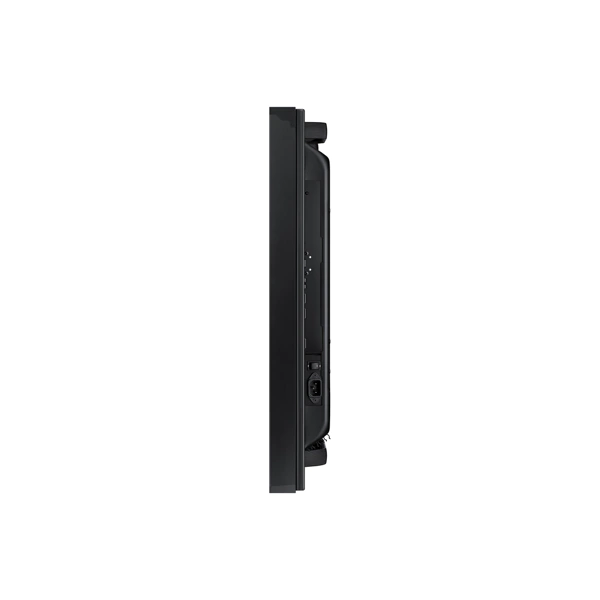

Samsung VM46R-U



Sorry, this product is no longer available, please contact us for a replacement.



Overview:

Deliver flexible, dynamic content in virtually seamless video wall matrices with the VM46R-U's ultra-narrow bezels and embedded System-on-Chip (SoC) technology. Built to operate around the clock, a non-glare, 500nit panel delivers improved visibility even in bright conditions. Factory calibration provides brightness and color uniformity across multiple displays.
  • All-in-one video wall solution that lets you operate your displays as one cohesive unit or as individual displays without the need for additional PCs and hardware
  • Non-glare panel with 500nit brightness offers improved visibility of your message
  • Ultra-narrow bezels at 3.5mm bezel-to-bezel (BtB) allow you to create virtually seamless video walls
  • Dependable 24/7 continuous run-time to meet around the clock operating requirements

Features:

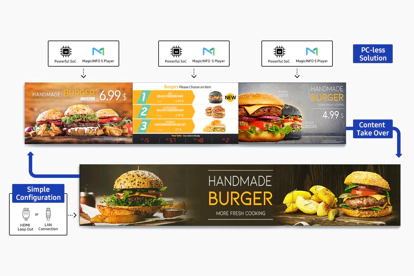

Samsung VMR-U Series feature SoC

System-on-Chip (SoC)

The VM46R-U features embedded system-on-chip (SoC) technology, allowing screens to easily switch between displaying individual content and operating together to display a cohesive image. This can be done with a simple HDMI loop out or LAN connection, eliminating the need for an external media player.

Samsung VMR-U Series feature SSSP

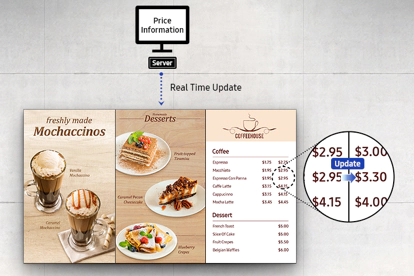

Samsung SMART Signage Platform (SSSP)

Samsung’s SMART Signage Platform (SSSP), powered by Tizen 4.0, supports a web-friendly environment for development through reinforced compatibility with web formats and standards. It allows for effortless, real-time content updates to meet the fast-paced needs of business today.


Samsung VMR-U Series feature ultra-narrow

Ultra-Narrow 3.5mm Bezels

The VM46R-U features ultra-thin bezels at a mere 3.5mm bezel-to-bezel. So you can create virtually seamless video walls with elegance and sophistication.

Samsung VMR-U Series feature non-glare

Non-Glare, 500nit Panel for Improved Visibility

The non-glare panel features 500nit brightness to improve visibility of your message in bright ambient light.


Samsung VMR-U Series feature reliability

Reliable 24/7 Continuous Operation

Each VM46R-U display features a reinforced panel that's built for dependable 24/7 continuous use and helps to prevent screen darkening, light leakage and picture deterioration. So you can meet around the clock operating requirements in venues ranging from retail storefronts to public spaces.

Samsung VMR-U Series feature factory calibration

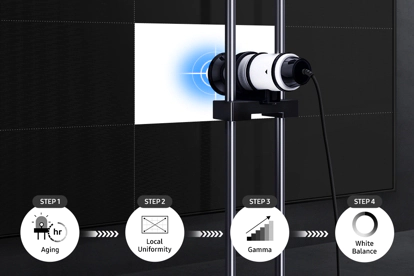

Factory Calibration

Factory calibration to precise Samsung specification helps to ensure uniform brightness and minimize color difference across multiple displays, so you can experience color uniformity right out of the box for consistent video wall matrices. Plus, you can also manage the brightness and color uniformity with Samsung's Color Expert Pro, a powerful, free digital signage software program.

Specifications:



VM46R-U

Panel

Diagonal Size

Class

46"

Measured

45.9"

Type

D-LED DID

Resolution

1920 x 1080

Pixel Pitch (mm)

0.53025 mm (H) x 0.53025 mm (V)

Active Display Area

1018.08 mm x 572.67 mm

Brightness(Typ.)

Max 500 nits

Contrast Ratio (Typ.)

3500:1

Viewing Angle(H/V)

178 / 178

Response Time (G to G)

8ms

Display Colors

8 Bit - 16.7M

Color Gamut

72%

Operation Hour

24/7

Anti-Glare Panel

Yes

Connectivity



Input

RGB

DisplayPort 1.2

Video

HDMI 2.0 (2)

HDCP

HDCP 2.2

USB

USB 2.0 x 1

Output

RGB

HDMI (Loop-Out)

Audio

Stereo Mini Jack

External Control

RS232C (In/Out), RJ45

External Sensor

Detachable Type (IR)

Power

Type

Internal

Power Supply

AC 100 - 240 V~ (+/- 10 %), 50/60 Hz



Power Consumption

Max / Typical [W/h]

143 / 96

Rating [W/h]

210

BTU (Max)

488

Sleep Mode / Off Mode

<0.5W / <0.5W

Mechanical

Spec

Dimension (mm / inch)

Set

1022.1 x 576.6 x 97.4 / 40.24" x 22.7" x 3.83"

Package

1153 x 724 x 295 / 45.39" x 28.5" x 11.61"

Weight (kg / lb)

Set

15.9 kg / 35.05 lb

Package

21.7 kg / 47.84 lb

VESA Mount

600 x 400

Bezel Width (mm)

2.3mm(U/L), 1.2mm(R/B)

Operation Features































Certification

Operating Temperature / Humidity

0℃~ 40℃ / 10~80%

Key

Special

Ultra Narrow Bezel

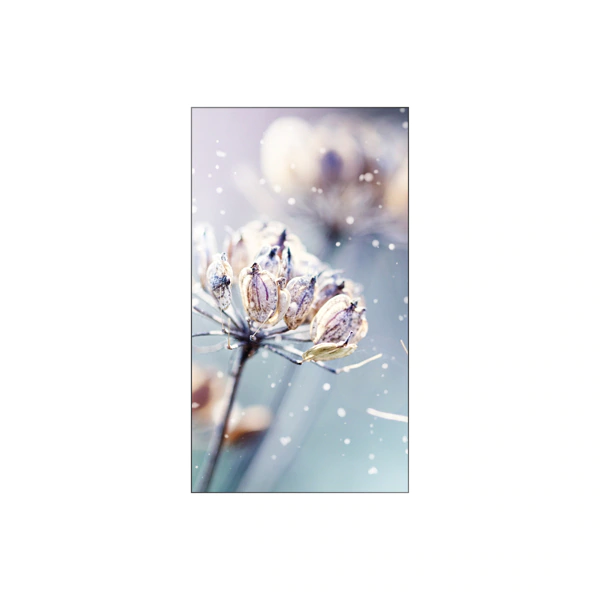

ACM Support (Advanced Color Management), Auto Source Switching & Recovery, Haze 25%, Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), Pivot Display, Image Rotation, Button Lock, HDMI Digital Daisy Chain (Supporting UHD Resolution, HDCP Support), Smart F/W Update, Clock Battery (80 Hrs Clock Keeping)











Internal Player (Embedded Hardware)

Processor

Coretex A72 1.7GHz Quad-Core CPU

On-Chip Cache Memory

L1 Instruction Cache: 48KB L1 Data Cache: 32KB

L2 Cache: 2MB

Clock Speed

1.7GHz

Main Memory Interface

2.5GB, LPDDR4 1.5GHz 64 Bit

Graphics

Graphic Resolution: 1920 x 1080 - Supports OpenGL ES

Storage (FDM)

8GB (3.88GB Occupied by O/S, 4.12GB Available)



Multimedia

Video Decoder

- MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC

- VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9

Audio Decoder

- AC3 (DD), MPEG

IO Ports

USB 2.0

Operating System

Tizen 4.0 (VDLinux)

Safety

UL (USA): UL 60950-1



EMC

FCC (USA) FCC Part 15, Subpart B Class A

Accessories

Included

Quick Setup Guide, Warranty Card, HDMI Cable, Stereo to DB9 Cable, Power Cord, Remote Controller, Batteries, External IR

Optional

Mount

WMN-46VD



Documentation:

Download the Samsung VMR-U Series Datasheet (.PDF)
