Samsung UE55D - UE-D Series 55" Edge-Lit LED Display
Picture-perfect Displays For A Perfect Videowall Solution.

Samsung UE55D - UE-D Series 55" Edge-Lit LED Display

This product is no longer available, replaced by the UD55E-B - UD-E-B Series 55" Direct-Lit LED Display

Overview:

The Samsung UE55D features a stylishly thin chassis with a slim 11mm bezel to bezel (BtB) spec, combined with an upgraded Samsung SMART Signage Platform. Create beautiful video walls in full HD with no PC, DVD or SBB required. Built-in WiFi allows for easy mobile control and increased Daisy Chain capability, while compatibility with our predecessor UE-C models provides versatile options.

  • Edge-Lit LED 55" Display with Narrow Bezels at 11mm BtB
  • Enhanced SSP System-on-Chip (SoC) Performance with Quad Core Processor
  • Stylish, Ultra-Slim 1.2" Chassis Design
  • PC-Less Videowalls and Built-in WiFi

Features

Edge-Lit LED Display

The edge-lit 55" display of the UE55D features full HD resolution to deliver sharp, detail-rich images and crisp type. The narrow bezels, at 11mm BtB, elegantly complement the visuals thanks to minimal distraction.

Enhanced SSP with Quad Core Processor

Experience 2x SoC performance thanks to SSP with a quad core processor. SSP is an integrated, open platform providing a powerful streamlined solution to reduce TCO in digital signage deployments through savings in hardware installation and operating costs.

Ultra-Slim 1.2" Chassis

A stylishly thin chassis helps to create sophisticated videowalls that can inspire your audience. The ultra-slim design also helps to simplify installation while meeting ADA compliance requirements.

PC-Less Videowalls

Create beautiful video walls with no PC, DVD or SBB. Use only USB with Display Port 1.2 Loop In/Out. Users can benefit from the simplified process and less equipment requirements for videowall installation and content playing.

Built-In Wi-Fi

Experience easy mobile control and increased Daisy Chain capability thanks to built-in Wi-Fi. Use AllShare® Cast (sold separately) over a Wi-Fi connection for simple content mirroring from a tablet or mobile phone to your display.

UE55C Compatibility

The UE55D features a new design that is compatible with our predecessor UE55C model to provide businesses with versatile options for videowall creation. Enjoy bezel, depth and VESA compatibility.

Specifications:


Samsung UE55D - UE-D Series 55" Edge-Lit LED Display Specifications
Display
Screen Size 55"
Panel Technology 120Hz E-LED BLU
Resolution 1920 x 1080 (16:9) Full HD
Brightness 450 nits
Contrast Ratio 4000:1
Viewing Angle (Horizontal/Vertical) 178° / 178°
Orientation Landscape / Portrait
Response Time (G-to-G) 8ms
Connectivity
Input Video: VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2, Component/Composite, HDMI, Audio: Stereo Mini Jack
Output Video: DisplayPort 1.2 (Loop-Out), Audio: Stereo Mini Jack
External Contro RS232C (In/Out) thru Stereo Jack, RJ45
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max 130W / 154W
Power Consumption (Standby) < 0.5W
Environmental Conditions
Operating Temperature 0°C - 40°C
Operating Humidity 10%~80%
Features
Key LED Slim Videowall
Special Hardware Wi-Fi Module Embedded, SD Card Slot, Super Clear Coating, Temperature Sensor, Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker (10W x 2ch)
Software Magic Clone( to USB), Auto Source Switching & Recovery, Lamp Error Detection, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Built In MagicInfo Player S2, Video Wall (15X15), Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player
Internal Media Player Cortex-A9 1Ghz Quad Core, 1.5GB DDR3, 8GB FDM, USB 2.0, Linux OS
VESA Standard Wall Mount Interface 400 x 400mm
Dimensions
Product Dimensions (without stand) 48.1" x 27.3" x 1.2"
Packaging Dimensions 52.8" x 31.5" x 5.7"
Bezel Width 5.5mm
Weight
Product Weight 29.3 lbs.
Shipping Weight 38.6 lbs.
Service
Standard Warranty 3 Years On-Site (Parts / Labor / Backlight)
Accessories
Included Quick Setup Guide, Warranty Card, Application CD, DP Cable, Power Cord, Remote Controller, Batteries
Optional Mount WMN4270SD, WMN250MD, WMN4675MD (for Videowall W/M)
Optional Stand STN-L4055AD, STN-L4655E
Optional Media Player SBB-C, SBB-CD7, SBB-CQ7
Green Management
Emission Standard EMC
ENERGY STAR® 6.0 Compliant Yes
RoHS Compliant Yes
Packaging Recyclability Packing Materials Recyclable

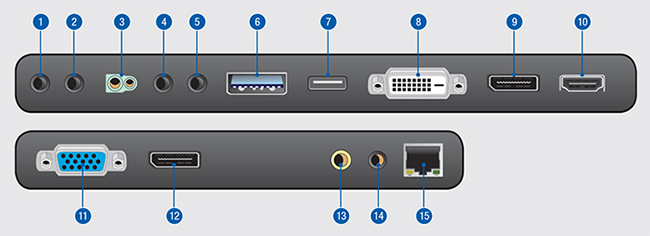

Connectivity
  1. RS232C In
  2. RS232C Out
  3. IR/Ambient Sensor In
  4. Audio In
  5. Audio Out
  6. SD Card Slot
  7. USB
  8. DVI In
  9. DisplayPort In
  10. HDMI In
  11. VGA In
  12. DisplayPort Out
  13. AV In
  14. IR Out
  15. RJ45 In
UE-D Series Connectivity

Compare:


Samsung UE-D Series Commercial LED LCD Displays
Model Number UE46D UE55D
Display
Screen Size 46" 55"
Panel Technology 120Hz E-LED BLU 120Hz E-LED BLU
Resolution 1920 x 1080 (16:9) Full HD 1920 x 1080 (16:9) Full HD
Brightness 450 nits 450 nits
Contrast Ratio 4000:1 4000:1
Viewing Angle (Horizontal/Vertical) 178° / 178° 178° / 178°
Orientation Landscape / Portrait Landscape / Portrait
Response Time (G-to-G) 8ms 8ms
Connectivity
Input Video: VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2, Component/Composite, HDMI, Audio: Stereo Mini Jack Video: VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2, Component/Composite, HDMI, Audio: Stereo Mini Jack
Output Video: DisplayPort 1.2 (Loop-Out), Audio: Stereo Mini Jack Video: DisplayPort 1.2 (Loop-Out), Audio: Stereo Mini Jack
External Contro RS232C (In/Out) thru Stereo Jack, RJ45 RS232C (In/Out) thru Stereo Jack, RJ45
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 115W / 132W 130W / 154W
Power Consumption (Standby) < 0.5W < 0.5W
Environmental Conditions
Operating Temperature 0°C - 40°C 0°C - 40°C
Operating Humidity 10%~80% 10%~80%
Features
Key LED Slim Videowall LED Slim Videowall
Special Hardware Wi-Fi Module Embedded, SD Card Slot, Super Clear Coating, Temperature Sensor, Pivot Display, Clock Battery (80hrs Clock Keeping), Built in Speaker (10W x 2ch) Wi-Fi Module Embedded, SD Card Slot, Super Clear Coating, Temperature Sensor, Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker (10W x 2ch)
Software Magic Clone( to USB), Auto Source Switching & Recovery, Lamp Error Detection, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Built In MagicInfo Player S2, Video Wall (15X15), Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player Magic Clone( to USB), Auto Source Switching & Recovery, Lamp Error Detection, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Built In MagicInfo Player S2, Video Wall (15X15), Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player
Internal Media Player Cortex-A9 1Ghz Quad Core, 1.5GB DDR3, 8GB FDM, USB 2.0, Linux OS Cortex-A9 1Ghz Quad Core, 1.5GB DDR3, 8GB FDM, USB 2.0, Linux OS
VESA Standard Wall Mount Interface 400 x 400mm 400 x 400mm
Dimensions
Product Dimensions (without stand) 40.6" 23.0" x 1.2" 48.1" x 27.3" x 1.2"
Packaging Dimensions 43.7" x 26.3" x 5.1" 52.8" x 31.5" x 5.7"
Bezel Width 5.5mm 5.5mm
Weight
Product Weight 22 lbs. 29.3 lbs.
Shipping Weight 28 lbs. 38.6 lbs.
Service
Standard Warranty 3 Years On-Site (Parts / Labor / Backlight) 3 Years On-Site (Parts / Labor / Backlight)
Accessories
Included Quick Setup Guide, Warranty Card, Application CD, DP Cable, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, Application CD, DP Cable, Power Cord, Remote Controller, Batteries
Optional Mount WMN4270SD, WMN250MD, WMN4675MD (for Videowall W/M) WMN4270SD, WMN250MD, WMN4675MD (for Videowall W/M)
Optional Stand STN-L4055AD, STN-L4655E STN-L4055AD, STN-L4655E
Optional Media Player SBB-C, SBB-CD7, SBB-CQ7 SBB-C, SBB-CD7, SBB-CQ7
Green Management
Emission Standard EMC EMC
ENERGY STAR® 6.0 Compliant Yes Yes
RoHS Compliant Yes Yes
Packaging Recyclability Packing Materials Recyclable Packing Materials Recyclable
Connectivity
  1. RS232C In
  2. RS232C Out
  3. IR/Ambient Sensor In
  4. Audio In
  5. Audio Out
  6. SD Card Slot
  7. USB
  8. DVI In
  9. DisplayPort In
  10. HDMI In
  11. VGA In
  12. DisplayPort Out
  13. AV In
  14. IR Out
  15. RJ45 In
UE-D Series Connectivity
