Samsung UD22B - UD-B Series 21.5" Square Display
Nowadays, It’s Hip To Be Square.

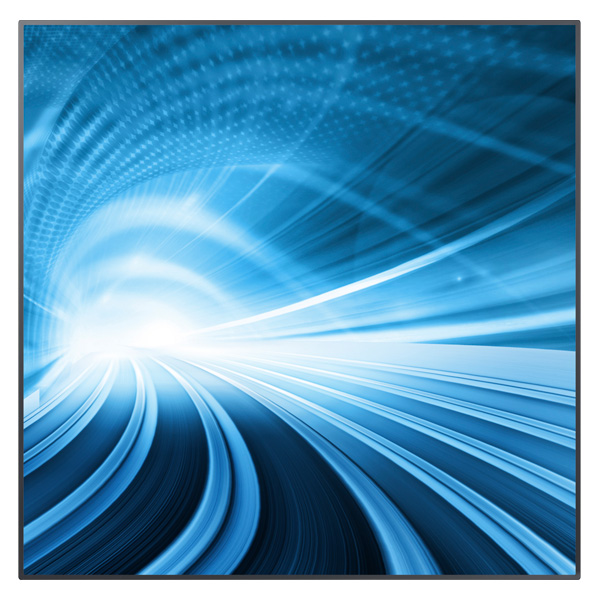

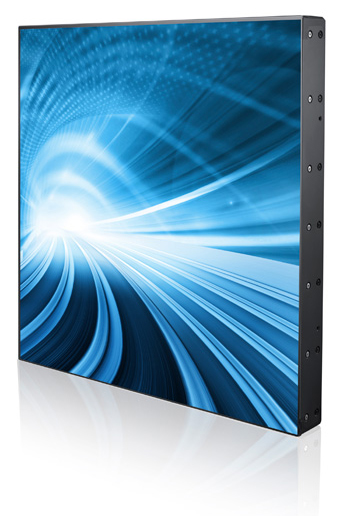

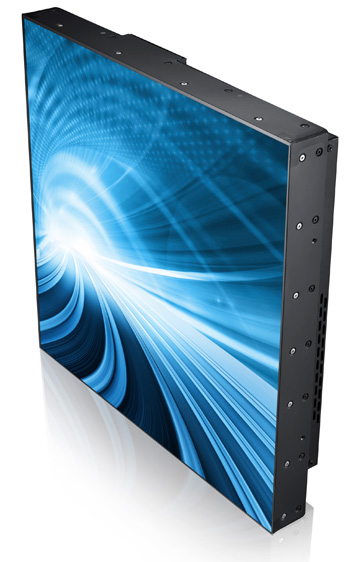

Samsung UD22B - UD-B Series 21.5" Square Display

This product is no longer available, please contact us for a replacement.

Overview:

Thinking outside the box is the new standard. That's why Samsung's distinctive square-shaped UD-B Series display offers an artistic way to showcase your business message. The 21.5" square ratio (1:1) screen lets you create a captivating video wall ideal for interactive point-of-sale and advertising exhibits. Experience the world’s first square display, creating the shape of things to come.

  • Dramatic Video Walls
  • Easily Manage Content
  • Reduced Operating Expenses
  • Powerful Optional Features

Features

Dramatic Video Walls

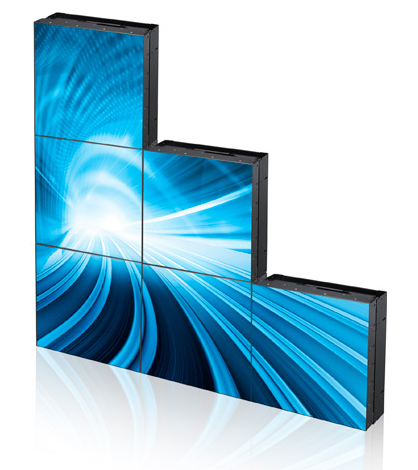

The UD22B can be configured in video walls up to 10 x 10 for strikingly different and artistic messaging that draws customer attention.

Easily Manage Content

Smart Scheduling enables video wall content control at all times with up to 3 programmable day/time calendars. The upgraded Multi Display Control allows control of multiple monitors through the embedded RS232C and RJ45 interfaces.

Reduced Operating Expenses

Highly efficient Direct-Lit LED backlighting technology produces high contrast levels for impactful messaging, but also generates less heat. That translates to reduced operating costs.

Powerful Optional Features

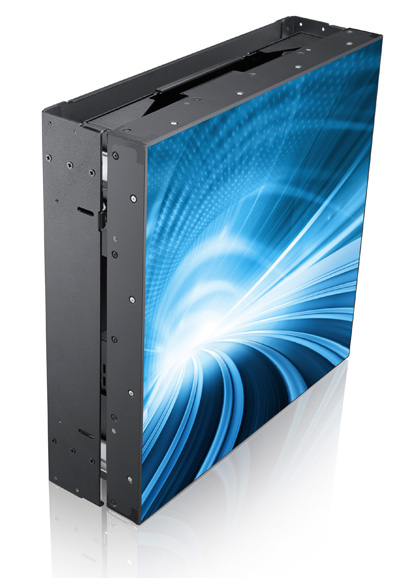

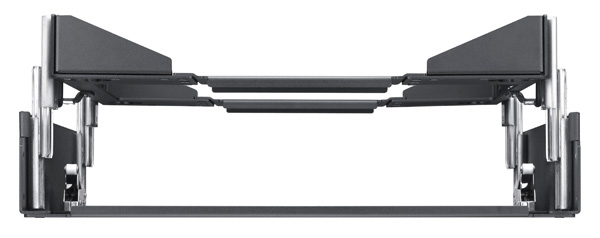

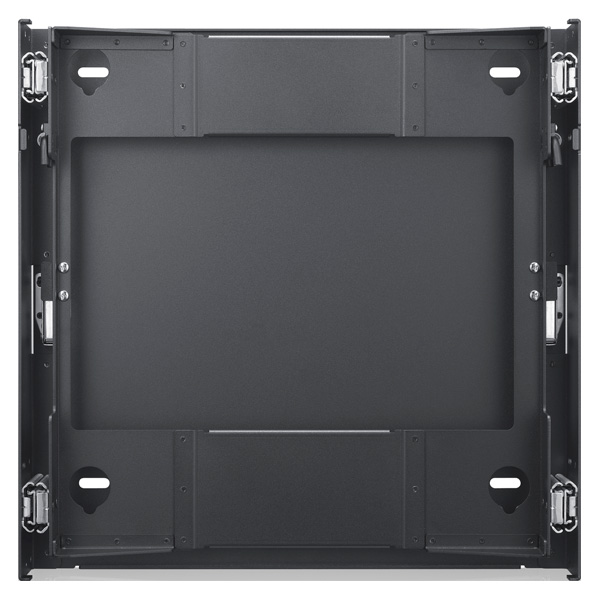

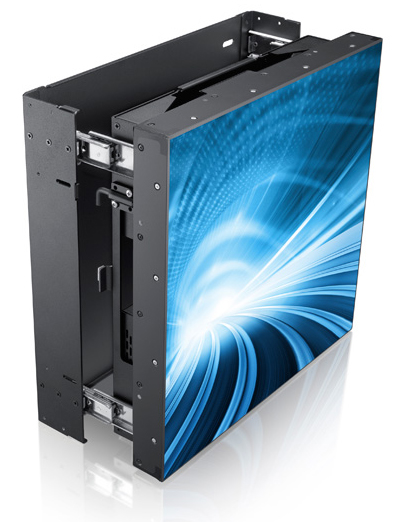

Provide even greater usability. Create video wall arrangements using the push and pull Wall Mount Kit. Create and control content on up to 100 displays with MagicInfo™ video wall software. Or increase PC functionality with the optional SBB-A PC module.

Specifications:


Samsung UD22B - UD-B Series 21.5” Square Display Specifications
Display
Screen Size 21.6" LED LCD
Panel Technology S-PVA (Direct Lit LED)
Resolution 960 x 960
Brightness 450 nits
Contrast Ratio (Typical) 4000:1
Viewing Angle (Horizontal/Vertical) 178˚/178˚
Response Time 8ms
Connectivity
Input DVI-D, DisplayPort, HDMI
Output DVI-D (Loop Out), Stereo Mini Jack
External Control RS232C (In/Out), RJ45
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 67W / 72W
Power Consumption (Standby) < 1W
Environmental Conditions
Operating Temperature 0°C - 40°C
Operating Humidity 10%~80% Non-Condensing
Features
Special Ultra Narrow Bezel with Square Aspect Ratio, Digital Daisy Chain (up to 100 Displays)
Integrated Tuner N/A
Media Player Type SBB-A
VESA Standard Wall Mount Interface 300 x 300mm
Dimensions
Product Dimensions (without stand) 15.5” x 15.5” x 3.2”
Packaging Dimensions 18.6" x 18.6" x 7.4"
Bezel Width 3.7mm (U/L), 1.8mm (R/B)
Weight
Product Weight 14.3 lbs.
Shipping Weight 16.9 lbs.
Service
Standard Warranty 3-Year Onsite Parts/Backlight/Labor
Accessories
Included Quick Setup Guide, Warranty Card, Application CD, Power Cord, DVI Cable, Remote Controller, Batteries, Panel Cover
Optional Mount WMN-22UDPD
Optional Stand N/A
Green Management
Emission Standard EMC
Energy Star 5.0 Compliant Yes
RoHS Compliant Yes
Packaging Recyclability Packing Materials Recyclable

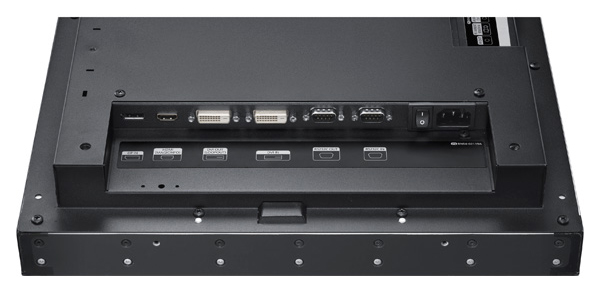

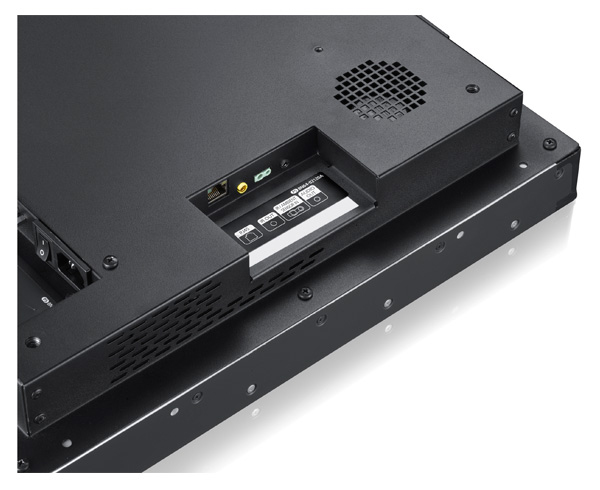

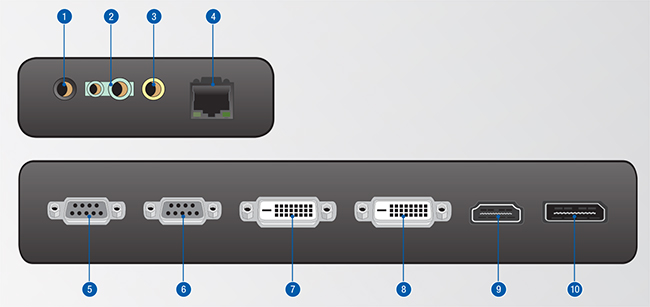

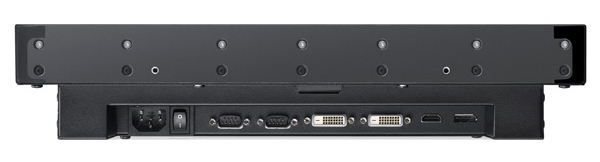

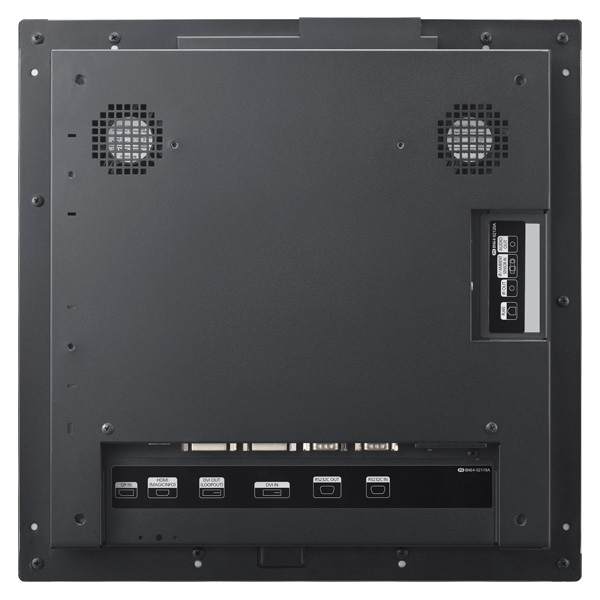

Connectivity
  1. Audio Out
  2. IR/Ambient Sensor In
  3. IR Out
  4. RJ45 LAN
  5. RS232C Out
  6. RS232C In
  7. DVI Out (Loop Out)
  8. DVI In
  9. HDMI In
  10. DisplayPort In
UD22B Connectivity

Documentation:

Download the Samsung UD22B Square Display Datasheet (.PDF)
