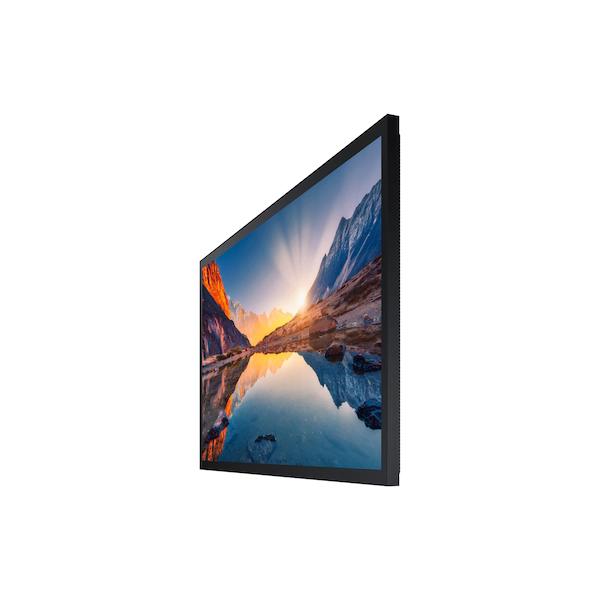

Samsung’s QMR-T Series touchscreen displays deliver a bright and responsive interactive screen so you can leverage a variety of content to create engaging experiences. Showcase the excitement of your brand, create endless aisles, and offer self-ordering kiosks and wayfinding. These commercial-grade displays are built to withstand the rigors of continuous public use and come with a 3-year onsite warranty.
These displays combine an embedded media player with MagicINFO—Samsung's leading-edge digital signage CMS platform—the powerful Tizen OS, multi-touch interactivity and a Full HD display into an all-in-one solution. Eliminate the need for an external player and enable a wide variety of apps.

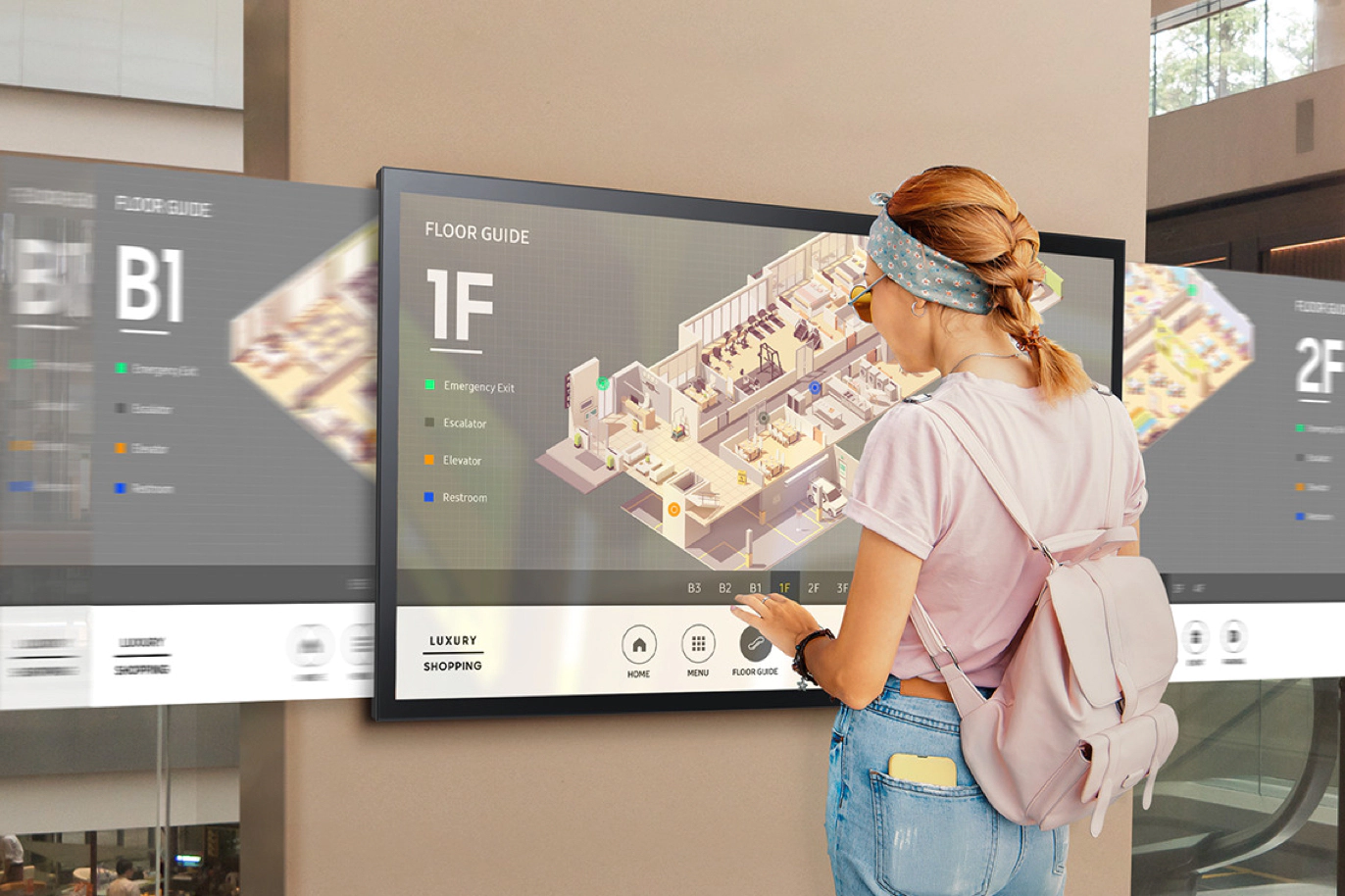

An exceptionally responsive capacitive touch functionality makes for an engaging and intuitive experience.
920 x 1080 resolution delivers sharp, Full HD images that capture attention.

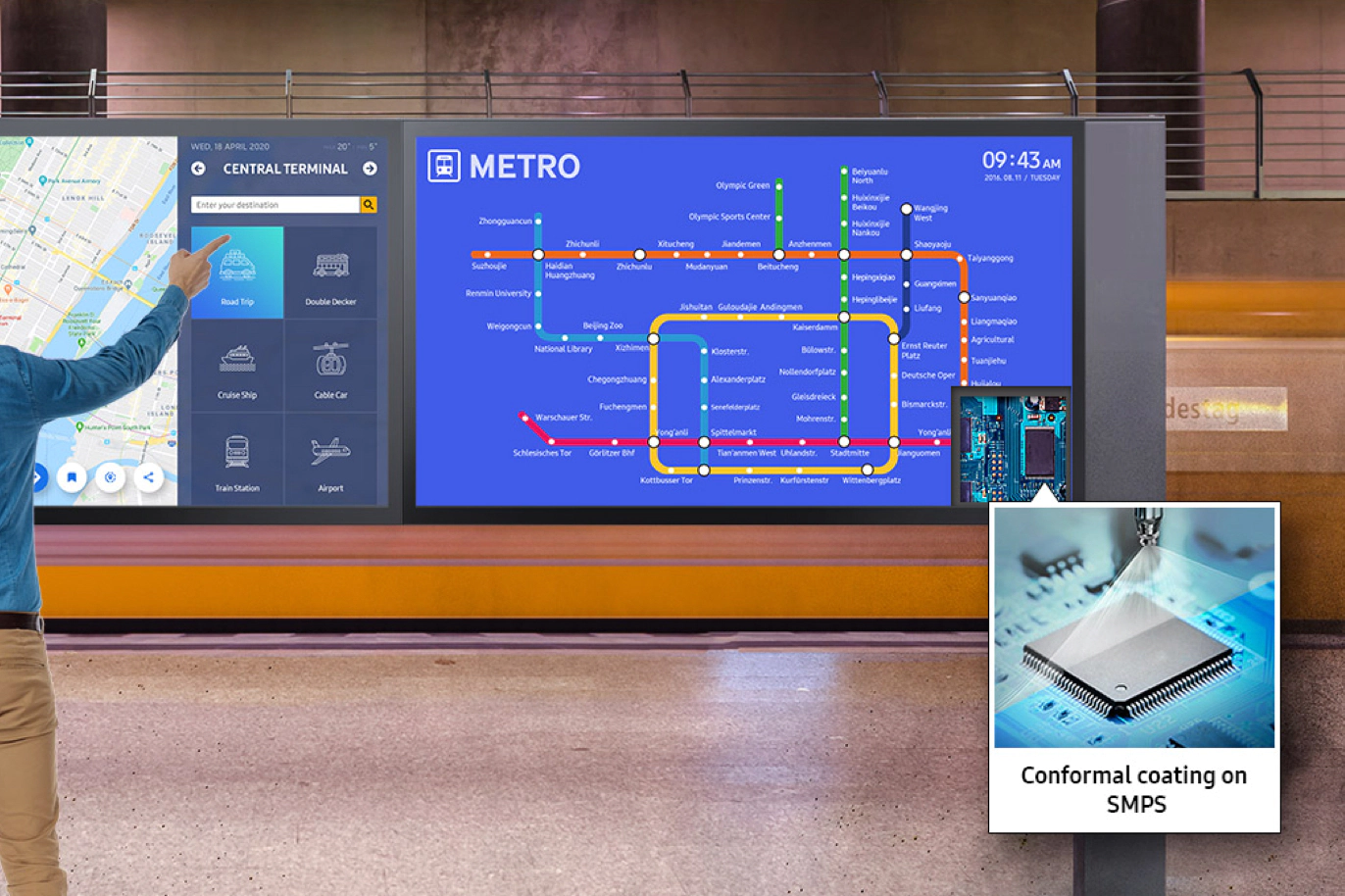

Samsung’s QMR-T Series has received the IP5X rating standard, helping to ensure efficient and reliable performance even in dusty environments to protect the display from repeated customer interactions. In addition, a conformal coating on the display provides longevity even in public spaces, and as a result, helps to save on the overall cost of operation.
Control content easily with an intelligently designed IR receiver. Instead of a single point of reception, QMR-T Series displays receive IR signals across their entire panels, making remote content control much easier and more reliable.
MagicINFO, our leading-edge digital signage CMS platform, makes content management easier, more flexible and more robust. Easily create content with the included templates. Use data capture tools to inform content creation and automated, targeted distribution. And manage it all from a single source.
|
Model |
QM32R-T |
QM43R-T |
QM55R-T |
||
|---|---|---|---|---|---|
|
Panel |
Diagonal Size |
Class |
32" |
43" |
55" |
|
Measured |
31.5" |
42.5" |
54.6" |
||
|
Type |
Edge LED BLU |
Edge LED BLU |
Edge LED BLU |
||
|
Resolution |
FHD (1920 x 1080) |
UHD (3840 x 2160) |
UHD (3840 x 2160) |
||
|
Pixel Pitch (mm) |
0.3638 x 0.3638 |
0.2451 x 0.2451 |
0.315 x 0.315 |
||
|
Active Display Area (mm) |
698.4 (H) x 392.85 (V) |
941.184 (H) x 529.416 (V) |
1209.6 (H) x 680.4 (V) |
||
|
Brightness (Typ.) |
300 (With Touch Glass), 400 (Without Touch Glass) |
400 (With Touch Glass), 500 (Without Touch Glass) |
400 (With Touch Glass), 500 (Without Touch Glass) |
||
|
Contrast Ratio (Typ.) |
5000:1 (Without Glass) |
5000:1 (Without Glass) |
4000:1 (Without Glass) |
||
|
Viewing Angle (H/V) |
178/178 |
178/178 |
178/178 |
||
|
Response Time (G-to-G) |
8ms (Typ.) |
8ms (Typ.) |
8ms (Typ.) |
||
|
Display Colors |
16.7M |
16.7M |
16.7M |
||
|
Color Gamut |
72% |
92% (DCI-P3, CIE 1976) |
92% (DCI-P3, CIE 1976) |
||
|
Operation Hour |
16/7 |
24/7 |
24/7 |
||
|
Haze |
2% (Without Glass) |
25% (Without Glass) |
25% (Without Glass) |
||
|
Display |
Dynamic C/R |
MEGA |
MEGA |
MEGA |
|
|
H-Scanning Frequency |
30 ~ 81kHZ |
30 ~ 81kHZ |
30 ~ 81kHZ |
||
|
V-Scanning Frequency |
48 ~ 75HZ |
48 ~ 75HZ |
48 ~ 75HZ |
||
|
Maximum Pixel Frequency |
594MHz |
594MHz |
594MHz |
||
|
Sound |
Speaker Type |
Built in Speaker (10W+10W) |
Built in Speaker (10W+10W) |
Built in Speaker (10W+10W) |
|
|

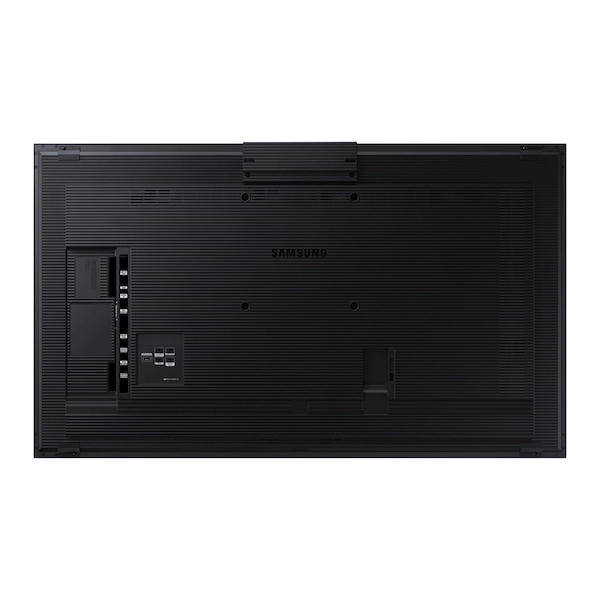

Connectivity |
INPUT |
RGB |
Display Port 1.2 (1) |
DVI-D, Display Port 1.2 (1) |
DVI-D, Display Port 1.2 (1) |
|
VIDEO |
HDMI 2.0 (2) |
HDMI 2.0 (2) |
HDMI 2.0 (2) |
||
|
HDCP |
HDCP 2.2 |
HDCP 2.2 |
HDCP 2.2 |
||
|
AUDIO |
HDMI |
Stereo mini Jack, DVI, HDMI |
Stereo mini Jack, DVI, HDMI |
||
|
USB |
USB 2.0 x 2 |
USB 2.0 x 2 |
USB 2.0 x 2 |
||
|
OUTPUT |
RGB |
HDMI 2.0 (Loop-out) |
HDMI 2.0 (Loop-out) |
HDMI 2.0 (Loop-out) |
|
|
VIDEO |
N/A |
N/A |
N/A |
||
|
AUDIO |
Stereo Mini Jack |
Stereo Mini Jack |
Stereo Mini Jack |
||
|
Power Out |
N/A |
N/A |
N/A |
||
|
USB |
N/A |
N/A |
N/A |
||
|
EXTERNAL CONTROL |
RS232C (in) thru stereo jack, RJ45 |
RS232C (in) thru stereo jack, RJ45 |
RS232C (in) thru stereo jack, RJ45 |
||
|
EXTERNAL SENSOR |
IR |
IR |
IR |
||
|
Tuner |
N/A |
N/A |
N/A |
||
|
Power |
Type |
Internal |
Internal |
Internal |
|
|
Power Supply |
AC 100 - 240 V ~ (+/- 10 %), 50/60 Hz |
AC 100 - 240 V ~ (+/- 10 %), 50/60 Hz |
AC 100 - 240 V ~ (+/- 10 %), 50/60 Hz |
||
|
Power Consumption |
Max [W/h] |
72 |
110 |
143 |
|
|
Typical [W/h] |
45 |
72 |
107 |
||
|
Rating [W/h] |
65 |
100 |
130 |
||
|
BTU (Max) |
245.7 |
375.1 |
487.63 |
||
|
Sleep mode |
0.5 |
0.5 |
0.5 |
||
|
Off mode |
N/A |
N/A |
N/A |
||
|
Mechanical Spec |
Dimension (mm) |
Set |
744.4 x 444.6 x 48.2 |
986.2 x 584.4 x 56.7 |
1253.8 x 734.6 x 56.7 |
|
Package |
872 x 565 x 133 |
1134 x 725 x 141 |
1421 x 884 x 165 |
||
|
Weight (kg) |
Set |
8.3 |
14.5 |
26.9 |
|
|
Package |
11.1 |
18.7 |
32.5 |
||
|
VESA Mount |
200 x 200 |
200 x 200 |
200 x 200 |
||
|
Protection Glass |
N/A |
N/A |
N/A |
||
|
Stand Type |
Foot Stand (Optional) |
Foot Stand (Optional) |
N/A |
||
|
Bezel Width (Top/Side/Bot) (mm) |
24.5 (U/D), 21.5 (L/R) |
26.0 (U/D), 21.0 (L/R) |
26.0 (U/D), 21.0 (L/R) |
||
|
Operation |
Operating Temperature |
0℃ ~ 40℃ |
0℃ ~ 40℃ |
0℃ ~ 40℃ |
|
|
Humidity |
10 ~ 80% |
10 ~ 80% |
10 ~ 80% |
||
|
Feature |
Key |
FHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0, Cap touch |
UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0, Cap touch |
UHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0, Cap touch |
|
|
Special |
H/W |
Temperature Sensor, Pivot Display, Clock Battery (168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x Rating, Wi-Fi/BT |
|||
|
S/W |
Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) |
||||
|
Internal player (Embedded H/W) |
Processor |
Cortex A72 1.7GHz Quad-Core CPU |
Cortex A72 1.7GHz Quad-Core CPU |
Cortex A72 1.7GHz Quad-Core CPU |
|
|
On-chip Cache Memory |
L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB |
L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB |
L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB |
||
|
Clock Speed |
1.7GHz |
1.7GHz |
1.7GHz |
||
|
Main Memory Interface |
2.5GB LPDDR4 1.5GHz 64bit |
2.5GB LPDDR4 1.5GHz 64bit |
2.5GB LPDDR4 1.5GHz 64bit |
||
|
Graphics |
Graphic resolution : 1920x1080, Output resolution : 3840 x 2160 (Scale up from graphic processing result.) |
||||
|
Storage (FDM) |
8GB (3.88GB Occupied by O/S, 4.12GB Available) |
8GB (3.88GB Occupied by O/S, 4.12GB Available) |
8GB (3.88GB Occupied by O/S, 4.12GB Available) |
||
|
Multimedia |
*Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG |
||||
|
IO Ports |
USB 2.0 |
USB 2.0 |
USB 2.0 |
||
|
Operating System |
Tizen 4.0 (VDLinux) |
Tizen 4.0 (VDLinux) |
Tizen 4.0 (VDLinux) |
||
|
Certification |
Safety |
60950-1 |
60950-1 |
60950-1 |
|
|
EMC |
Class B |
Class B |
Class B |
||
|
Environment |
ENERGY STAR 8.0, Epeat |
ENERGY STAR 8.0, Epeat |
ENERGY STAR 8.0, Epeat |
||
|
Security |
802.1 x ( WPA2 Enterprise ) : EAP-TLS, EAP-TTLS, EAP-PEAP |
||||
|
Accessories |
Included |
Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries |
|||
|
Optional |
Stand |
STN-L3240E |
STN-L4355F |
N/A |
|
|
Mount |
WMN4070SE |
WMN4070SE |
WMN4070SE |
||
|
Specialty |
CML400XK |
CML400XK |
CML400XK |
||
|
Media Player |
N/A |
N/A |
N/A |
||
Download the Samsung SMART Signage Small Display Series Datasheet (.PDF)
