Samsung QH55H - QH-H Series 55" Edge-Lit 4K UHD QLED Display
Make your message stand out with brilliant picture quality and realistic detail thanks to QLED quantum dot technology

Samsung QH65H - QH-H Series 65" Edge-Lit 4K UHD QLED Display

This product is no longer available. Please Contact Us for a replacement.



Overview:

Samsung's QH-H Series 4K UHD quantum dot displays deliver absolutely stunning image quality to help you showcase your business in the best possible light. They deliver more than one billion colors at 100% color volume and produce deep blacks, pristine whites and sharp hues for impactful content with rich, realistic detail. Configurable in portrait or landscape mode, installations can be customized to meet your specific business needs.

  • Accurate, true-to-life color thanks to QLED technology with more than one billion color variations available
  • Featuring Tizen 3.0 OS for enhanced graphic performance and content security
  • Reinforced display deters image retention and maintains consistent color integrity during extended use
  • Flexible with portrait and landscape configuration options combined with a virtually bezel-free design

Features:

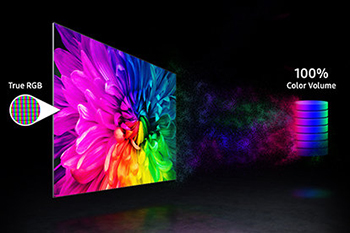

Showcase One Billion Colors with Optimal Precision

Showcase One Billion Colors with Optimal Precision

Samsung Quantum Dot technology enables our QH-H Series QLED displays to achieve 100% color volume and over a billion shades of color, with a peak brightness of up to 1,500 nits. Traditional LCD displays max out at around 70% color volume. With QLED, every message, every product and every logo is shown accurately, in crisp detail and true, rich color.

Bold Contrast, Day or Night

Bold Contrast, Day or Night

QLED enables these displays to reproduce deep, rich blacks, no matter how light or dark the scene is, and no matter if the viewing environment is brightly lit or dark. Precision Black technology automatically adjusts the brightness of every scene and works in tandem with the Ultra Black feature, which minimizes light reflection and significantly reduces glare.

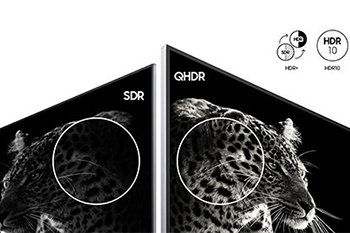

Magnificent Depth and Detail

Magnificent Depth and Detail

The true colors of Quantum Dot technology and the wide luminance range of HDR technology (High Dynamic Range) combine to produce deep blacks and pure whites, delivering exceptional detail where traditional LCD displays often get drowned out. HDR also plays a significant role in the full spectrum of color and detail these displays offer.

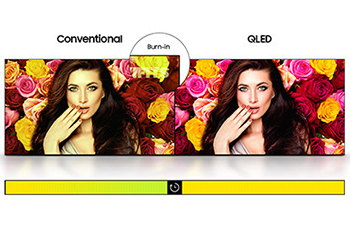

Captivate Your Audience without Interruption

Captivate Your Audience without Interruption

QH-H Series displays are engineered for long-term, 16/7 worry-free use and to minimize the chance of image retention. Whether you’re displaying messages that are fully or partly static—for example, a video with your logo—subsequent messages will be sharp, clear and fully rendered, without interfering residual imagery.

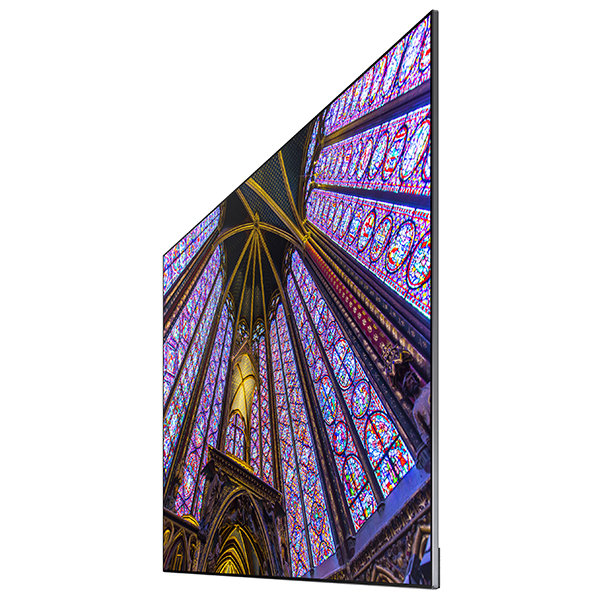

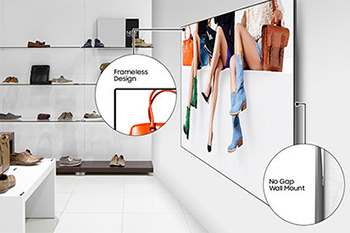

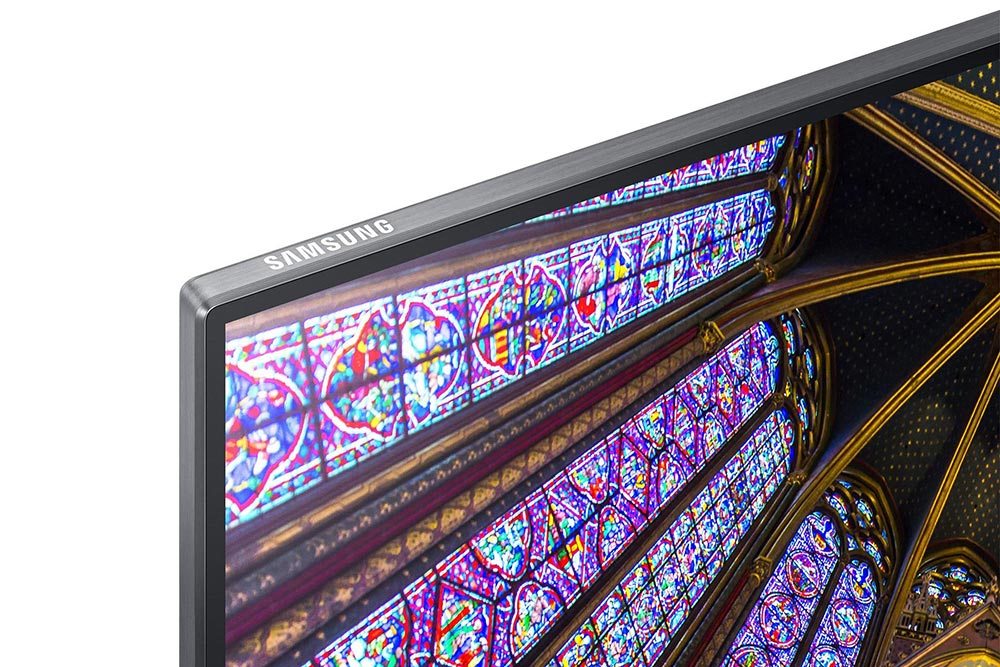

Immersive Frameless Design

Immersive Frameless Design

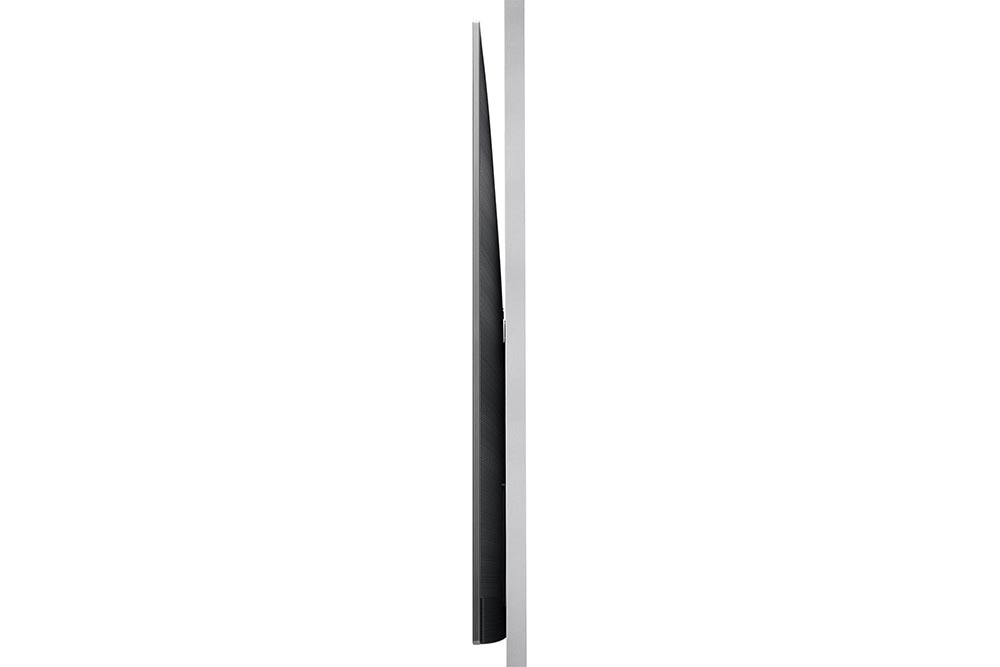

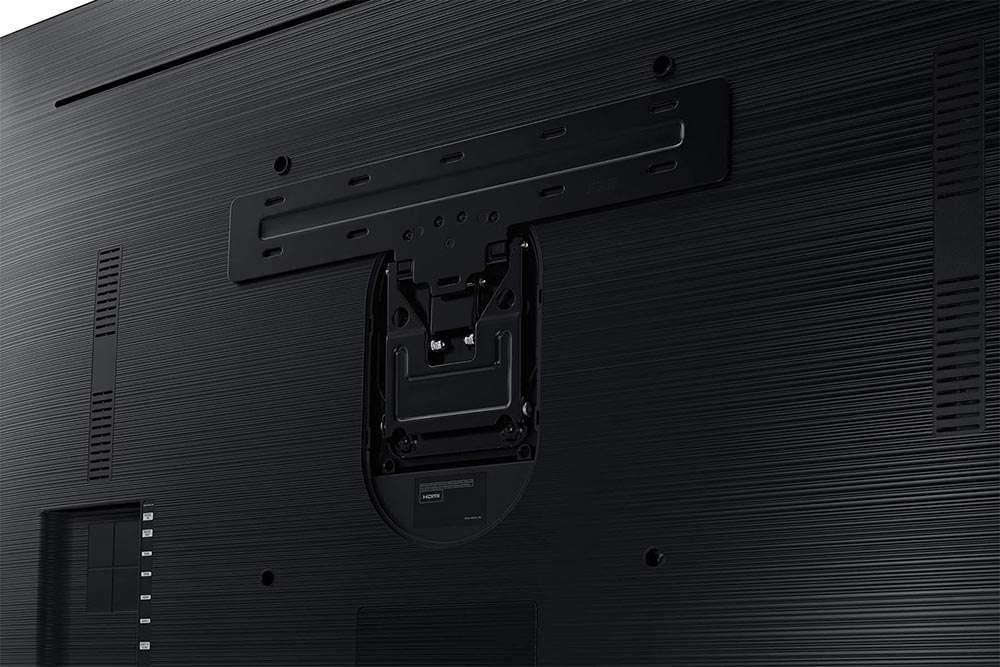

The sleek, sophisticated frameless design virtually eliminates distracting bezels to focus your customers' attention on what you're displaying. Plus, an optional no-gap wall mount (sold separately) allows you to install the displays close to the wall, making for a clean presentation that eliminates the visual distraction of a gap, while saving valuable retail space.

Easy Installation and Integration

Easy Installation and Integration

Samsung's Smart Signage Platform 5.0 and the powerful Samsung Tizen 3.0 operating system deliver a powerful, all-in-one signage solution. With an integrated media player and advanced graphic presentation features, you can display crystal-clear UHD content without the need for an external set-back box or PC. Plus a rigid three-layer security structure restricts file data access as needed.


Specifications:

Samsung QH55H - QH-H Series 55" Edge-Lit 4K UHD QLED Display Specifications
Display
Screen Size 55"
Panel Technology 120Hz E-LED BLU
Resolution 3840 x 2160 (4K UHD)
Aspect Ratio 16:9
Brightness Landscape : 600nit(peak 1,500nit),
Portrait : 500nit(peak 1,000nit) nit
Contrast Ratio (Typical) 6000:1
Contrast Ratio (Dynamic) Mega
Viewing Angle (H/V) 178º/178º
Response Time 6ms (Typ)
Sound
Speaker Type Built in Speaker (10W + 10W)

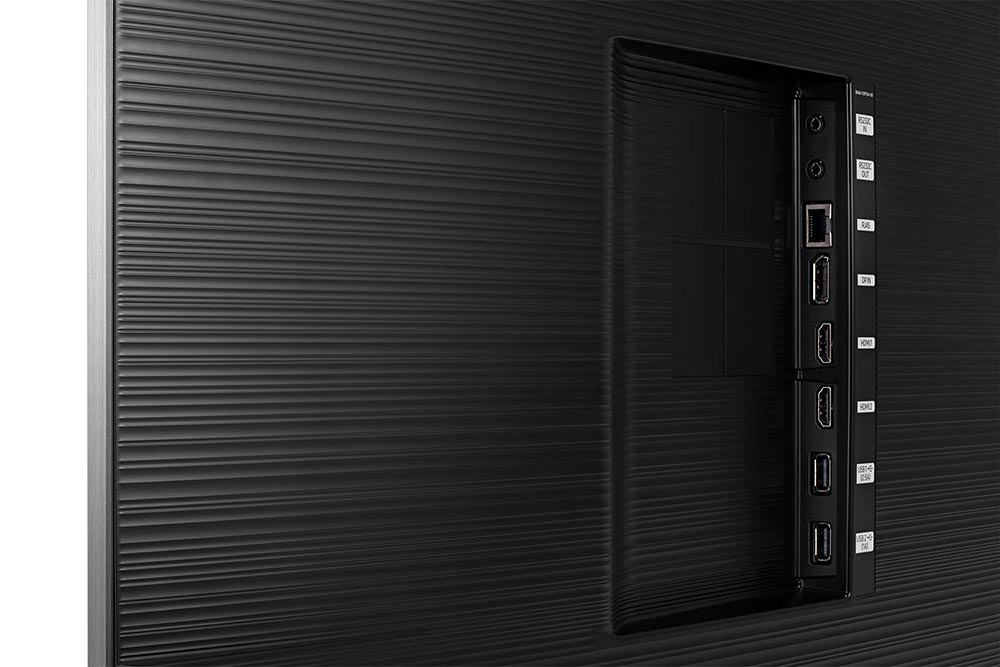

Connectivity
Input RGB: Display Port 1.2 (2)
Video: HDMI 2.0 (2)
HDCP: HDCP2.2
USB: USB 2.0 x 2
Output Audio: HDMI #1 ARC support
External Control RS232C (in/out), RJ45
Power
Type Internal
Power Supply AC 100 - 240 V (+/- 10 %), 50/60 Hz
Power Consumption
  • Max[W/h]: 198
  • Typical[W/h]: 122
  • BTU(Max): N/A
  • Sleep mode: less than 0.5W
  • Off mode :Less than 0.5W
Mechanical Spec
Product Dimensions 1225.2 X 697.8 X 44.0 mm
Packaging Dimensions 1420 x 819 x 170 mm
Product Weight 17.3 kg
Shipping Weight 23.9 kg
VESA Mount (mm) 400x400
Stand Type Foot Stand (Optional)
Bezel Width bezel-less
Environmental Conditions
Recommended Usage Hours 16/7
Operating Temperature 0℃~ 40℃
Operating Humidity 10~80%
Features
Key Features QLED Signage Display Slim & Light Signage with Built-in MagicInfo S5, SSSP 5.0
Special Features H/W : Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Wi-Fi/BT S/W : Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting)
Internal Player
  • Processor: Cortex A72 1.7GHz Quad-Core CPU
  • On-Chip Cache Memory: L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
  • Clock Speed: 1.7GHz Quad-Core CPU
  • Main Memory: Interface 3GB 3ch 64bit LPDDR4 1.6GHz
  • Graphics: 2D & 3D Graphic Accelerator Data Format : 32bpp Graphic resolution : 1920x1080 Output resolution : 3840x2160 (Scale up from graphic processing result.)
  • Storage (FDM): 8GB (3.88GB Occupied by O/S, 4.12GB Available)
  • Multimedia: Video Decoder - MPEG 1/2/4, H.263, H.264/AVC - UHD H.264/AVC, VC-1, AVS/AVS+, MVC - VP8, VP9, HEVC, JPEG Audio DSP(Decoder) - MPEG, AC3, AC4, DD, MP3 and etc
  • IO Ports: USB 2.0
  • Tizen 3.0 (VDLinux)
Certification
Safety 60950-1
EMC Class A
Accessories
Included Quick Setup Guide, Warranty Card,Power Cord, Remote Controller, Batteries
Optional
  • Stand: STN-L4655E
    Mount: WMN4270SD WMN-M11E (Slim W/M)
    Specialty: CLM450D
