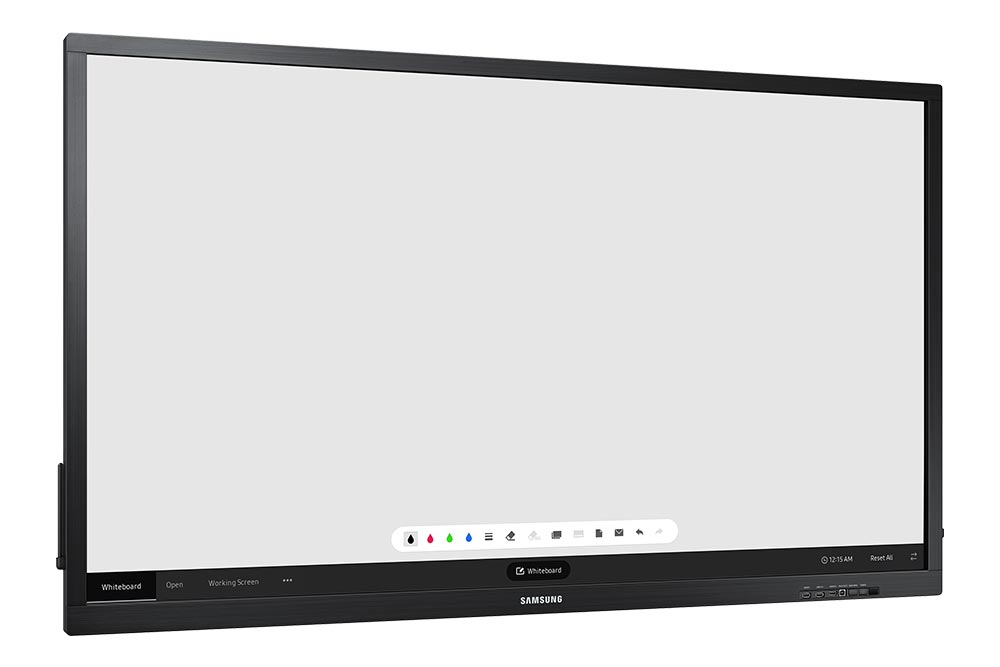

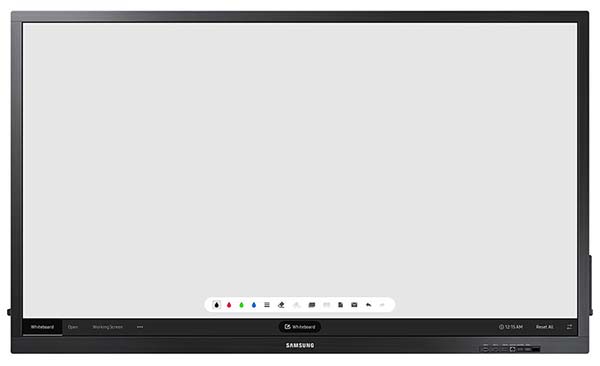

Samsung QB75H-TR - QBH-TR Series 75" Edge-Lit 4K UHD LED Interactive Display for Business and Education
Robust, all-in-one E-boards that feature enhanced touch technology and UHD picture quality

Samsung QB75H-TR - QBH-TR Series 75" Edge-Lit 4K UHD LED Interactive Display for Business and Education

This product is no longer available. Please Contact Us for a replacement.



Overview:

Samsung's QBH-TR Series interactive displays feature an interactive touch screen for ease and functionality combined with stunning 4K UHD resolution that facilitates presentations, decision-making and collaboration in any meeting. Work with incredible picture quality, smooth and fast computing, and responsive touch capabilities for an immersive multimedia experience.

  • Deliver a smooth, comfortable digital writing experience
  • Enable up to four participants to write simultaneously with any tool
  • Streamline efficient meeting facilitation via the embedded MagicIWB S5 solution
  • Alternate between content sources with an intuitive UX
  • Improve real-time interaction and introduce new ideas through advanced connectivity
  • Elevate content quality with crisp UHD resolution
  • Enhance meeting room sophistication through a stylish, pristine design

Today’s meeting rooms and classrooms require interactive capabilities that exceed those offered by projectors and whiteboards. Not surprisingly, more are turning to advanced displays that promote simultaneous collaboration. E-boards’ popularity, and revenue, only is expected to grow furtherin the nearfuture.

Samsung’s QBH-TR e-boards offer a versatile, all-in-one arena for improved collaboration. Enhanced touch technology, the intuitive MagicIWB S5 solution and UHD picture quality come togetherto boost productivity and collaboration by facilitating engaging, efficient interaction.

Features:


Revitalize Productive Collaboration

Revitalize Productive Collaboration

QBH-TR e-boards offer a versatile, all-in-one arena for improved collaboration. Enhanced touch technology, the intuitive MagicIWB S5 solution and UHD picture quality come together to boost productivity and collaboration by facilitating engaging, efficient interaction.

Enhance Touch, Enhance Capacity

Enhance Touch, Enhance Capacity

Leverage heightened touch functionality for a smooth and versatile digital writing experience. Up to four users can write simultaneously using the provided pen or virtually any other tool.


Elevate Collaboration Quality

Elevate Collaboration Quality

The embedded MagicIWB S5 solution facilitates discussion management and organization with an intuitive interface for quick access to vital collaborative functionalities such as screen mirroring and real-time notation saving.

Switch Sources Seamlessly

Switch Sources Seamlessly

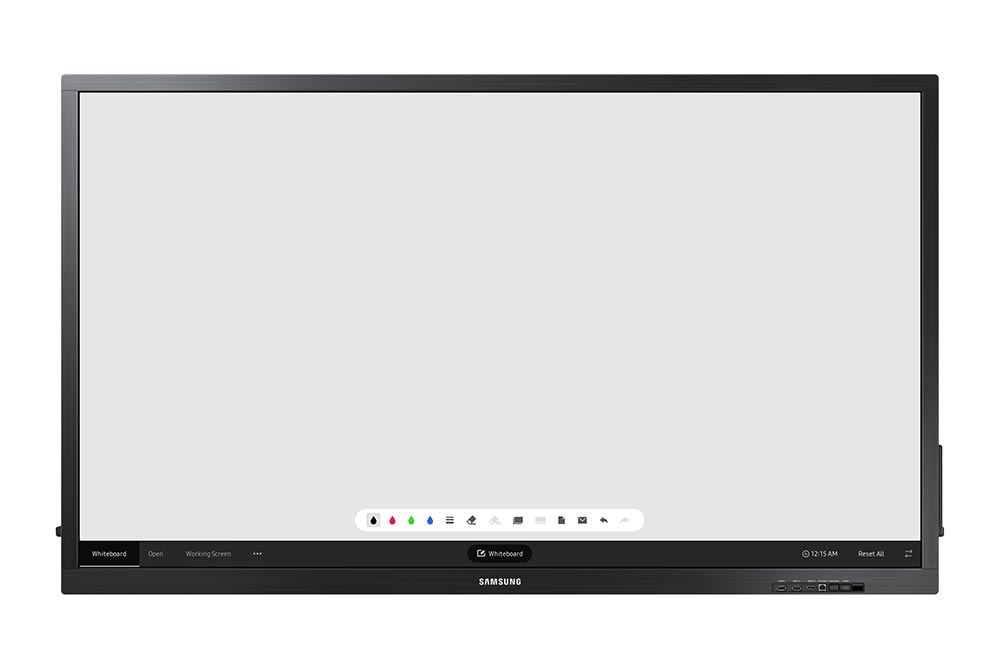

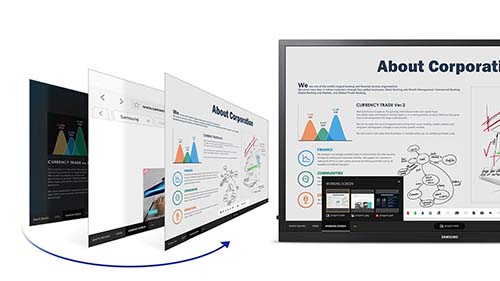

Through the Working Screen function, users can quickly switch between multiple screens, such as the whiteboard, internet browser and connected input sources, with just a few touches.

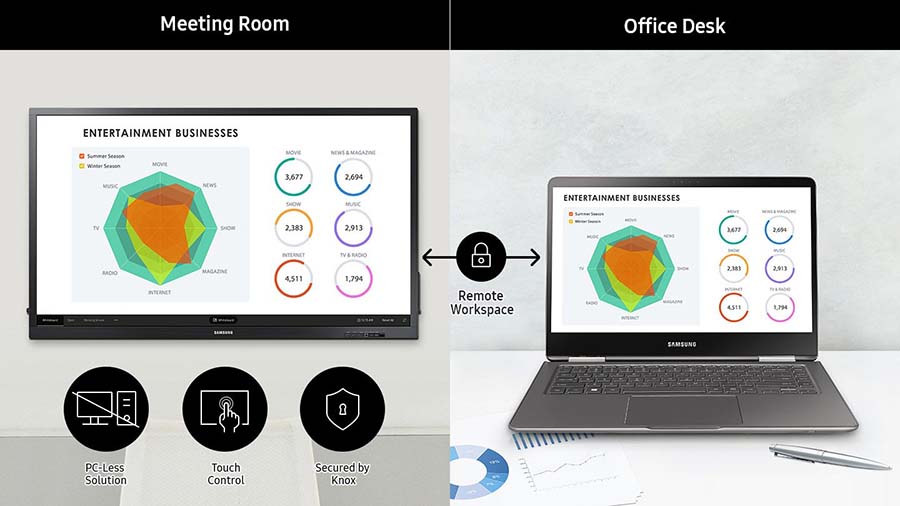

Retrieve and Control Content Remotely

Retrieve and Control Content Remotely

Pull and edit content on remote laptops directly through the central screen utilizing touch functionality. The powerful Knox system secures the Remote Workspace connection to protect against information leakage and meddling.


Connect with Convenience

Connect with Convenience

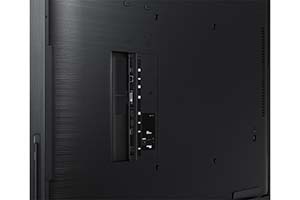

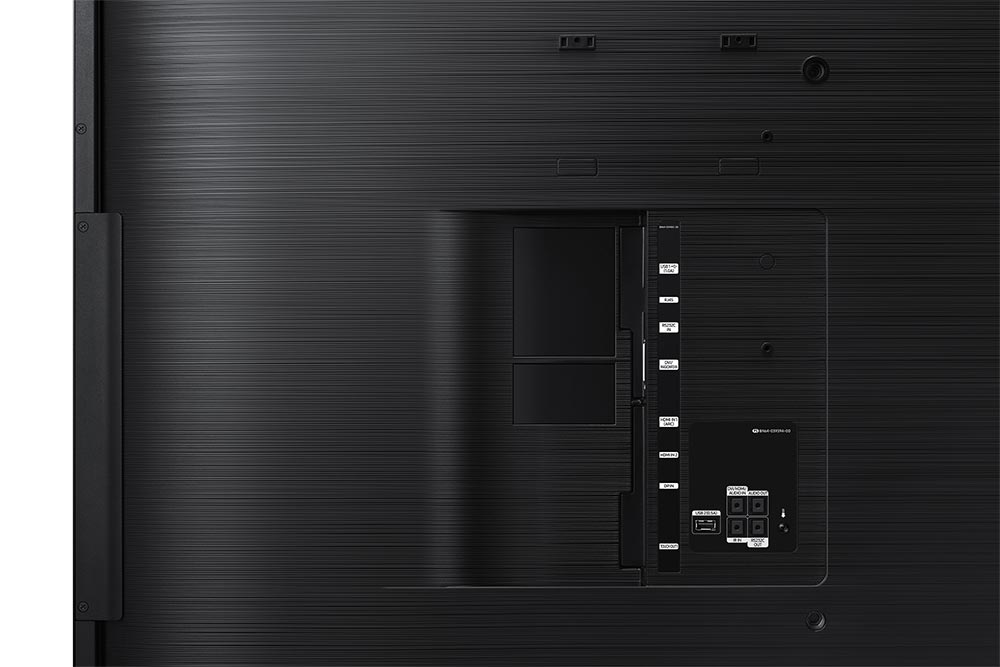

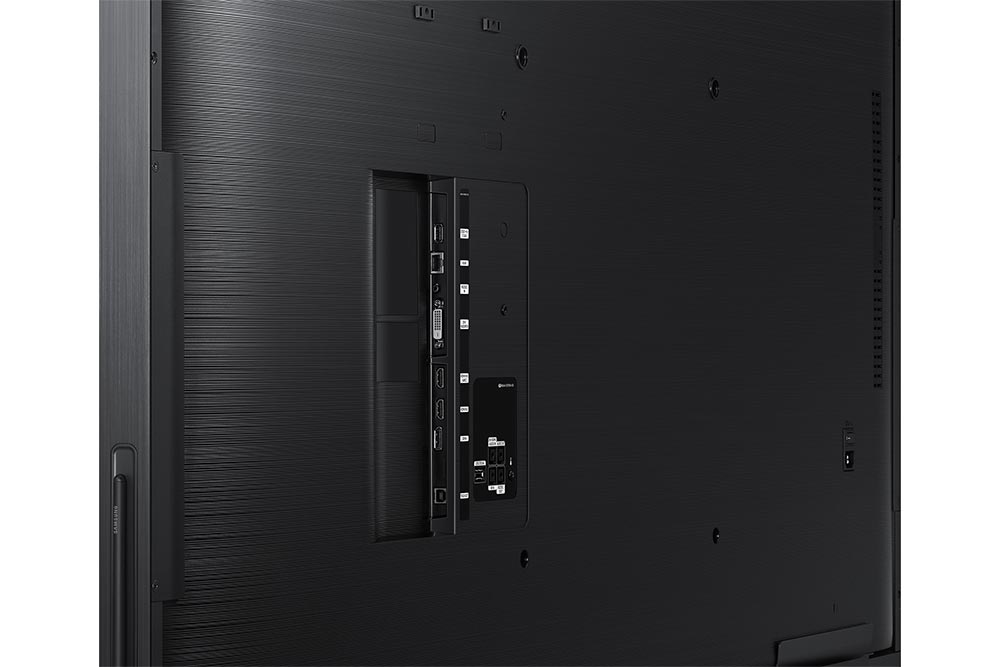

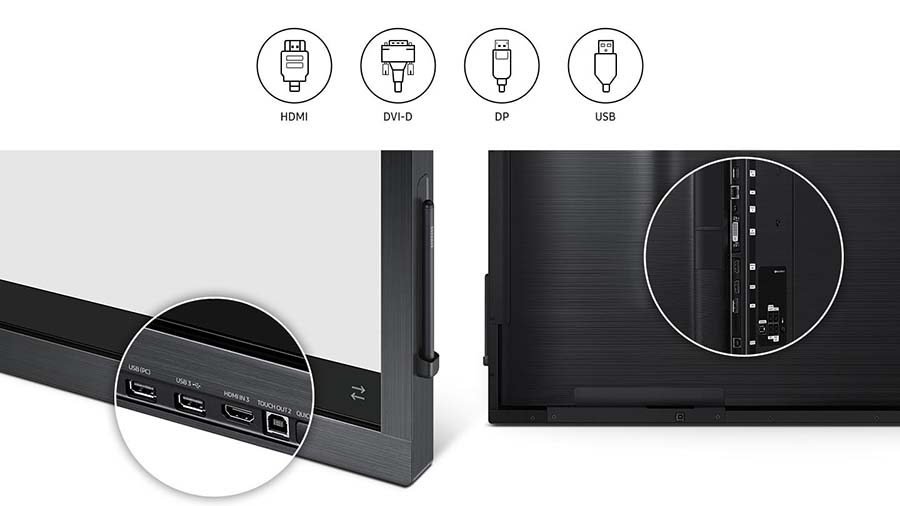

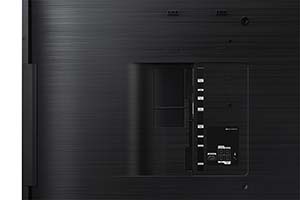

Each e-board offers a wide range of connections including HDMI, DVI-D, DP and USB ports, where users can load, share and revise content directly from their personal devices.



Amplify Visual Presentation

Amplify Visual Presentation

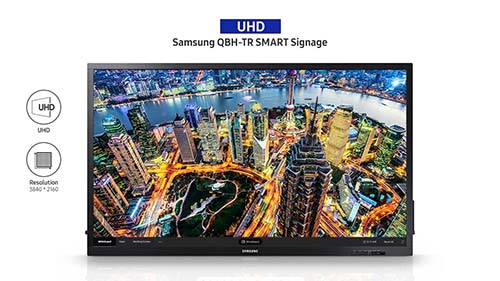

Bring collaborative ideas to life through advanced UHD picture quality. Through ultra-high resolution, ensure all notations and introduced content are clear and legible for every participant.

Maintain Organization with Style

Maintain Organization with Style

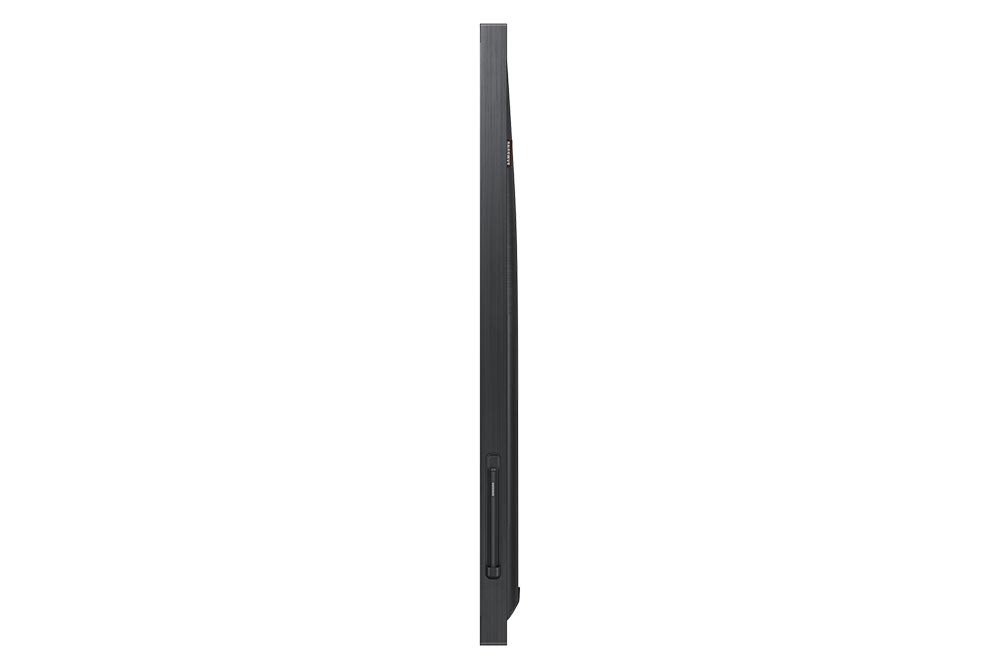

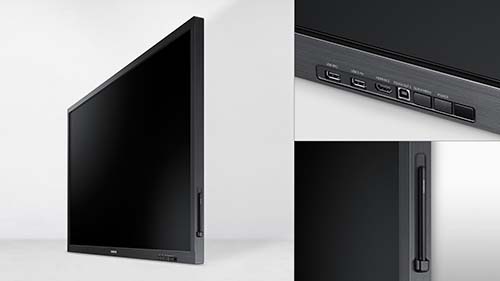

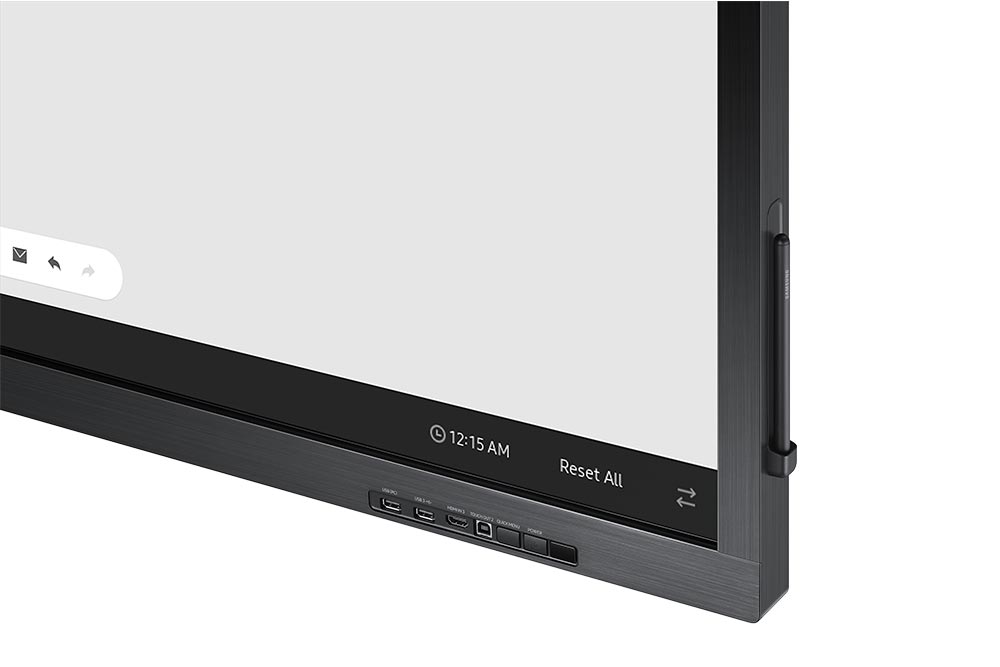

Drive more organized collaboration with a sleek, sophisticated design. The magnetic side pen holder and frontal connection ports keep needed functions within reach, without the mess.


Specifications:


Samsung QB75H-TR - QBH-TR Series 75" Edge-Lit 4K UHD LED Interactive Display Specifications
Display
Screen Size 75"
Panel Technology 120Hz Direct LED
Resolution 3840 x 2160 (4K UHD)
Pixel Pitch (mm) N/A
Active Display Area (mm) N/A
Brightness (Typ.) 250 nit
Contrast Ratio Mega
Viewing Angle (Horizontal/Vertical) 178° / 178°
Response Time (G-to-G) 8ms
Display Colors N/A
Color Gamut N/A
Haze N/A
Sound
Speaker Type Built in Speaker (10W x 2)(Down Firing w/Bass Reflex)
Connectivity
Input
  • RGB: N/A
  • Video: HDMI Rear1, HDMI Rear2 (ver 2.0), HDMI Front3 (ver 1.4), DVI-D, DP
  • HDCP: N/A
  • Audio: N/A
  • USB: USB 1, 2 (Rear), USB 3 (Front), PC USB (Front)
Output
  • Audio: Audio
  • Touch Out: Touch Out 1 (Rear), Touch Out 2 (Front)
  • External Control: RS232C(in/out) thru stereo jack, RJ45, Wi-Fi
  • External Sensor: IR Sensor (Display Control)
Touch
Type IR (Infra Red)
# of Drawing 4 drawing (SoC), 10 drawing (External Windows PC)

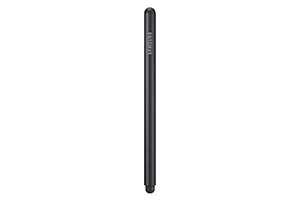

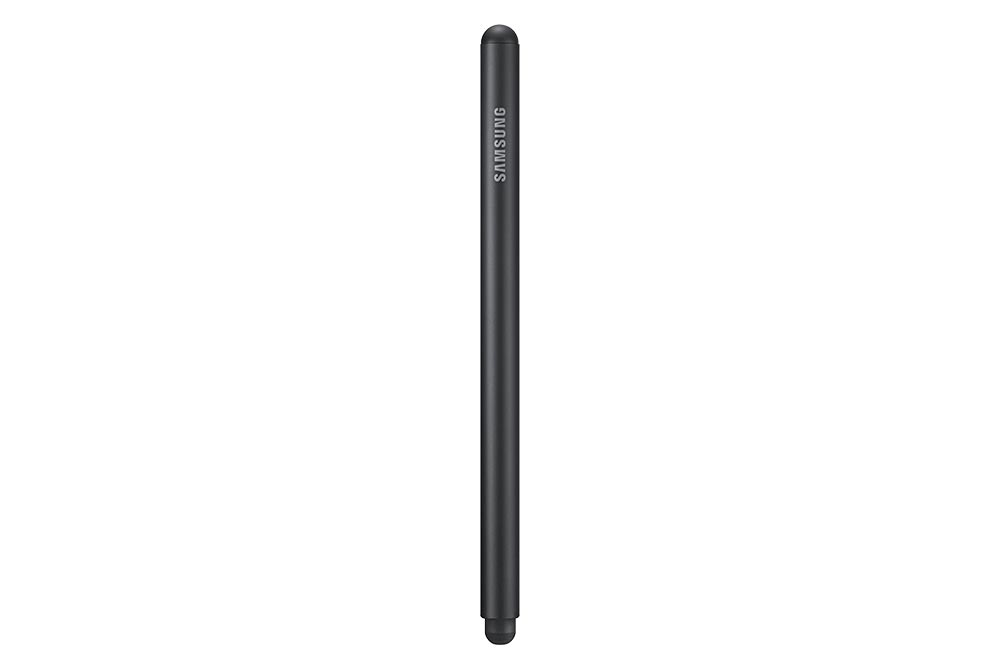

Touch Pen Type Passive Pen
Object Recognition Range 8mm
Touch Response Time '7ms
Power
Type Internal
Power Supply AC 100~240V 50/60Hz
Power Consumption
  • Max[W/h]: N/A
  • Energy-saving[W/h]: '150(Max 165) 370(Max 407)
  • Typical[W/h]: 115 265
  • Stand-by(Max): 0.5
Mechanical Spec
Product Dimensions 1741.5 X 1012.1 X 86.8 mm
Packaging Dimensions 1865 X 467 X 1152 mm
Product Weight 54.8 kg
Shipping Weight 68.4 kg

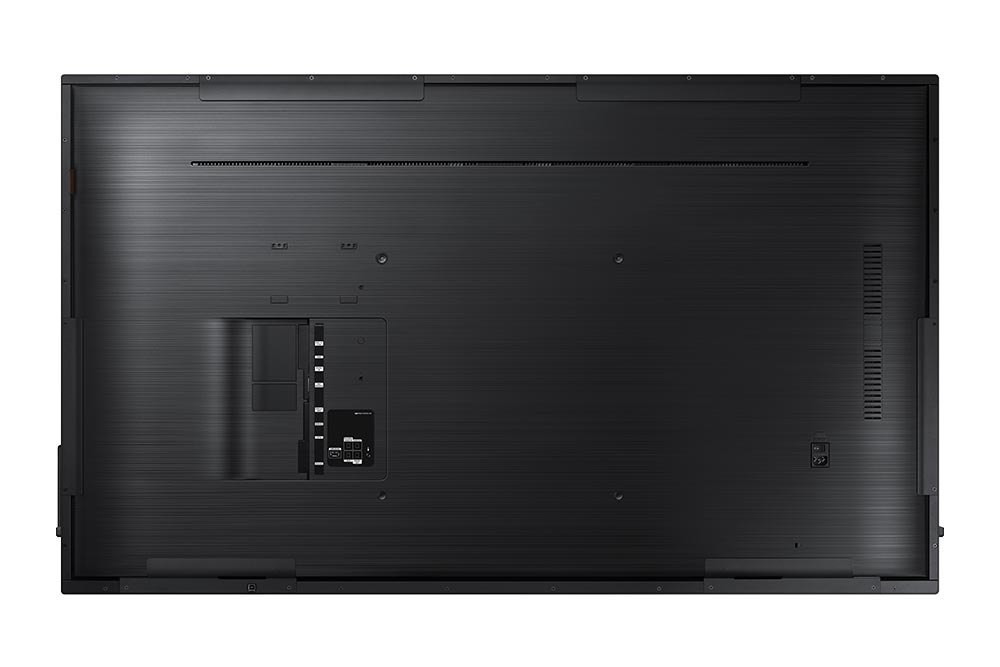

VESA Mount (mm) 400 X 400
Protection Glass Yes
Stand Type Wall Mount
Power Cable Length 3m
Accessory Pen Holder
Environmental Conditions
Recommended Usage Hours 16/7
Operating Temperature 0°C - 40°C
Operating Humidity 10%~80%
Features
Key Features Slim & Light LFD with Built-in MagicInfo Player S5, SSSP
Special Features H/W : Super Clear Coating, Temperature Sensor, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded S/W : MagicIWB S5
Internal Player
  • Processor: Cortex A72 1.7GHz Quad-Core CPU
  • On-Chip Cache Memory: L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
  • Clock Speed: 1.7GHz Quad-Core CPU
  • Main Memory Interface: 3GB 3ch 64bit LPDDR4 1.6GHz
  • Graphics: Graphic resolution : 2D & 3D Graphic Accelerator Data Format : 32bpp Output resolution : 3840x2160p
  • Storage (FDM): 8GB (3.88GB Occupied by O/S, 4.12GB Available)
  • Multimedia: Video Decoder - MPEG 1/2/4, H.263, H.264/AVC - UHD H.264/AVC, VC-1, AVS/AVS+, MVC - VP8, VP9, HEVC, JPEG Audio DSP(Decoder) - MPEG, AC3, AC4, DD, MP3 and etc
  • IO Ports: USB 2.0
  • Tizen 3.0 (VDLinux)
Certification
Safety N/A
EMC N/A
Accessories
Included Passive Pen, Power Cable
Optional
  • Mount: WMN6575SE
  • Specialty: New MagicIWB S5 UX
