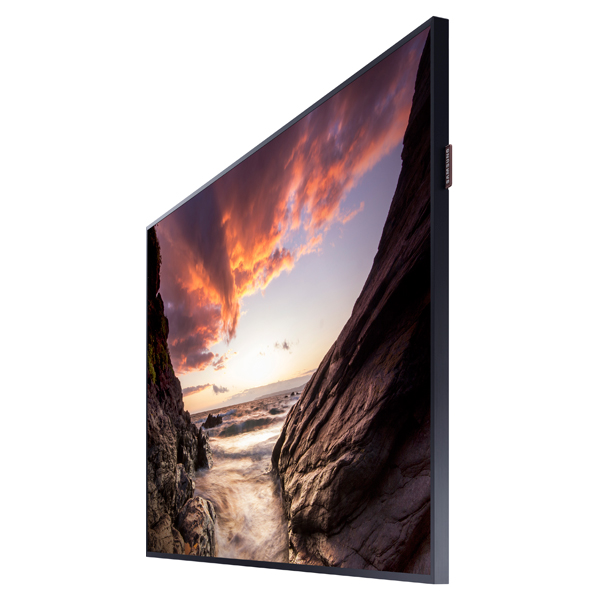

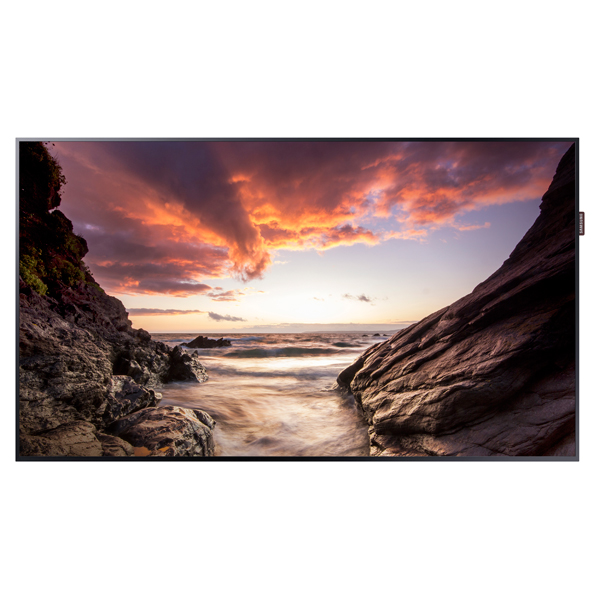

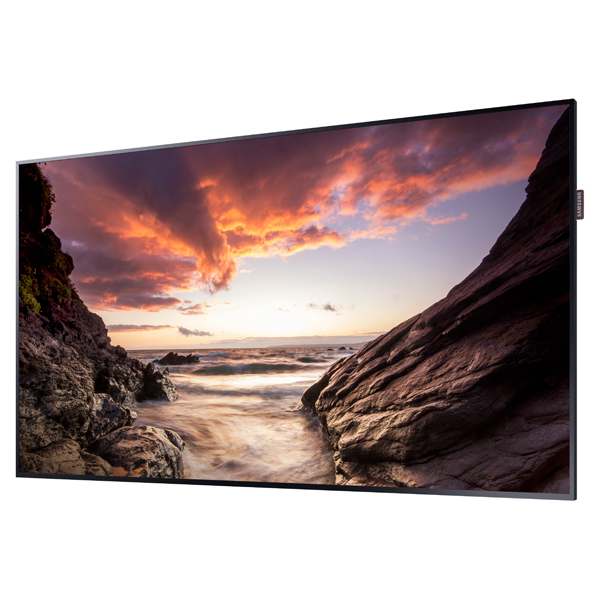

Samsung PM49F - PM-F Series 49” Edge-Lit LED Display
High brightness commercial displays feature an ultra-slim and narrow design
Samsung PM-F Series high brightness commercial displays feature an ultra-slim and narrow design. They're built for 24/7 run-time and have an embedded System-on-Chip (SoC) media player for simple remote content management. The non-glare panel offers improved visibility, plus IP5X certified dust protection allows for smooth installation.
- Ultra-slim, ADA-Compliant profile of just 1.1" chassis depth and 6.9mm bezel width
- Next gen Smart Signage Platform (SSP) 4.0 powered by Tizen OS for powerful, streamlined 24/7 remote content management
- Non-glare, high brightness panel offers improved visibility in bright ambient light
- IP5X certified dust protection provides proven durability for smooth installation without the need for additional housing

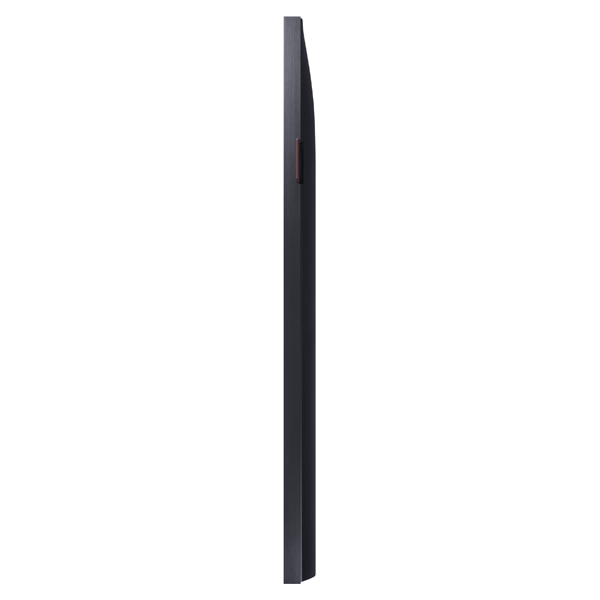

Ultra-Slim, ADA-Compliant Profile of Just 1.1”
The PM-F Series features an ultra-thin 6.9mm bezel and 1.1" chassis depth for an elegant, sophisticated look. And they’re ADA-compliant.
System-on-Chip Platform for Simple Remote Content Management
Powered by an embedded System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined digital signage solution, with digital signage software like MagicInfo T for PC-less content creation, scheduling and playing and remotely managing content.

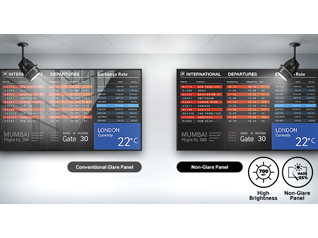

Non-Glare, High Brightness Panel for Improved Visibility
The non-glare, high brightness panel features 700nit brightness to improve visibility of your message in bright ambient light.

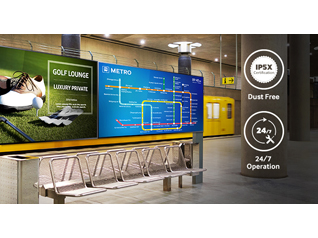

Built for 24/7 Use & IP5X Certified for Dust Protection
These displays are built for 24/7 continuous use and are proven durable with IP5X certified dust protection. So you can install your signage smoothly in dusty environments without the need for additional housing, while meeting around the clock operating requirements in venues ranging from retail stores and public spaces to Command & Control facilities.

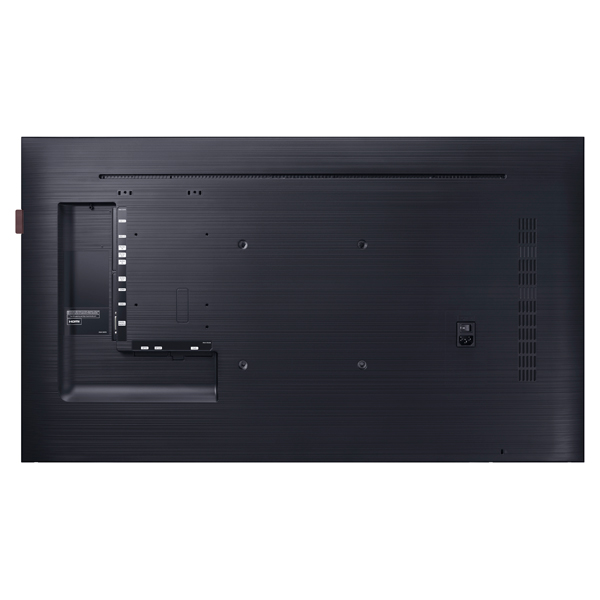

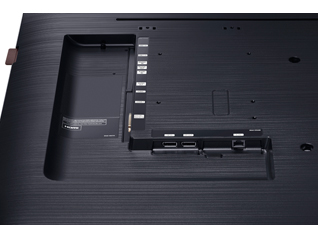

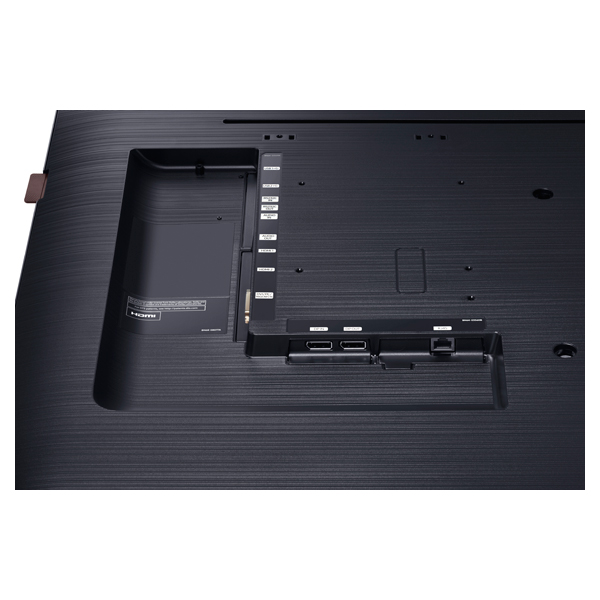

Discover versatile connectivity options to display a full range of exceptional content that speaks to your audience. Connections include DVI-I, Display Port 1.2, HDMI, USB 2.0, RS232C/RJ45 and more.
Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.
|Samsung PM49F - PM-F Series 49” Edge-Lit LED Display Specifications|
|Panel Technology||60Hz E-LED BLU|
|Contrast Ratio (Typical)||5,000:1|
|Viewing Angle (H/V)||178º/178º|
|Input||RGB:DVI-I(D-Sub Common), Display Port 1.2 (2)
VIDEO: HDMI x2
AUDIO: Stereo Mini Jack
USB: USB 2.0 x2
|Output||Audio: Stereo Mini Jack|
|External Control||RS232C(in/out) thru Stereo Jack, RJ45|
|Power Supply||AC 100 - 240 V~ (+/- 10 %), 50/60 Hz|
|Power Consumption (Standby)||less than 0.5W|
|Operating Temperature||0℃~ 40℃|
|Media Player Type||Cortex-A12 1.3GHz Quad Core, 2.5GB DDR3, 8GB FDM, USB 2.0, Tizen 2.4 (VDLinux)|
|Plug & Play||Yes|
|Built-In Speakers||10W x2|
|Without Stand (W x H x D)||43" x 24.5" x 1.1"|
|Standard Warranty||3yr Onsite (Parts/Labor/Backlight)|
|Included in Box|
|Included in Box||Quick Setup Guide, Regulatory Guide , Warranty Card, Power Cord, Remote Controller, Batteries, RS232C(IN) adapter, Cover Jack|
|Optional Wall Mount Kit||WMN4270SD|
|Optional Media Player||SBB-DA / SBB-DI|
|ENERGY STAR® Certified||ENERGY STAR 7.0|
|Packaging Recyclability||Packing Materials Recyclable|
|Operating Temperature||0℃~ 40℃|
