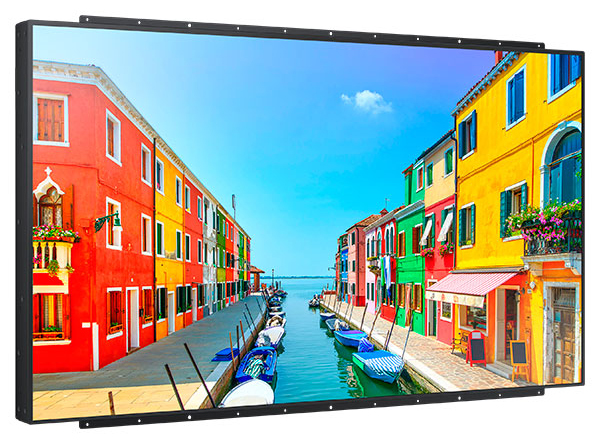

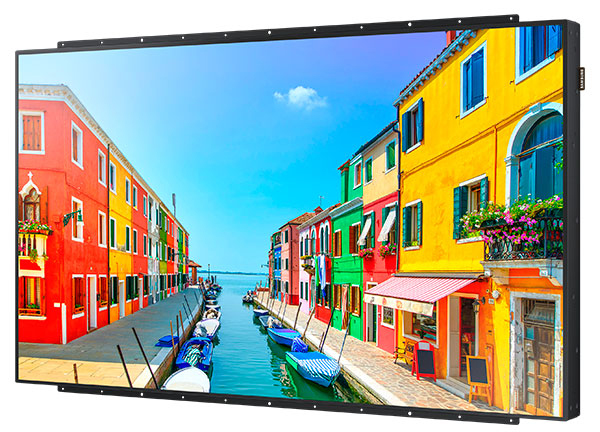

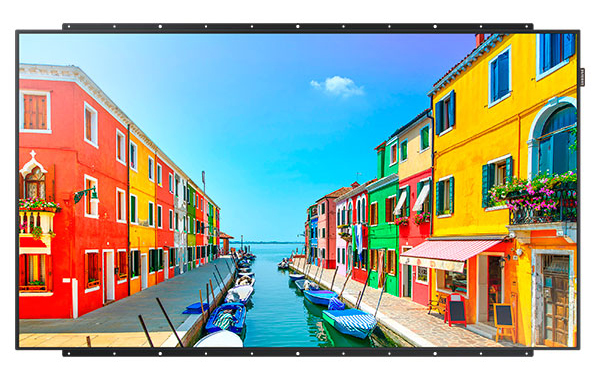

Samsung OM46D-K - OMD-K Series 46" High Brightness Display
Featuring All-Weather Durability When Installed in a Customized Housing.

Samsung OM46D-K - OMD-K Series 46" High Brightness Display

This product is no longer available, please contact us for a replacement.


Samsung OMD-K Series High Brightness Displays provide easily readable text and bright graphics in high ambient light environments and outdoor applications, along with all-weather durability when installed in a customized housing.* And with our SMART Signage Platform, you can manage your content without external devices.

  • Featuring All-Weather Durability When Installed in a Customized Housing*
  • LED Backlit Panel, SMART Signage Platform and MagicInfo Software
  • Connectivity Options Including VGA, Display Port, HDMI, DVI, Embedded Wi-Fi, RS232C, RJ45 LAN and an SD Card Slot
  • 3-Year Onsite Warranty and 24/7 Operating Runtime


High Brightness

At 2500 nits, our OMD-K Series LED displays deliver high brightness for excellent legibility and visibility, even in high ambient light environments.

Handle Outdoor Locations and High Ambient Light

These displays provide easily readable text and bright graphics in high ambient light and outdoor locations. With the included panel kit for installing the display in a custom-built enclosure, they can fully perform in heat, cold, rain, snow and dust.* VESA compliance allows for easy mounting inside the custom enclosure.

Circular Polarizing Technology

Samsung’s circular polarizing technology allows for viewing content on the display while wearing polarized sunglasses.

SMART Signage Platform

SMART Signage Platform offers a fully embedded solution that eliminates the need for additional external devices. System on Chip (SoC) delivers media player functionality, and content is easily controlled through Samsung MagicInfo software.

Flexible Connectivity

Get access to content from a variety of sources. Connections include PC (VGA), Digital (Display Port, HDMI and DVI), embedded Wi-Fi, RS232C for external control capability and an SD card slot.

Commercial Reliability

Built to handle 24/7 continuous operation, you’ll be able to deliver impactful messaging to your audience around the clock, while a 3-year onsite warranty secures your investment and peace of mind.

Perfect for Various Industries

Samsung OMD-K Series High Brightness Displays are perfect for transportation hubs, banking offices, retail storefront windows, sports arenas, convention centers, drive-through menu boards and many more applications.

*Outdoor environment requires custom designed weatherproof enclosure.


Samsung OM46D-K - OMD-K Series 46" High Brightness Display Specifications
Screen Size 46"
Brightness 2,500 nits
Panel Technology Direct Lit
Contrast Ratio (Typical) 5,000:1
Resolution 1920x1080
Viewing Angle (H/V) 178°/178°
Aspect Ratio 16:9
Response Time 8ms

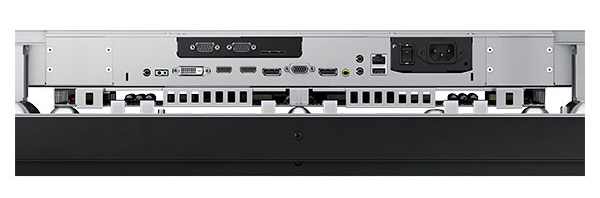

Input VGA (D-sub 15 pin), DVI-D, Display Port 1.2 HDMI (2), Component/Composite, Stereo Mini Jack
Output Display Port 1.2 (Loop-out) Stereo Mini Jack
External Control RS232C(In/Out), RJ45
Sensor Detachable Type (IR, Ambient)
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 300
Power Consumption (Standby) < 1W
Environmental Conditions
Operating Temperature 32ºF ~ 86ºF
Operating Humidity 10~80%
Special H/W: Temperature Sensor, Pivot Display, Button Lock, Wifi Embedded, Slide-in media player option
S/W: Plug and Play, MagicInfo, Digital Daisy Chains, Lamp Error Detection, Anti Image Retention,, RS232C/RJ45 MDC, PIP/PBP, Video Wall(10x10), Smart Scheduling
24/7 Operation Yes
SMART Signage Platform Yes
Outdoor Yes
Media Player Type Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 8GB FDM, USB 2.0, Linux OS

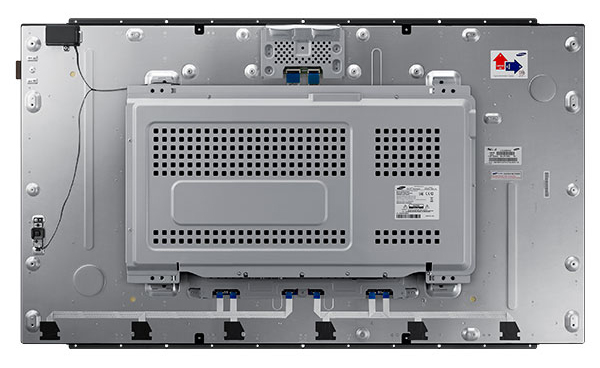

Vesa Standard Wall-Mount Interface 600 x 400 mm
Without Stand (W x H x D) 40.8" x 23.2" x 5.6"
Bezel Width 9.3mm (L/R 7.9mm, Bottom 6.5mm)
Standard Warranty 3 Years On-Site (Parts / Labor / Backlight)
Optional Media Player SBB-CF7, SBB-DA, SBB-DI
Green Management
ROHS Compliant Yes
Packaging Recyclability Packing Materials Recyclable
