KM24C-3 - 24" Self Service Kiosk for Business
Windows Kiosk Touch Display (Screen only)
24" Self Service Kiosk for Business
Our Price: $2,630.00
Overview:
- Kiosk connection box and stand sold separately.
- All-in-One Kiosk with built-in Windows 10 IoT Enterprise OS
- Supports enhanced compatibility with third-party devices to seamlessly integrate business operations
- Enables a smooth customer experience with an intuitive all-in-one payment and ordering system
Features:

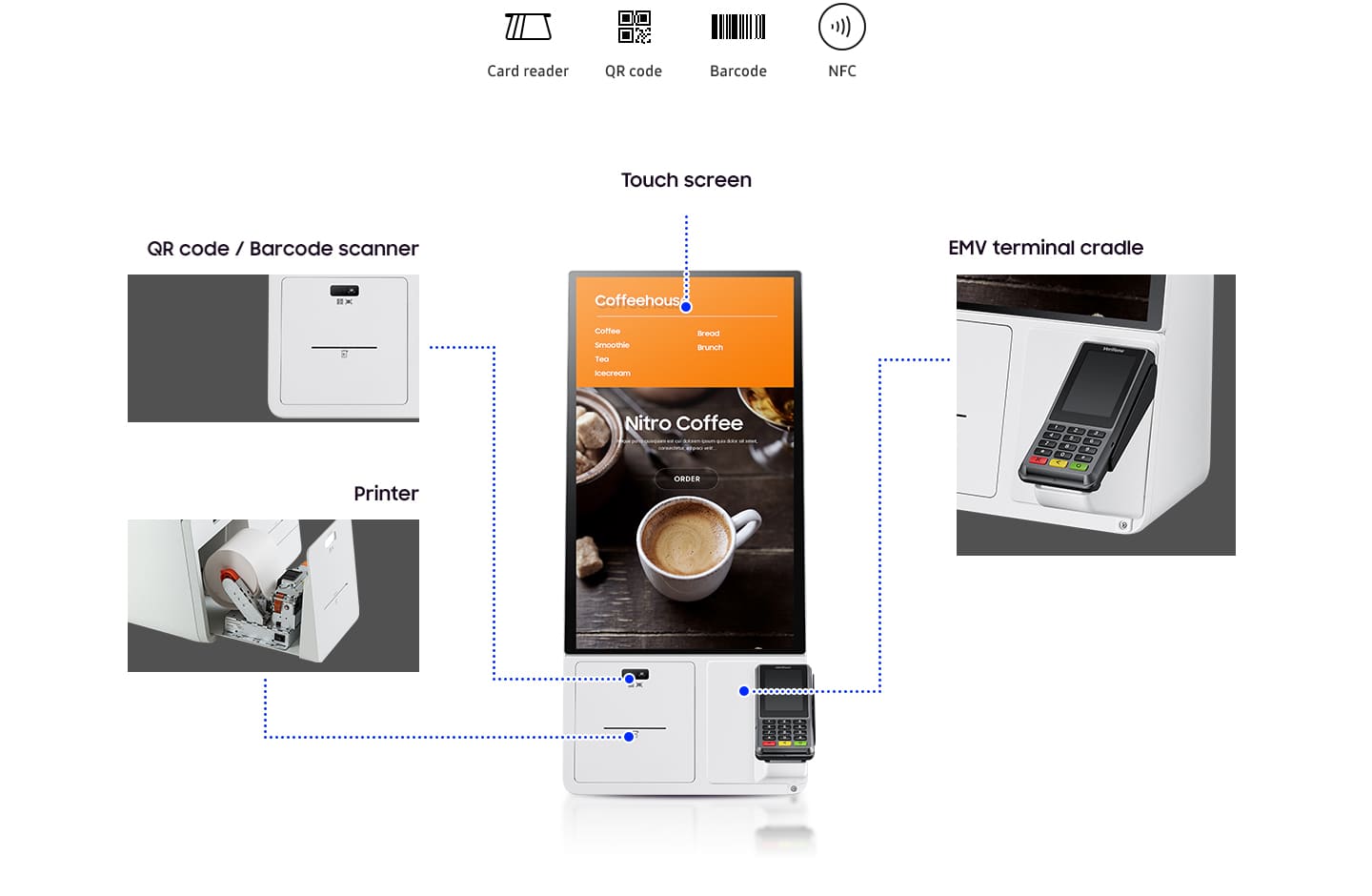

All-in-one solution with upgraded compatibility
Samsung Kiosk operating on Windows is an all-in-one solution without the need for an external PC. With Windows 10 loT Enterprise OS, it enables flexible connection with versatile devices and services, making it suitable for a wide array of business uses.

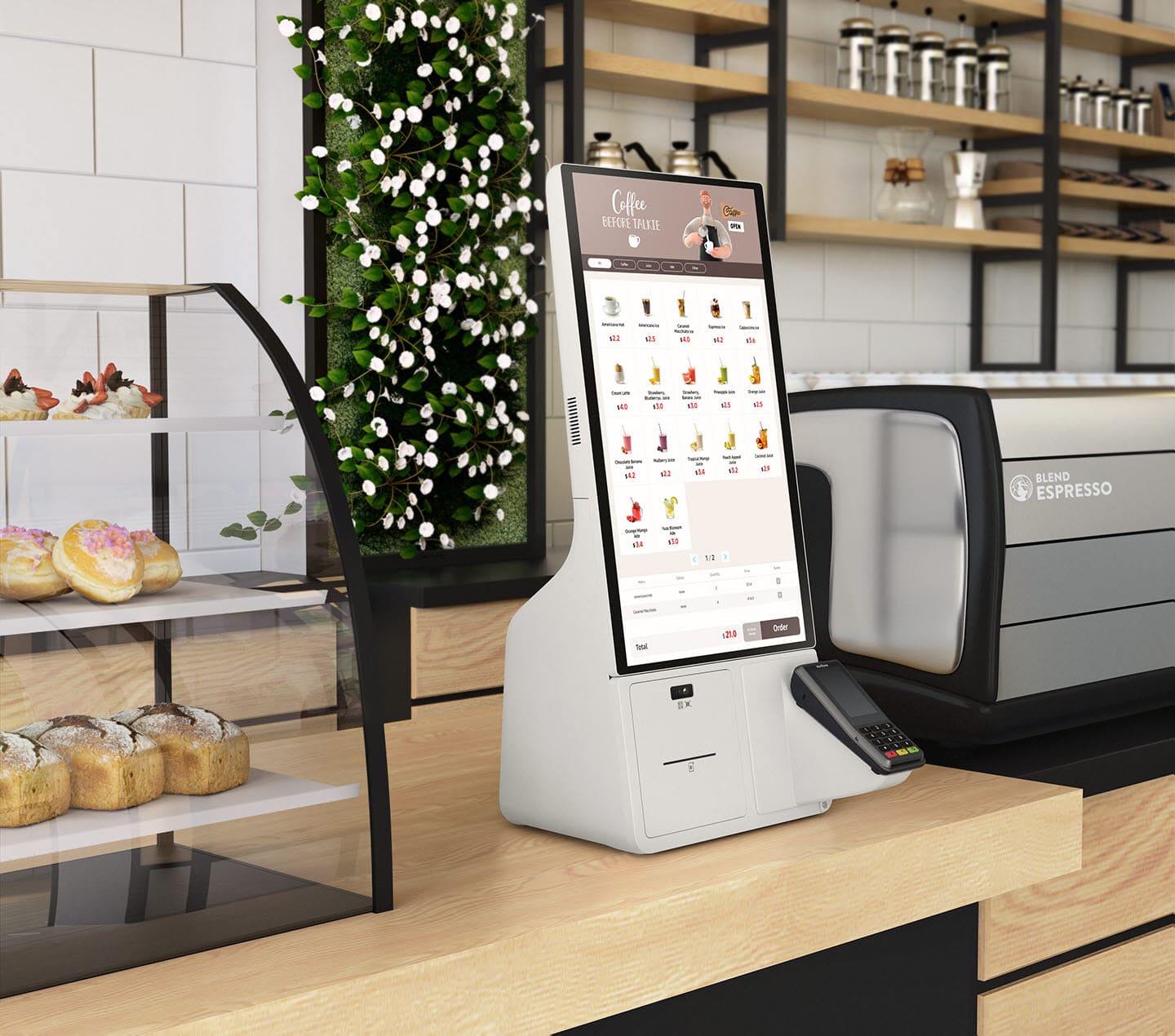

Compact and modern design
Samsung Kiosk is composed of a single display part and connection box, along with an optional stand. The design enables clean and convenient cable management while the grey-white color and simple stand means the kiosk blends perfectly into any store interior with a stylish look.

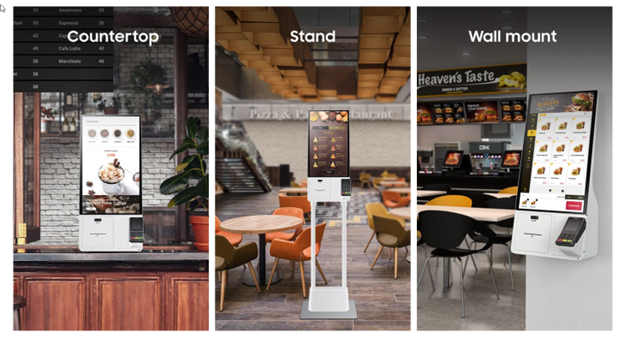

Versatile solution for any scenario
For enhanced flexibility in any business environment, Samsung’s new kiosk offers three installation types – countertop, floor stand and wall-mounting – along with hidden cabling and power strip, with no external PC needed either for optimized space saving.
Robust yet stable performance
Powered by 11th Gen Intel® Core™ Processor, the Samsung Kiosk, built on Windows OS, features high-performance computing power for flexible, stable, and enhanced capabilities. Delivers amazing and robust experiences to users in any business environment.
Powerful, protective security
The kiosk uses three-layer security protection powered by Samsung Knox technology which supports application development on the secured platform, the protection of important customer data and effective minimization of security attacks for a powerful, comprehensive security solution.

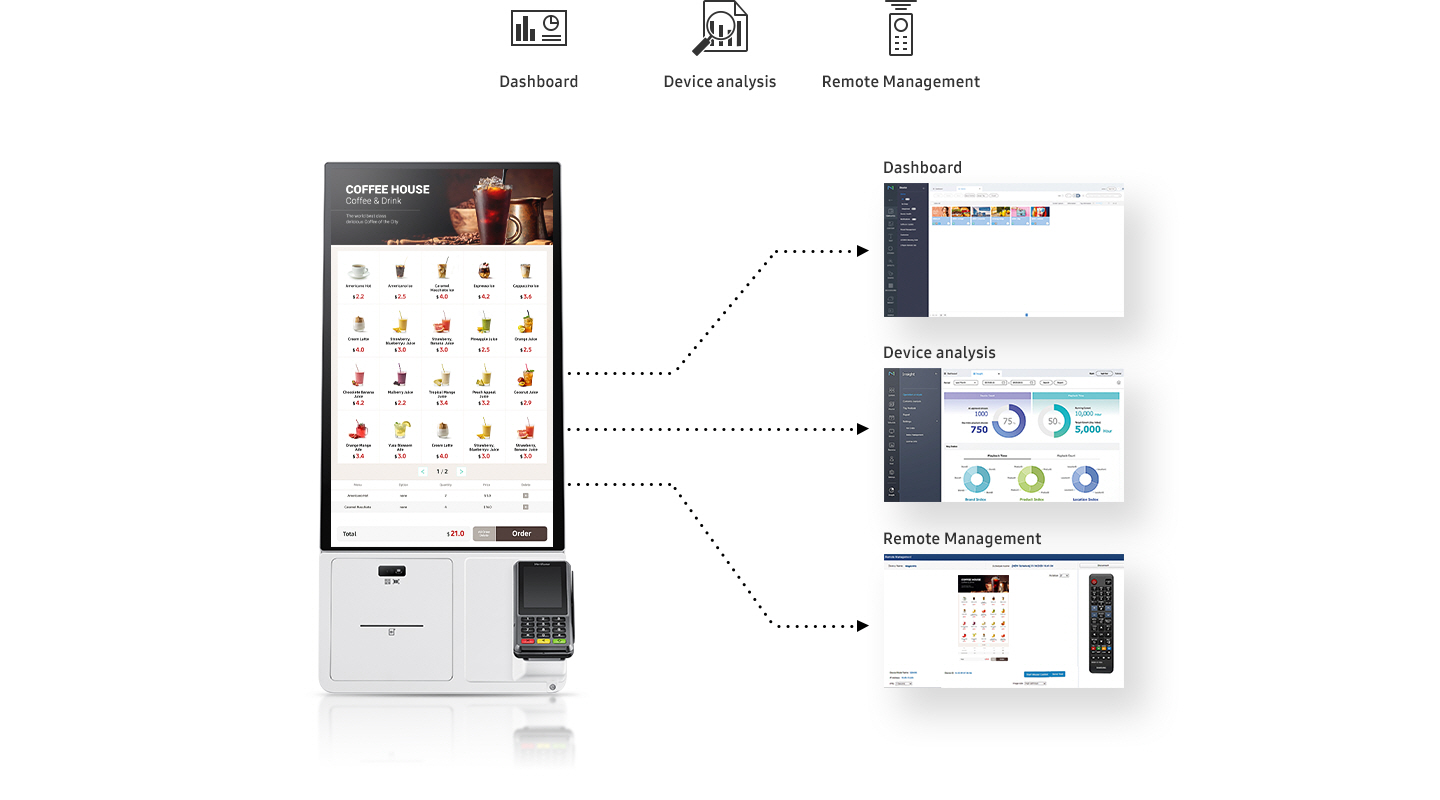

Display monitoring and management
Samsung Kiosk provides a proven remote monitoring solution, allowing managers to view display information, check peripheral devices and resolve errors. Remote control capabilities also enable the diagnosis of issues and remote control of essential functions such as switching the screen on and off.
Minimize accidents and risks- Shatterproof protection
Samsung understands that accidents happen. To protect students and educators, the Samsung Kiosk screen is wrapped in a proprietary shatterproof film, ensuring the screen stays intact in the event of a break.
Keep the screen clean
Thanks to an Antimicrobial Coating, Samsung Kiosk inhibits microbial growth to help protect against certain bacteria. This enables customers to stay focused on what’s on the screen with peace of mind.
Specifications:
| Samsung KM24C-3 Specifications | |
|---|---|
| Display | |
| Screen Size | 24" |
| Resolution | 1920x1080 (Full HD) |
| Contrast Ratio (Typical) | 1000:1 (w/o Glass) |
| Contrast Ratio (Dynamic) | Mega |
| Viewing Angle (Horizontal/Vertical) | 178° / 178° |
| Panel Type | ADS |
| Pixel Pitch (HxV) | 0.2745 x 0.2745 mm |
| Brightness (Typ.) | 250 (without glass) |
| Response Time(G-to-G) | 14 ms |
| Color Gamut | 72% |
| Glass Haze | 25 (w/o glass) % |
| H-Scanning Frequency | 56~84.5KHz |
| V-Scanning Frequency | 48~75Hz |
| Maximum Pixel Frequency | 148.5MHz |
| Operation Time Support | 16/7 |
| All-in-One Solution | Yes |
| Connectivity | |
| USB | 1 |
| Power | |
| Power Consumption (On Mode) | 88 W |
| Power Consumption (Sleep Mode) | Stand-by[W/h]: 0.5 |
| Touch | |
| Type | Capative |
| Dimensions | |
| Set Dimension (WxHxD) | 547.9 x 334.4 x 48.8 mm |
| Pacakge Dimension (WxHxD) | 620 x 419 x 122 mm |
| Weight | |
| Package Weight | 5.7 kg |
| Set Weight | 4.3 kg |
| Operation Conditions | |
| Operating Temperature | 0 ℃ ~ 40 ℃ |
| Operating Humidity | 10 ~ 80%, non-condensing % |
| Mechanical Spec | |
| Bezel Width | UD: 17.9 / LR: 9.4 |
| Frame Material | Non-Glossy |
| Optional Features | |
| Stand | Yes |
| Touch | Yes |
| SoC | |
| OS Version | Windows 10 IoT Enterprise |
| Flash Memory Size | 256GB |
| Certification and Compliance | |
| EMC | Class A FCC (USA) Part 15, Subpart B KCC/EK (Korea) Tuner : KN32 / KN35 Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015 EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016 CCC(China) GB/T9254-2008 GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS) C-Tick (Australia) AS/NZS CISPR32:2015 GOST(Russia/CIS) ROCT CISPR 24-2013 ROCT CISPR 22:2005 |
| Safety | CB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS (India) : IEC60950-1 / IS13252NOM (Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC (Korea) : K 60950-1EAC (Russia) : EAC+IEC60950-1INMETRO (Brazil) : INMETRO+IEC60950-1BSMI (Taiwan) : BSMI+IEC60950-1RCM (Australia) : IEC60950-1/AS/NZS 60950-1UL (USA) : cUL60950 |
Images:

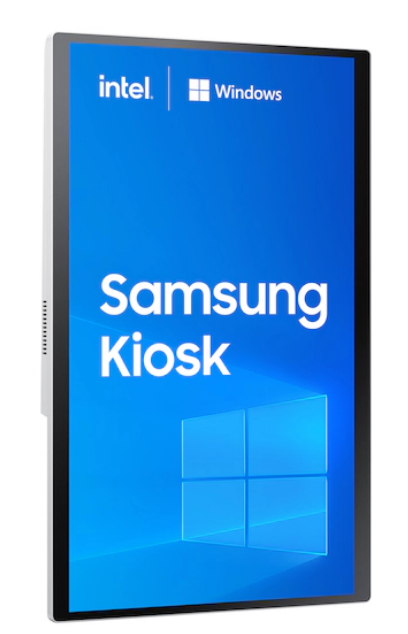

| Front View |

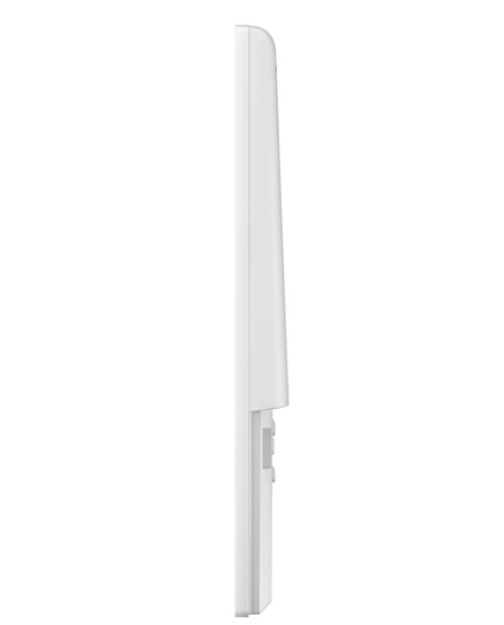

Side View |
Back View |
Pricing Notes:
- Pricing and product availability subject to change without notice.
- On-site Warranty includes:
- Next Business Day exchange of the display
- Includes on-site tech-assisted exchange of display
- Technician removes original unit, installs replacement, and ships non-working unit to Samsung
- Coverage for mechanical/electrical breakdown
- 3,4,5 year terms available
