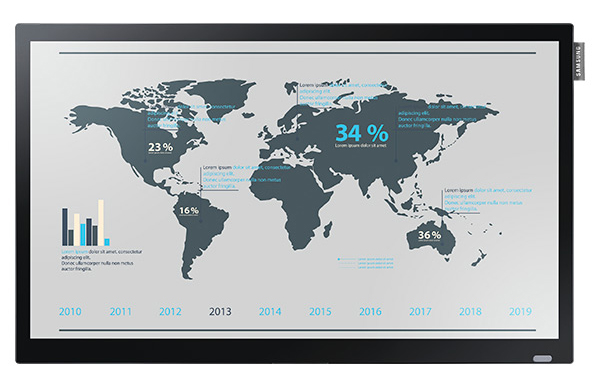

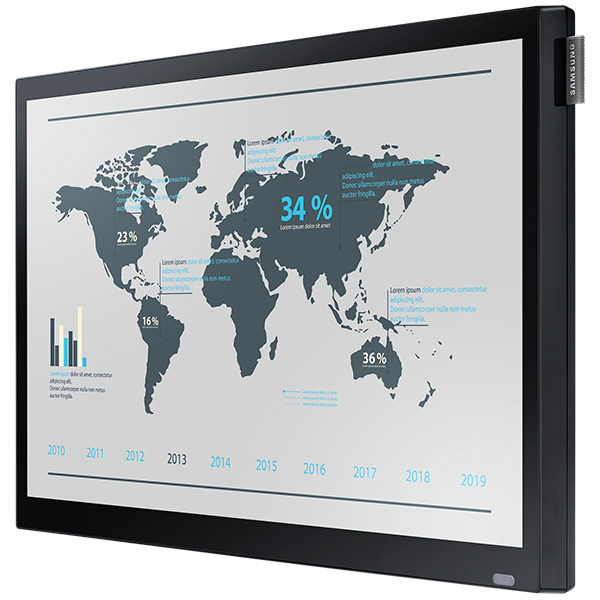

Samsung DB22D-T - DB-D Series 22" Slim Direct-Lit LED Touchscreen Display
The 22" Touchscreen Display That Really Attracts An Audience.

Samsung DB22D-T - DB-D Series 22" Slim Direct-Lit LED Touchscreen Display

This product is no longer available, Contact us for Custom Units Available

Overview:

Samsung's DB22D-T offers touchscreen interactivity along with a fully embedded solution to manage digital signage content without connecting external devices. An enhanced Samsung SMART Signage Platform (SSP) features a quad core processor, combined with media player functionality via System-on-Chip (SoC), and MagicInfo software. The 22" form factor fits small placements, while full HD resolution delivers sharp, stunning images.

  • All-in-One Solution Thanks to SSP with a Quad Core Processor and MagicInfo Software
  • Touchscreen Interactivity and a 22" Form Factor for Small, Close Placements
  • Slim 2.3" Chassis Depth with Slim-Direct LED Backlight Technology
  • Reliable 16/7 Operation with 3 Year Onsite Warranty

Features

Touchscreen Interactivity

With an interactive touchscreen, the DB22D-T can enhance the customer experience in various retail and hospitality settings. The hands-on approach helps your customers engage with your business in new ways, which can lead to tangible results.

Enhanced SSP with Quad Core Processor

Experience enhanced SoC performance with a quad core processor. SSP is an integrated, open platform providing a powerful streamlined solution to reduce TCO in digital signage deployments through savings in hardware installation and operating costs.

All-in-One Solution

The DB22D features SSP enabled with media player functionality via SoC, built-in processing, built-in power control and MagicInfo content management software for an all-in-one digital signage solution that allows users to effectively and efficiently coordinate their signage.

Sleek Industrial Design

Slim-direct LED backlight technology delivers a sleek industrial design with a 2.3" chassis depth that is combined with a 22" form factor for an elegant look in small placements. LED also slims your TCO thanks to up to 50% energy savings over CCFL.

Connectivity and Control

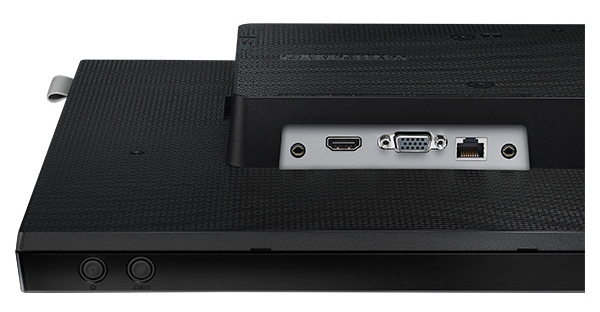

Discover versatile connectivity options to display a range of exceptional content that speaks to your audience. Connections include D-sub, USB, HDMI and WiFi embedded and external control capability via RS232C. Built-in WiFi allows you to eliminate LAN cables for simpler installation.

Adapts to Your Business

Small shops, shopping malls and large chain stores can utilize the DB22D as a shelf-level or endcap solution. Enterprises can share agenda or meeting room information outside of conference rooms. In public spaces, advertising or floor level information can be displayed on the inside of an elevator.

Specifications:


Samsung DB22D-T - DB-D Series 22" Slim Direct-Lit LED Touchscreen Display Specifications
Display
Screen Size 21.5"
Panel Technology 60Hz Slim D-LED BLU
Resolution 1920 x 1080 (16:9)
Brightness 250 nits
Contrast Ratio 1000:1
Viewing Angle (Horizontal/Vertical) 178:178
Orientation Landscape / Portrait
Response Time (G-to-G) 5ms
Connectivity
Input Video: VGA (D-Sub 15 Pin), HDMI, Audio: Stereo Mini Jack
External Contro RS232C (in) thru Stereo Jack, RJ45
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical / Max 40W / 44W
Power Consumption (Standby < 0.5W
Environmental Conditions
Operating Temperature 0°C ~ 40°C
Operating Humidity 10~80%
Features
Special Touch (10 Point, 2 Drawing), Temperature Sensor, Pivot Display, Image Rotation, Button Lock, Clock Battery (80hrs Clock Keeping), Built in Speaker (1Wx2), WiFi Module Embedded, Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Smart Scheduling, Smart F/W Update, Built In MagicInfo Player S2
Touch Enabled Yes
SMART Signage Platform Compliant Yes
Internal Media Player Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 4GB FDM, USB 2.0, Linux OS

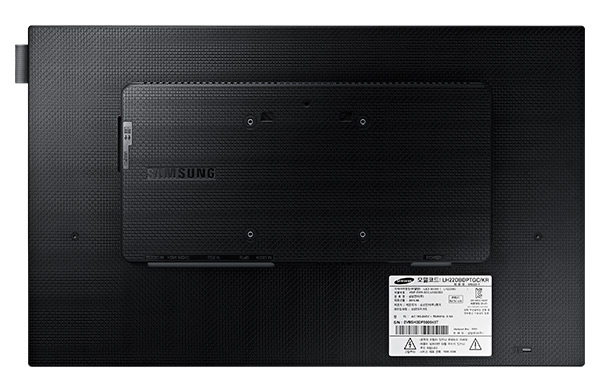

VESA Standard Wall Mount Interface 100 x 100mm
Dimensions
Product Dimensions (without stand) 20.0" x 12.3" x 2.33"
Packaging Dimensions 22.4" x 14.8" x 5.0"
Bezel Width 17.5 (top),14.9 (side), 24.5 (bottom)
Weight
Product Weight 9.7 lbs
Shipping Weight 12.5 lbs
Service
Standard Warranty 3 Years On-Site (Parts / Labor / Backlight)
Accessories
Included Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries
Green Management
Emission Standard EMC
RoHS Compliant Yes
Packaging Recyclability Packing Materials Recyclable
Connectivity

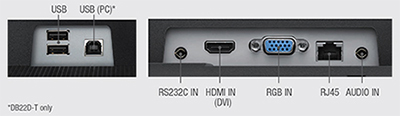

DB22D-P & DB22D-T Connectivity

Compare:


Samsung DB-D Series Small Signage LED LCD Displays Comparison
Model Number DB10D DB22D-P DB22D-T (Touchscreen)
Display
Screen Size 10.1" 21.5" 21.5"
Panel Technology 60Hz Edge-lit LED 60Hz Slim D-LED BLU 60Hz Slim D-LED BLU
Resolution 1280x800 1920 x 1080 (16:9) 1920 x 1080 (16:9)
Brightness 450 nits 250 nits 250 nits
Contrast Ratio 900:1 1000:1 1000:1
Viewing Angle (Horizontal/Vertical) 178:178 178:178 178:178
Orientation Landscape / Portrait Landscape / Portrait Landscape / Portrait
Response Time (G-to-G) 30ms 5ms 5ms
Connectivity
Input HDMI Video: VGA (D-Sub 15 Pin), HDMI, Audio: Stereo Mini Jack Video: VGA (D-Sub 15 Pin), HDMI, Audio: Stereo Mini Jack
External Control RS232C (in) thru Stereo Jack, RJ45 RS232C (in) thru Stereo Jack, RJ45 RS232C (in) thru Stereo Jack, RJ45
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz (External) AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical / Max) 18W / 18.7W 40W / 44W 40W / 44W
Power Consumption (Standby) < 0.5W < 0.5W < 0.5W
Environmental Conditions
Operating Temperature 0°C ~ 40°C 0°C ~ 40°C 0°C ~ 40°C
Operating Humidity 10%~80%, non-condensing 10%~80% 10~80%
Features
Special Temperature Sensor, Portrait Installation Support, Button Lock, Clock Battery (80hrs Clock Keeping), Built in Speaker (1Wx1), WiFi Module Embedded, SD Card Slot, Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play (DDC2B), Image Rotation, Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, Predefined Templates for Vertical Usage, Mobile Control, Event Schedule, Backup Player Temperature Sensor, Pivot Display, Image Rotation, Button Lock, Clock Battery (80hrs Clock Keeping), Built in Speaker (1Wx2), WiFi Module Embedded, Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Smart Scheduling, Smart F/W Update, Built In MagicInfo Player S2 Touch (10 Point, 2 Drawing), Temperature Sensor, Pivot Display, Image Rotation, Button Lock, Clock Battery (80hrs Clock Keeping), Built in Speaker (1Wx2), WiFi Module Embedded, Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Smart Scheduling, Smart F/W Update, Built In MagicInfo Player S2
Touch Enabled No No Yes
SMART Signage Platform Compliant Yes Yes Yes
Internal Media Player Cortex-A9 1GHz Quad Core, 1.0GB DDR3, 4GB FDM, USB 2.0, Linux OS Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 4GB FDM, USB 2.0, Linux OS Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 4GB FDM, USB 2.0, Linux OS
VESA Standard Wall Mount Interface 50 x 50mm 100 x 100mm 100 x 100mm
Dimensions
Product Dimensions (without stand) 9.7" x 6.5" x .98" 20.0" x 12.3" x 2.27" 20.0" x 12.3" x 2.33"
Packaging Dimensions 14.4" x 8.1" x 2.8" 22.4" x 14.8" x 5.0" 22.4" x 14.8" x 5.0"
Bezel Width 14.1mm 17.5 (top),14.9 (side), 24.5 (bottom) 17.5 (top),14.9 (side), 24.5 (bottom)
Weight
Product Weight 1.3 lbs 7.9 lbs 9.7 lbs
Shipping Weight 2.6 lbs 10.8 lbs 12.5 lbs
Service
Standard Warranty 2 Years On-Site (Parts / Labor / Backlight) 3 Years On-Site (Parts / Labor / Backlight) 3 Years On-Site (Parts / Labor / Backlight)
Accessories
Included Quick Setup Guide, Warranty Card, Regulatory Guide, Power Cord, Power Adapter, Remote Controller, Batteries, RS232C-Stereo Cable, Stand Bar Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries
Green Management
Emission Standard EMC EMC EMC
RoHS Compliant Yes Yes Yes
Packaging Recyclability Packing Materials Recyclable Packing Materials Recyclable Packing Materials Recyclable
Connectivity

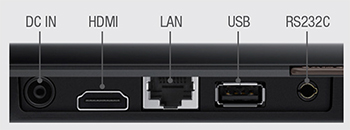

DB10D DB10D
DB22D-P and DB22D-T DB22D-P & DB22D-T Connectivity

Documentation:

Download the Samsung DB-D Small Signage LED LCD Displays Datasheet (.PDF)
