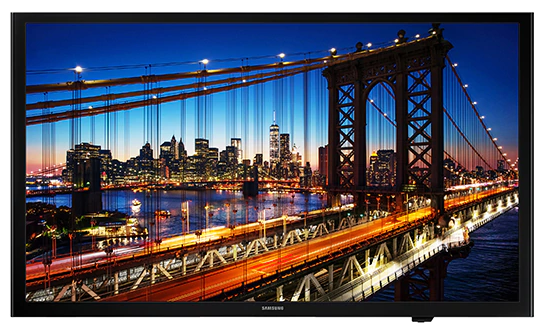

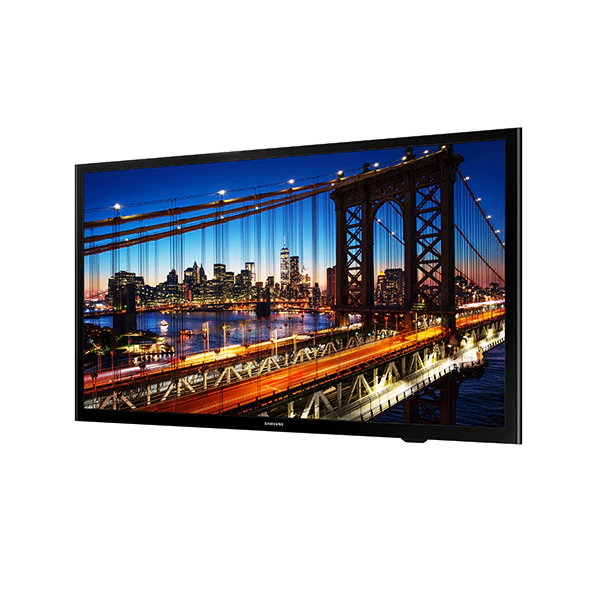

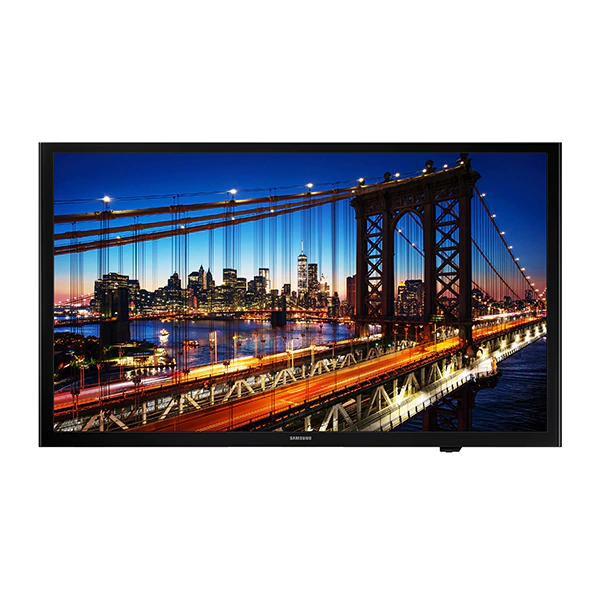

Samsung 693 Series Healthcare TVs have been designed with hospital-specific features to help make a positive impact on patient outcomes. Your patients receive stunning Samsung picture quality, while you receive cost savings from LED technology that uses up to 50% less energy. Facility managers benefit from side-mounted USB ports for convenient set-up, an on-site commercial warranty and business support services. Plus, our healthcare TVs are compatible with many interactive patient education systems.
Samsung Healthcare TVs are specifically engineered to meet the stringent requirements for use in hospital environments. Manufactured in accordance with UL’s published and nationally recognized Standards for Safety, you get worry-free patient comfort for your healthcare facility.
An easy-to-use interface for multiple styles of pillow speakers is built right into the TV. That means no set-top/set-back box is required, while eliminating the hassle of fumbling with remotes and changing batteries and allowing adequate listening volume without disturbing others.
Enabled by Tizen, H-Browser is a true SMART TV solution that allows exceptional flexibility for content development, so that certified system integrators can create smart hospitality solutions. It features both free and video on demand (VOD) content, and is able to interface directly with the head end without a set top box.

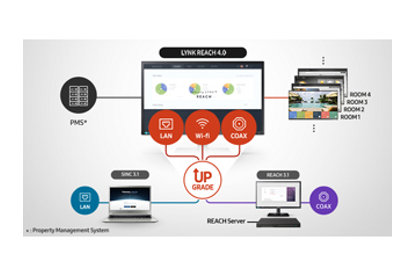

Samsung’s LYNK REACH 4.0 is a complete content management solution that accommodates coaxial, LAN and Wi-Fi infrastructures to amplify hospital management, monitoring and patient service functions. It allows healthcare providers to give patients easy access to educational information, and also keeps patients and their visitors entertained. This can improve patient and guest comfort, and help boost HCAHPS scores.
|
|
HG32NF693GFXZA |
HG40NF693GFXZA |
HG43NF693GFXZA |
HG49NF693GFXZA |
|
|---|---|---|---|---|---|
|
Display |
Backlight |
LED |
LED |
LED |
LED |
|
Screen Size (Diagonal) |
32" |
40" |
43" |
49" |
|
|
Resolution |
1920 x 1080 (FHD) |
1920 x 1080 (FHD) |
1920 x 1080 (FHD) |
1920 x 1080 (FHD) |
|
|
Video |
Picture Engine |
HyperReal |
HyperReal |
HyperReal |
HyperReal |
|
Dynamic Contrast Ratio |
Mega Contrast |
Mega Contrast |
Mega Contrast |
Mega Contrast |
|
|
Wide Color Enhancer (Plus) |
Yes |
Yes |
Yes |
Yes |
|
|
Film Mode |
Yes |
Yes |
Yes |
Yes |
|
|
Natural Mode |
Yes |
Yes |
Yes |
Yes |
|
|
Audio |
Dolby Digital Plus |
Yes |
Yes |
Yes |
Yes |
|
Sound Output (RMS) |
10W (L:5W, R:5W) |
20W (L:10W, R:10W) |
20W (L:10W, R:10W) |
20W (L:10W, R:10W) |
|
|
Speaker Type |
2CH Down Firing w/Bass Reflex |
2CH Down Firing w/Bass Reflex |
2CH Down Firing w/Bass Reflex |
2CH Down Firing w/Bass Reflex |
|
|
Bluetooth Audio |
Yes |
Yes |
Yes |
Yes |
|
|
SMART TV |
Smart TV Type |
Smart |
Smart |
Smart |
Smart |
|
Mobile to TV - Mirroring, DLNA |
Yes |
Yes |
Yes |
Yes |
|
|
Samsung SMART View |
Yes |
Yes |
Yes |
Yes |
|
|
Wired TV On - Samsung WOL |
Yes |
Yes |
Yes |
Yes |
|
|
Web Browser |
Yes |
Yes |
Yes |
Yes |
|
|
VESA Standard |
VESA Wall Mount (mm) |
100 x 100 |
200 x 200 |
200 x 200 |
200 x 200 |
|
VESA Screw Size |
M4 |
M8 |
M8 |
M8 |
|
|
VESA Screw Depth (mm) |
20.9-21.9 |
20-21 |
20-21 |
20 |
|
|
Features |
Accessibility |
Voice Guide / Enlarge / High Contrast / Multi-Output Audio |
Voice Guide / Enlarge / High Contrast / Multi-Output Audio |
Voice Guide / Enlarge / High Contrast / Multi-Output Audio |
Voice Guide / Enlarge / High Contrast / Multi-Output Audio |
|
Processor |
Quad Core |
Quad Core |
Quad Core |
Quad Core |
|
|
ConnectShare™ (HDD) |
Yes |
Yes |
Yes |
Yes |
|
|
ConnectShare™ (USB 2.0) |
Yes |
Yes |
Yes |
Yes |
|
|
Soft AP |
Yes |
Yes |
Yes |
Yes |
|
|
OSD Language |
English, Spanish, French |
English, Spanish, French |
English, Spanish, French |
English, Spanish, French |
|
|
BT HID Support |
Yes |
Yes |
Yes |
Yes |
|
|
USB HID Support |
Yes |
Yes |
Yes |
Yes |
|
|
V-Chip |
Yes |
Yes |
Yes |
Yes |
|
|
Digital Clean View |
Yes |
Yes |
Yes |
Yes |
|
|
Auto Channel Search |
Yes |
Yes |
Yes |
Yes |
|
|
Auto Power Off |
Yes |
Yes |
Yes |
Yes |
|
|
EPG |
Yes |
Yes |
Yes |
Yes |
|
|
Caption (Subtitle) |
Yes |
Yes |
Yes |
Yes |
|
|
Game Mode |
Yes |
Yes |
Yes |
Yes |
|
|
System |
Digital Broadcasting |
ATSC/Clear QAM |
ATSC/Clear QAM |
ATSC/Clear QAM |
ATSC/Clear QAM |
|
Analog Tuner |
Yes |
Yes |
Yes |
Yes |
|
|
Hospitality Features |
Samsung LYNK™ HMS Compatibility |
Yes |
Yes |
Yes |
Yes |
|
H. Browser |
Yes |
Yes |
Yes |
Yes |
|
|
Samsung LYNK™ REACH (IP) / Samsung LYNK™ REACH (RF) |
REACH 4.0 / REACH 4.0 |
REACH 4.0 / REACH 4.0 |
REACH 4.0 / REACH 4.0 |
REACH 4.0 / REACH 4.0 |
|
|
Samsung LYNK™ DRM (IP) / Samsung LYNK™ DRM (RF) |
Yes / Yes |
Yes / Yes |
Yes / Yes |
Yes / Yes |
|
|
Pro:Idiom (IP) / Pro:Idiom (RF) |
Yes / Yes |
Yes / Yes |
Yes / Yes |
Yes / Yes |
|
|
Hospitality Home Menu |
Home Menu 2017 |
Home Menu 2017 |
Home Menu 2017 |
Home Menu 2017 |
|
|
Bluetooth Music Player (Mobile to TV) |
Yes |
Yes |
Yes |
Yes |
|
|
Hospitality Plug&Play (Easy Setup) |
Yes |
Yes |
Yes |
Yes |
|
|
Auto Source Mode |
Yes |
Yes |
Yes |
Yes |
|
|
Power On Mode |
Yes |
Yes |
Yes |
Yes |
|
|
Hotel Channel List |
Yes |
Yes |
Yes |
Yes |
|
|
Channel Menu Display |
Yes |
Yes |
Yes |
Yes |
|
|
Mixed Channel List (ATSC, DVB-T/T2/C/S2, Analog) |
Yes |
Yes |
Yes |
Yes |
|
|
Energy Saving Mode (BLU Control) |
Yes |
Yes |
Yes |
Yes |
|
|
Logo Display with Timer Out Setting (BMP / Movie) |
Yes |
Yes |
Yes |
Yes |
|
|
Welcome Message |
Yes |
Yes |
Yes |
Yes |
|
|
RJ12 / IR Pass Through |
Yes |
Yes |
Yes |
Yes |
|
|
Clock Back Up Power Supply |
Yes |
Yes |
Yes |
Yes |
|
|
Multi Code Remote Control |
Yes |
Yes |
Yes |
Yes |
|
|
Sound Bar Compatibility |
Yes |
Yes |
Yes |
Yes |
|
|
Music Mode (Input: PC / AV / Component / HDMI) |
Yes |
Yes |
Yes |
Yes |
|
|
Music Mode Backlight On / Off |
Yes |
Yes |
Yes |
Yes |
|
|
USB Cloning |
Yes |
Yes |
Yes |
Yes |
|
|
Smoovie Compatibility |
Yes |
Yes |
Yes |
Yes |
|
|
On / Off Timer (Schedule) |
Yes |
Yes |
Yes |
Yes |
|
|
Wake-up Timer (Alarm) |
Yes |
Yes |
Yes |
Yes |
|
|
Security Mode |
Yes |
Yes |
Yes |
Yes |
|
|
S/W EPG (Solution EPG) |
Yes |
Yes |
Yes |
Yes |
|
|
Healthcare Features |
UL Certification |
Yes |
Yes |
Yes |
Yes |
|
Pillow Speaker Interface |
Yes |
Yes |
Yes |
Yes |
|
|
Input & Output |
HDMI (Side / Rear) |
3/0 |
3/0 |
3/0 |
3/0 |
|
USB (Side / Rear) |
1/0 |
1/0 |
1/0 |
1/0 |
|
|
Component In (Y/Pb/Pr) (Side / Rear) |
0/1 |
0/1 |
0/1 |
0/1 |
|
|
Composite In (AV) (Side / Rear) |
0/1 (Common Use for Component Y) |
0/1 (Common Use for Component Y) |
0/1 (Common Use for Component Y) |
0/1 (Common Use for Component Y) |
|
|
Ethernet (LAN) (Side / Rear) |
1/0 |
1/0 |
1/0 |
1/0 |
|
|
Audio Out (Mini Jack / LR) (Side / Rear) |
1/0 |
1/0 |
1/0 |
1/0 |
|
|
Digital Audio Out (Optical) (Side / Rear) |
0/1 |
0/1 |
0/1 |
0/1 |
|
|
RF In (Terrestrial / Cable input / Satellite Input) (Side / Rear) |
1/0 |
1/0 |
1/0 |
1/0 |
|
|
Ex-Link (RS232C) (Side / Rear) |
1/0 |
1/0 |
1/0 |
1/0 |
|
|
HDMI A / Return Ch. Support |
Yes |
Yes |
Yes |
Yes |
|
|
HDMI Quick Switch |
Yes |
Yes |
Yes |
Yes |
|
|
Wireless LAN Built-in |
Yes |
Yes |
Yes |
Yes |
|
|
Anynet+ (HDMI-CEC) |
Yes |
Yes |
Yes |
Yes |
|
|
Pillow Speaker Jack (Side / Rear) |
0/1 |
0/1 |
0/1 |
0/1 |
|
|
RJ12 (Side / Rear) |
0/1 |
0/1 |
0/1 |
0/1 |
|
|
RJP Jack (Remote Jackpack) (Side / Rear) |
1/0 |
1/0 |
1/0 |
1/0 |
|
|
Design |
Front Color |
Black |
Black |
Black |
Black |
|
Bezel |
58mm |
58mm |
58mm |
58mm |
|
|
Eco |
Energy Efficiency Class |
Yes |
Yes |
Yes |
Yes |
|
Eco Sensor |
Yes |
Yes |
Yes |
Yes |
|
|
Dimensions (W x H x D) |
Set Size without Stand - Wall Mount Side (W x H x D) (mm / in.) |
741.0 x 436.2 x 69.0 / 29.2" x 17.2" x 2.7" |
922.7 x 531.0 x 72.6 / 36.3" x 20.9" x 2.9" |
985.5 x 574.8 x 73.4 / 38.8" x 22.6" x 2.9" |
1118.8 x 650.0 x 74.2 / 44.0" x 25.6" x 2.9" |
|
Package Size (W x H x D) (mm / in.) |
928.0 x 528.0 x 147.0 / 36.5" x 20.8" x 5.8" |
1111.0 x 643.0 x 161.0 / 43.7" x 25.3" x 6.3" |
1180.0 x 674.0 x 161.0 / 46.5" x 26.5" x 6.3" |
1336.0 x 757.0 x 171.0 / 52.6" x 29.8" x 6.7" |
|
|
Weight |
Set Weight without Stand (kg / (lbs) |
4.2 kg / 9.3 lbs |
6.8 kg / 15.0 lbs |
7.8 kg / 17.2 lbs |
9.9 kg / 21.8 lbs |
|
Package Weight (kg / lbs) |
6.7 kg / 14.8 lbs |
10.4 kg / 22.9 lbs |
11.7 kg / 25.8 lbs |
14.7 kg / 32.4 lbs |
|
|
Power |
Power Supply (V) |
AC 110-120V 50/60Hz |
AC 110-120V 50/60Hz |
AC 110-120V 50/60Hz |
AC 110-120V 50/60Hz |
|
Power Consumption (Max) (W) / (Stand-by) (W) / (Typical) |
70 / 0.5 / 28 |
90 / 0.5 / 35 |
100 / 0.5 / 39 |
135 / 0.5 / 45 |
|
|
Accessory |
VESA Wall Mount Support |
Yes |
Yes |
Yes |
Yes |
|
Wall Bracket and Nut |
No |
Yes |
Yes |
Yes |
|
|
Power Cable |
Yes |
Yes |
Yes |
Yes |
|
|
Quick Install Guide |
Yes |
Yes |
Yes |
Yes |
|
|
|
|||||
