Samsung 460DR-2 - DR Series 46" Outdoor LCD Display
Versatility Makes It The Best LCD Under The Sun.

Samsung 460DR-2 - DR Series 46" Outdoor LCD Display

This product is no longer available, replaced by the OH46F - OH-F Series 46" High Brightness Outdoor Display

Overview:

Samsung's DR Series brings flexibility and full HD resolution to outdoor signage. The 46" LCD display is a versatile, panel-only solution that can be placed in a customized enclosure to meet the unique messaging needs of any business. And high brightness and contrast deliver superb visibility in settings with bright ambient light conditions to help ensure your message is seen.

  • Easy Customization
  • High Brightness, High Contrast
  • Polarized Display
  • Full HD Resolution

Features

Easy Customization

The 460DR-2 is an open frame solution, so it lends itself to a wide variety of outdoor uses.

High Brightness, High Contrast

1500 nits brightness and 4000:1 contrast ratio assure excellent visibility in outdoor settings with bright ambient light conditions.

Polarized Display

The 460DR-2’s special monitor film provides bystanders with a perfect view of the on-screen imagery while wearing sunglasses.

Full HD Resolution

The 460DR-2 offers full HD 1920 x 1080 resolution, adding richness and depth to the image quality.

RJ45 MDC and DisplayPort

DisplayPort delivers enhanced connectivity and an improved display interface, while an upgraded Multi Display Control solution enables control of multiple monitors via their embedded RJ45 interfaces.

SBB-A and SBB-AD7 Slide-In Network Module

The display’s open-frame solution is compatible with the SBB-A and SBB-AD7 media players, adding network capability as well as MagicInfo™ Premium software (the first 5 licenses are free).

Specifications:


Samsung 460DR-2 - DR Series 46" Outdoor LCD Display Specifications
Display
Screen Size 46" CCFL
Panel Technology S-PVA (60Hz)
Resolution 1920 x 1080
Brightness 1500 nits
Contrast Ratio (Typical) 4000:1
Viewing Angle (Horizontal/Vertical) 178˚/178˚
Response Time 8ms
Connectivity
Input VGA (D-Sub 15 Pin), DVI-D, DisplayPort, Composite, HDMI (x2) Component (D-Sub 15 Pin), Stereo Mini Jack
Output Stereo Mini Jack
External Control RJ45, RS232C (In/Out)
Power
Power Supply AC 100 - 240 V (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max 345W / 420W
Power Consumption (Standby) Less than 1W
Environmental Conditions
Operating Temperature 0˚C - 40˚C
Operating Humidity 10 - 80%
Features
Special Panel Kit Only, Air Conditioning Guide, Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Video Wall (10x10), Pivot Display, Button Lock, Smart Scheduling, Smart F/W update
Integrated Tuner N/A
Media Player Type SBB-A (Optional Accessory), SBB-AD7 (Optional Accessory
VESA Standard Wall Mount Interface 400 x 400mm
Dimensions
Product Dimensions (without stand) 41.2" x 24.9" x 6.0"
Packaging Dimensions 45.7" x 29.7" x 12.8"
Bezel Width N/A
Weight
Product Weight 52.8 lbs.
Shipping Weight 66 lbs.
Service
Standard Warranty 3-Year Parts/Labor/Backlight
Accessories
Included Quick Setup Guide, Warranty Card, Application CD, Power Cord, Remote Controller, Batteries
Optional Mount N/A
Optional Stand N/A
Green Management
Emission Standard EMC
Energy Star 5.0 Compliant N/A
RoHS Compliant Yes
Packaging Recyclability Packing Materials Recyclable

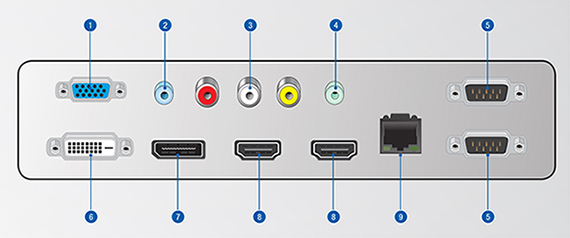

Connectivity
  1. VGA In
  2. Audio In
  3. Component/Composite In
  4. Audio Out
  5. RS232C In/Out
  6. DVI In
  7. DisplayPort
  8. HDMI x 2
  9. RJ45 LAN
460DR-2 Connectivity

Documentation:

Download the Samsung 460DR-2 46" Outdoor LCD Display Datasheet (.PDF)
