Samsung UD46D-P - UD-D Series 46" Direct-Lit LED Display
Put More Image And Less Bezel In Your Videowalls.

Samsung UD46D-P - UD-D Series 46" Direct-Lit LED Display

Samsung Products
Samsung Digital Signage
UD46D-P - UD-D Series 46" Direct-Lit LED Display
#LH46UDDPCBB/ZA
Our Price: $4,443.00

More pricing below, click here!

Overview:

The Samsung UD46D-P advances LCD video wall technology by reducing the bezel-to-bezel (BtB) spec from 5.5mm to 3.5mm compared to predecessor models. Along with factory-tuned color calibration for consistency across multiple displays and our embedded SMART Signage Platform (SSP), you can efficiently achieve seamless matrices, while LED backlighting reduces power consumption in large installations.

  • Ultra-Narrow Bezel Width at 3.5mm BtB for Virtually Seamless Video Walls
  • Embedded SSP System-on-Chip (SoC) Technology Can Eliminate the Need for External Media Players
  • Factory-Tuned for Color Uniformity Right Out of the Box
  • Daisy Chain Up to 4 Displays Over Display Port 1.2 to Achieve 4K x 2K UHD Resolution

Features

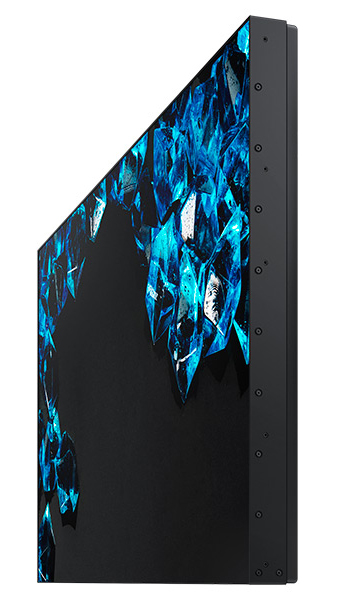

3.5mm BtB Ultra-Narrow Bezel Width

The UD46D-P features incredibly thin bezels at a mere 2.3mm (L/T) and 1.2mm (R/B) - 3.5mm bezel-to-bezel - shaving more than 33% off its predecessor model. Create virtually seamless video walls for a more elegant and impactful delivery of your message.

Samsung SMART Signage Platform (SSP)

Embedded SSP SoC technology helps to reduce the cost and complexity of installation and maintenance by streamlining hardware and software requirements. As an integrated, open platform, you can eliminate the need for external media players to display content across video walls.

Color Calibration

Samsung factory color calibration helps to minimize color difference among multiple LFDs. Factory-tuned for brightness, color temperature and gamma, you can experience color uniformity right out of the box for consistent video wall messaging.

Advanced Color Management (ACM)

The ACM solution provides a user-friendly interface to implement customized and detailed color adjustments. Control luminance, temperature and gamma through auto calibration, manual calibration and duplication to achieve the perfect display for your business.

Video Wall

Create video walls up to 10x10 for large, impactful messaging. Easily connect multiple displays in an elegant fashion thanks to the streamlined hardware and software requirements of the embedded SSP SoC technology and the ultra-narrow bezels of the UD46D-P.

Achieve UHD Resolution

Daisy Chain up to 4 displays over Display Port 1.2 (DP 1.2 - Loop-Out) to achieve 4K x 2K Ultra High Definition (UHD - 3840x2160) resolution. Display exceptional content in a sophisticated manner for an enhanced customer experience.

Image Rotation

Enjoy convenient content creation and management. Create your desired content on a single display and turn on Image Rotation to transform portrait orientation into horizontal and vice versa when you connect and split-screen multiple displays in a video wall matrix.

Magic Clone

Save installation time for multiple displays with Magic Clone. Simply enter your display settings the first time, save the setting information to a USB or external HDD and plug in the external device to the other sets to install them equally.

UD-A/UD-C/UD-D Compatibility

If you are replacing our previous UD-A or UD-C Series 5.5mm-bezel display models with the 3.5mm-bezel UD46D-P in a video wall matrix, we can provide compatible accessories including decoration stands and Multi-Information Display (MID) stands for the upgrade.

Specifications:


Samsung UD46D-P - UD-D Series 46" Direct-Lit LED Display Specifications
Display
Screen Size 46"
Contrast Ratio (Typical) 3500:1
Panel Technology 60Hz D-LED
Viewing Angle (H/V) 178°/178°
Resolution 1920 x 1080 (16:9)
Response Time 8ms
Brightness 700 nits
Connectivity
Input VGA (D-sub 15 pin), DVI-D, Display Port 1.2, 2 HDMI, Component/Composite, Stereo mini Jack
Output Display Port 1.2(Loop-out), Stereo mini Jack
External Control RS232C(In/Out), RJ45
Sensor Detachable type (IR, Ambient)
Power
Powers Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 125W / 176W
Power Consumption (Standby) < 0.5W
Environmental Conditions
Operating Temperature 32ºF ~ 104ºF
Operating Humidity 10% ~ 80%
Features
Special SD Card Slot, ACM Support(Advanced Color Management), Magic Clone(to USB), Auto Source Switching & Recovery, Lamp Error Detection, Anti Retention(Haze 44%), Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Video Wall(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Clock Battery(80hrs Clock Keeping),Built In MagicInfo
Video Wall/Thin Bezel Yes
SMART Signage Platform Yes
Media Player Type Cortex-A9 1GHz Dual Core, 1GB DDR3, 8GB FDM, USB 2.0, Linux OS
Vesa Standard Wall-Mount Interface 600 x 400mm
Dimensions
Without Stand (W x H x D) 40.2" x 22.7" x 3.8"
Packaging (W x H x D) 49.4" x 31.4" x 14.0"
Bezel Width 2.3mm (U/L), 1.2mm (R/B)
Weight
Set 39.8 lb.
Package 49.5 lb.
Service
Standard Warranty 3 Years On-Site (Parts / Labor / Backlight )
Accessories
Included In Box Quick Setup Guide, Warranty Card, Application CD, DP cable, Power Cord, Remote Controller, Batteries
Optional Wall Mount WMN-4675MD (Video Wall Mount)
Optional Stand MID-UD46DS (Video Wall Stand)
Optional Media Player SBB-CF7, SBB-DA
Green Management
Energy Star Certified Yes
ROHS Compliant Yes
Emission Standard EMC
Packaging Recyclability Packing Materials Recyclable

Compare:


Samsung UD-D Series Commercial LED LCD Displays
Model Number UD46D-P UD55D
Display
Screen Size 46" 55"
Panel Technology 60Hz D-LED DID 60Hz D-LED DID
Resolution 1920 x 1080 (16:9) 1920 x 1080 (16:9)
Brightness 700 nits 700 nits
Contrast Ratio 3500:1 3500:1
Viewing Angle (Horizontal/Vertical) 178° / 178° 178° / 178°
Orientation Landscape / Portrait Landscape / Portrait
Response Time (G-to-G) 8ms 8ms
Connectivity
Input Video: VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2, Component/Composite, 2 HDMI, Audio: Stereo Mini Jack Video: VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2, Component/Composite, 2 HDMI, Audio: Stereo Mini Jack
Output Video: DisplayPort 1.2 (Loop Out), Audio: Stereo Mini Jack Video: DisplayPort 1.2 (Loop Out), Audio: Stereo Mini Jack
External Control RS232C (In/Out), RJ45 RS232C (In/Out), RJ45
External Sensor Detachable Type (IR, Ambient) Detachable Type (IR, Ambient)
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical / Max) 125W / 176W 175W / 209W
Power Consumption (Standby) < 0.5W < 0.5W
Environmental Conditions
Operating Temperature 0°C - 40°C 0°C - 40°C
Operating Humidity 10%~80% 10%~80%
Special SD Card Slot, ACM Support(Advanced Color Management), Magic Clone(to USB), Auto Source Switching & Recovery, Lamp Error Detection, Anti Retention(Haze 44%), Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Video Wall(10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Clock Battery(80hrs Clock Keeping),Built In MagicInfo Advanced Color Management, Magic Clone, Auto Source Switching & Recovery, Lamp Error Detection, Anti Retention (Haze 44%), Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Videowall (10x10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (Supporting 2x2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F/W update, Clock Battery (80hrs Clock Keeping), Built In MagicInfo (Lite, Premium-S, VideoWall-S)
Internal Media Player Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 8GB FDM, USB 2.0, Linux OS Cortex-A9 1GHz Dual Core, 1GB DDR3, 8GB FDM, USB 2.0, Linux OS
VESA Standard Wall Mount Interface 600 x 400mm 600 x 400mm
Dimensions
Product Dimensions (without stand) 40.2" x 22.7" x 3.8" 47.8" x 26.9" x 3.8"
Packaging Dimensions 49.4" x 31.4" x 14.0" 57.1" x 15.2" x 35.6"
Bezel Width 2.3mm (U/L), 1.2mm (R/B) 2.3mm (U/L), 1.2mm (R/B)
Weight
Product Weight 39.8 lbs. 51.4 lbs.
Shipping Weight 49.5 lbs. 81.4 lbs.
Service
Standard Warranty 3 Years On-Site (Parts / Labor / Backlight) 3 Years On-Site (Parts / Labor / Backlight)
Accessories
Included Quick Setup Guide, Warranty Card, Application CD, DP cable, Power Cord, Remote Controller, Batteries Quick Setup Guide, Warranty Card, Application CD, DP Cable, Power Cord, Remote Controller, Batteries
Optional Mount WMN-4675MD (Videowall Mount) WMN-4675MD (Videowall Mount)
Optional Stand MID-UD46DS (Videowall Stand) MID-UD55DS (Videowall Stand)
Optional Media Player SBB-CF7, SBB-DA SBB-CF7, SBB-DA
Green Management
Emission Standard EMC EMC
ENERGY STAR® 6.0 Compliant Yes Yes
RoHS Compliant Yes Yes
Packaging Recyclability Packing Materials Recyclable Packing Materials Recyclable

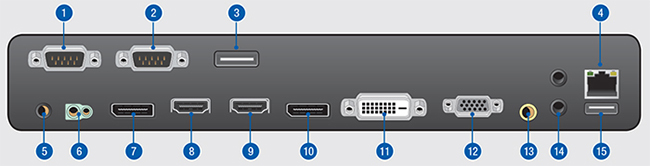

Connectivity
  1. RS232C Out
  2. RS232C In
  3. SD Card (UD46D-P Only)
  4. RJ45 In
  5. IR Out
  6. Control In
  7. DisplayPort In
  8. HDMI In 1
  9. HDMI In 2
  10. DisplayPort Out (Loop Out)
  11. DVI In (Magic Info)
  12. RGB In
  13. AV/Component In
  14. Audio In/Out
  15. USB
D-D Series Connectivity
