Samsung LFD HDBaseT Receiver PIM-HDBT
Enables All-in-One Connectivity Between HD Video Sources and Remote Displays.

Samsung LFD HDBaseT Receiver PIM-HDBT

Samsung Products
Samsung Digital Signage Accessories
LFD HDBaseT Receiver PIM-HDBT
#SBB-HRCA/ZA
Our Price: $158.00

More pricing below, click here!

Overview:

Samsung's PIM-HDBT LFD HDBaseT plug-in receiver helps to make LFD installations significantly simpler and less costly. Working with Samsung's LFDs which support the PIM module, the receiver enables all-in-one connectivity between HD video sources and remote displays through a single cable, delivering uncompressed HD video, audio, Ethernet and control signals.

  • Streamlines LFD Installations
  • Enables All-in-One Connectivity Between HD Video Sources and Remote Displays
  • Works through a Single Cable
  • Delivers Uncompressed HD Video, Audio, Ethernet and Control Signals

Key Features

Long-Distance Video Delivery

The PIM-HDBT supports cable runs up to 328 feet (100m) with a single hop and no loss in picture quality.

Reduced Installation Cost

Samsung’s PIM-HDBT controls signals through a single LAN cable, so there’s no need to install and manage various cables. And the long-distance video delivery eliminates having to add extra amplifier equipment.

Easy Installation

The PIM-HDBT plug-in module allows for installation ease with no additional cost burden.

Global Standard

Samsung’s PIM-HDBT is based on HDBaseT technology, a global standard for installing digital displays in a wide range of environments, from conference rooms and boardrooms to venues in government and education.

Samsung LFD Compatbility

The PIM-HDBT is compatible with many Samsung LFDs, including the PE-C Series, LE-C Series, as well as the MD65, ED65C, ED75C, ME75C, ME95C, ED65D, ED75D, DM65D, DM75D, DH40D, DH48D and DH55D.

Specifications:


Samsung LFD HDBaseT Receiver PIM-HDBT Specifications
Input
Input HDBase-T
Input Spec Sending Data: Receiving TX signals such as Video and Control
Output OPS 80 PIN (PIM Supported)
Output
Output
  • PIM Supported → OPS 80 PIN
  • PIM Not Supported → DP Out (DP to DVI connection needed)
Output Specs
  • Data Sending → 10.2Gbps
  • 3D Supported, HDCP Supported
  • HDCP Supported
  • PIP Mode
  • Resolution: Up to Full UHD
Supporting Models
All PIM supporting Models PE40/46/55C, LE32/46/55C, MD65C, ED65/75C, ED65/75D, ME75/95C, DM65/75D, DH40/48/55D

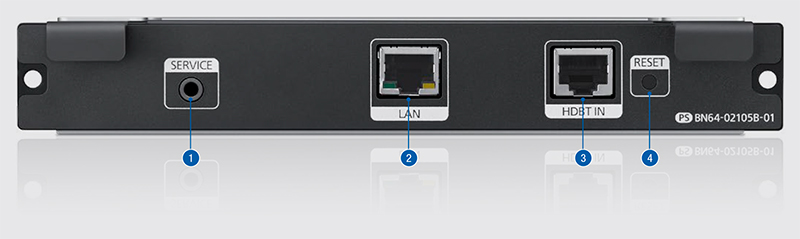

Connectivity
  1. Service In
  2. RJ45 In
  3. HDBT In
  4. Reset
SBB-HRCA Connectivity

Documentation:

Download the Samsung LFD HDBaseT Receiver PIM-HDBT Datasheet (.PDF)
