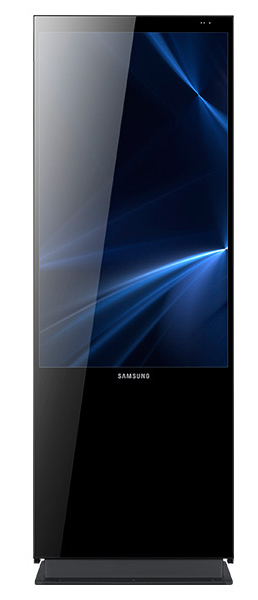

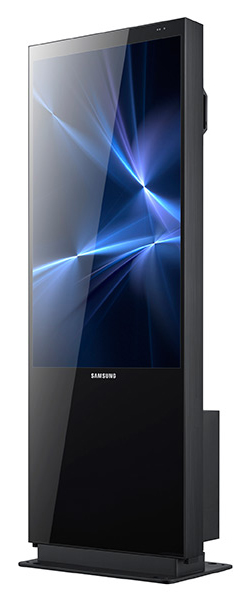

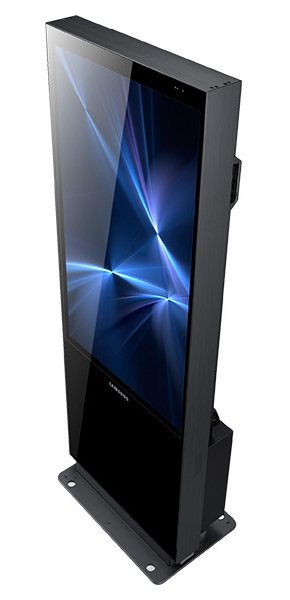

Samsung OL46B - OL Series 46" Outdoor High Brightness Display
Water And Dust Proof To Withstand The Elements.

Samsung OL46B - OL Series 46" Outdoor High Brightness Display

This product is no longer available, please contact us for a replacement.

Overview:

Samsung's OL46B outdoor high brightness display features specially engineered panels to endure high temperatures, while it is water and dust proof to withstand the elements. So you can deliver your message 24/7 in the toughest conditions with exceptional clarity, and manage your digital signage content effectively with features like Smart Scheduling and a Display Port interface for multi-display control.

  • Exceptional High Brightness
  • Optimized for 24/7 Business Operation
  • Full HD 1920 x 1080 Resolution
  • Built-in Speakers

Features

Able to Withstand Higher Temperatures

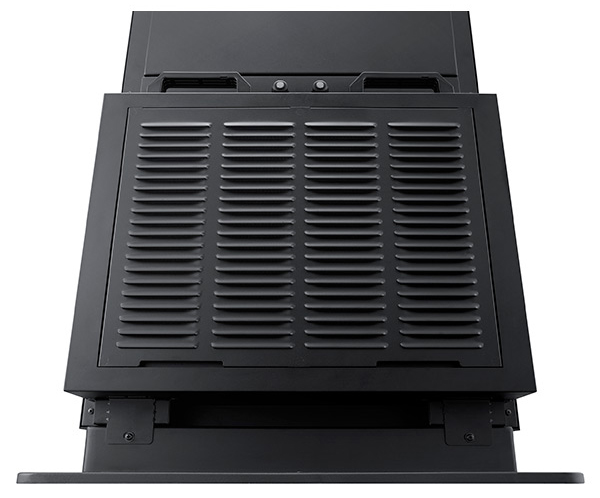

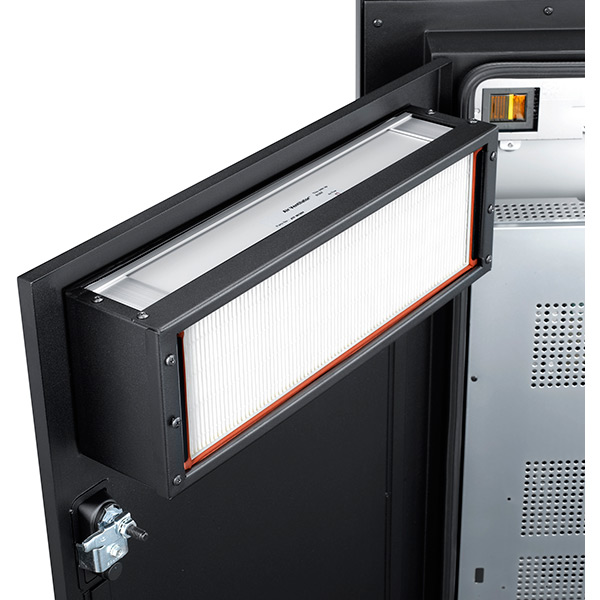

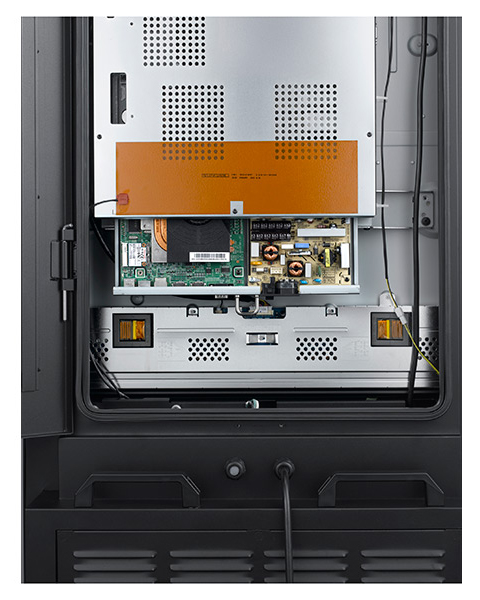

By using specially engineered panels, this display can endure high temperatures from direct sunlight or humid conditions, without the need of a full air-cooling system. Instead, a highly efficient turbo fan is fitted, while still seeing low power consumption.

Withstand the Elements

Heat, rain, snow or hail, this outdoor Samsung LFD can perform 24/7 in any weather, under the toughest conditions, and is water and dust proof to help ensure your message stands out in any environment.

Exceptional High Brightness

The panel on this outdoor LFD absorbs external light and effectively eliminates reflections for a clear, bright image with improved readability. Reduced light scatter and an enhanced contrast ratio delivers excellent visibility even under bright lighting conditions.

Smart Scheduling

Keep your display running efficiently at all times thanks to the Smart Scheduling feature. The automatic power on/off function allows you to designate time, day, volume, input source and holiday dates to effectively manage your digital signage content schedule.

Built-in Speakers

Powerful built-in speakers allow you message to be heard loud and clear while saving you the cost and space of having to purchase and install separate speakers. So you can maximize impact through great image quality combined with ultra-crisp audio.

Display Port Interface

A professional Display Port interface enables high performance multi-display control without the need for a distributor over longer distances.

High Performance Optional PC

Customise the content of your LFD solution with the optional Slide-in-Module (SIM) feature to meet your unique business needs. Run content from a PC quickly and easily by simply sliding the PC in and out of the display.

Full HD of 1920x1080 Resolution

This semi-outdoor LFD is naturally eye catching and demands attention. The rich color and dramatic depth of detail contained in the images provides the perfect platform for a high visibility, high impact digital display.

A Slim Bezel to Offer Great Flexibility

Allow your content to shine through in seamless, unobstructed fashion. The slim bezel of just 19.6mm removes any distractions from your sight to provide a greater surface area, which can be useful when creating a side-by-side video wall installation.

Specifications:


Samsung OL46B - OL Series 46" Outdoor High Brightness Display Specifications
Display
Screen Size 46"
Contrast Ratio (Typical) 4,000:1
Resolution 1920x1080
Contrast Ratio (Dynamic) 10,000:1
Aspect Ratio 16:9
Viewing Angle (H/V) 178/178
Brightness 1500 cd/m2
Response Time 8ms
Connectivity

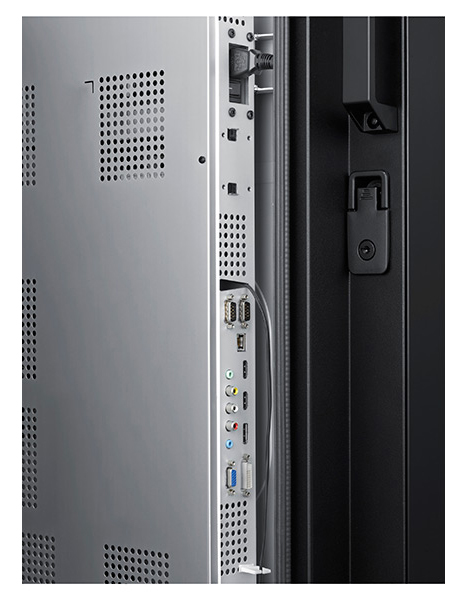

Input CVBS, HDMI1,HDMI2, Component(D-sub 15pin), RCA(L/R) , Stereo mini Jack
Output Stereo mini Jack
External Control RJ45, RS232C(in/out)
Power
Power Supply AC 120V (+/- 10%), 60Hz
Power Consumption (Typical/Max) 395/591.97
Power Consumption (Standby) less than 2W
Environmental Conditions
Special Air Conditioning Guide, Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Pivot Display, Button Lock, Smart Scheduling, Smart F/W update
Outdoor Yes
Media Player Type SBB-A (Optional)
24/7 Operation Yes
Built-in Speakers Yes
Dimensions
Without Stand (W x H x D) 24.2" x 68.3" x 15.4"
Packaging (W x H x D) 29.1" x 74.0" x 19.9"
Bezel Width 0.76"
Weight
Set 201.7 lb.
Package 238.1 lb.
Accessories
Interlocking Kit with Base Stand Quick Setup Guide, Warranty Card, Application CD, Power Cord, Remote Controller, Batteries
Green Management
Emission Standard FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) :KN22, KN24 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB 9254-2008, GB 17625.1-2003
