Samsung OH46D - OH-D Series 46” High Brightness Display
IP56 Certification for Outdoor Usage in Heat, Cold, Rain, Snow and Dust.

Samsung OH46D - OH-D Series 46" High Brightness Display

Samsung Products
Samsung Digital Signage
OH46D - OH-D Series 46" High Brightness Display
#LH46OHDPKBC/GO
Our Price: $5,610.00

More pricing below, click here!

Overview:

Samsung's OH46D displays are certified to withstand the elements in outdoor environments, providing excellent visibility around the clock on the 46" display, even in high ambient light conditions. Through our SMART Signage Platform (SSP), you'll be connected to our partner ecosystem for customized solutions and remote content management.

  • IP56 Certification for Outdoor Usage in Heat, Cold, Rain, Snow and Dust
  • Reliable 24/7 Operation and Enhanced System-on-Chip Performance With a Quad Core CPU
  • High Brightness With an Auto-Brightness Sensor for Visibility in Ambient Light Conditions
  • Industry-Leading Chassis Depth for an Outdoor Commercial Display Provides Installation Ease

Features

IP56 Certification for Outdoor Usage

This is an IP56 Level Certified Product, designed to withstand the elements in outdoor placements. When installed in a light enclosure, this display can fully perform in heat, cold, rain, snow and dust.

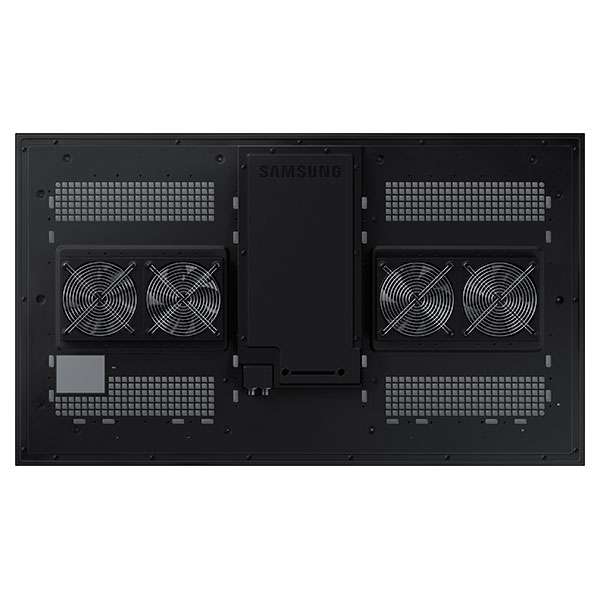

Temperature Management

An innovative cooling solution, plus the ability to heat up, equips this display to handle a wide operating temperature range, from -30℃ ~ 50℃. And no air conditioning is required for cooling, so you can save the expense.

Commercial Reliability With 24/7 Continuous Operation

Built to handle 24/7 continuous operation, you’ll be able to deliver impactful messaging to your audience around the clock, while a 3-year onsite warranty secures your investment and peace of mind.

High Brightness With an Auto-Brightness Sensor

At 3,000 nits, plus a 5,000:1 contrast ratio, this display delivers high brightness for excellent legibility and visibility, even in high ambient light environments. An auto-brightness sensor also adjusts brightness levels based on light conditions, to optimize content viewing as well as maintain efficient operating costs for your business.

Visible With Polarizing Sunglasses

A special film treatment is applied to the display to improve visibility of content while wearing polarized sunglasses.

Enhanced System-on-Chip Performance With a Quad Core CPU

Powered by a System-on-Chip (SoC) semiconductor and quad core CPU, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.

Embedded HDBaseT Receiver

An embedded HDBaseT receiver enables all-in-one connectivity between HD video sources and remote displays through a single cable, delivering uncompressed HD video, audio, Ethernet and control signals.

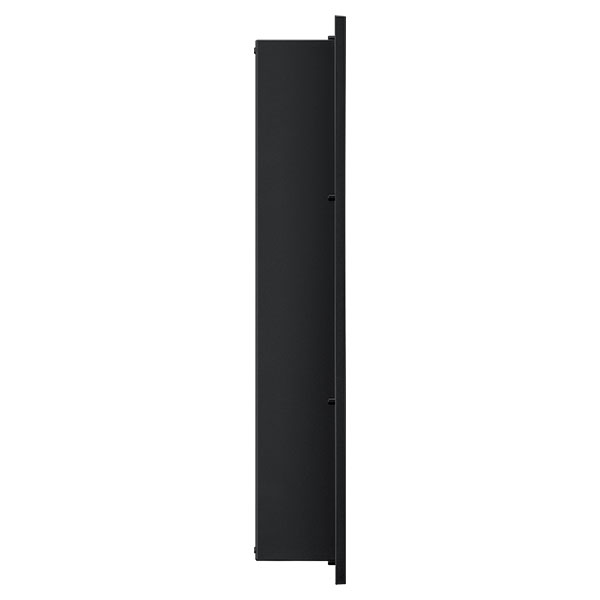

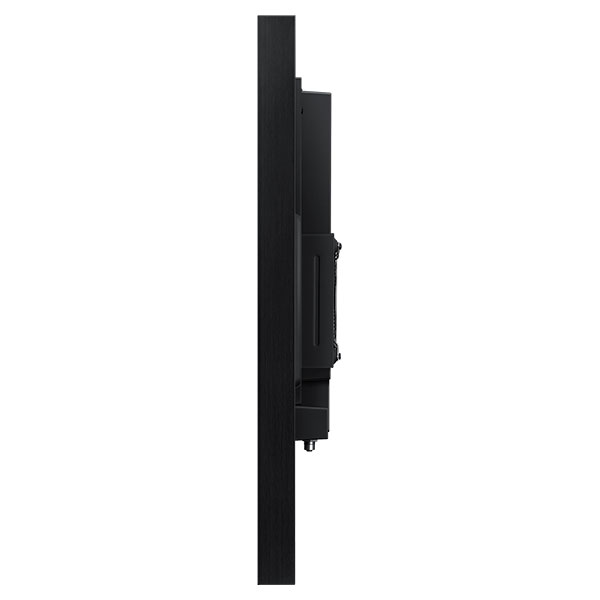

Slim Design for Installation Ease

The industry-leading chassis depth for an outdoor commercial display lends a stylish look, while providing installation ease in kiosks and more.

Specifications:


Samsung OH46D - OH-D Series 46” High Brightness Display Specifications
Display
Screen Size 46"
Brightness 3,000 cd/m2
Panel Technology S-VA
Contrast Ratio (Typical) 5,000:1
Resolution 1920x1080
Viewing Angle (H/V) 178°/178°
Aspect Ratio 16:9
Response Time 6ms
Connectivity
Input Video: HDMI1, HDMI2, HDBaseT(LAN Common)
Output Audio: Stereo Mini Jack
External Control HDBaseT, RJ45
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 412W / 600W
Environmental Conditions
Operating Temperature -22ºF~122ºF
Operating Humidity 10~80%
Features
Special IP56 Certified for Simple Enclosure Outdoor, Protection Glass(Anti Graffiti, Infrared Reduce), Polarized Sun Glasses Viewable in any direction, HD Base T for Long Distance Installalling, Portrait Installation Support, Button Lock, Lamp Error Detection, Auto Brightness Control with Ambient Brightness Sensor, Anti Image Retention, Temperature Sensor, MagicInfo S, Smart Scheduling, RJ45 MDC, PIP/PBP, Auto Source Switching & Recovery
Outdoor Yes
Smart Signage Platform Yes
Media Player Type Cortex-A9 1GHz Quad Core CPU, 1.5GB, DDR3, 8GB, USB 2.0, Linux OS
24/7 Operation Yes
Dimensions
Without Stand (W x H x D) Set: 42.1" x 24.6" x 3.6"
Power Box: 24.5" x 22.2" x 3.5"
Packaging (W x H x D) 46.2" x 12" x 28.6"
Bezel Width 24.9mm
Weight
Product Weight 86.9 lb.
Package Weight 119.7 lb.
Service
Standard Warranty 3 Years On-Site (Parts / Labor / Backlight)
Included in Box
Included in Box Quick Setup Guide, Regulatory Guide, Warranty Card, Remote Controller, Batteries, BLU Power Cable, Main Power Cable
Optional Stand Standard Enclosure
Green Management
ROHS Compliant Yes
Emission Standard Class A
Packaging Recyclability Packing Materials Recyclable
