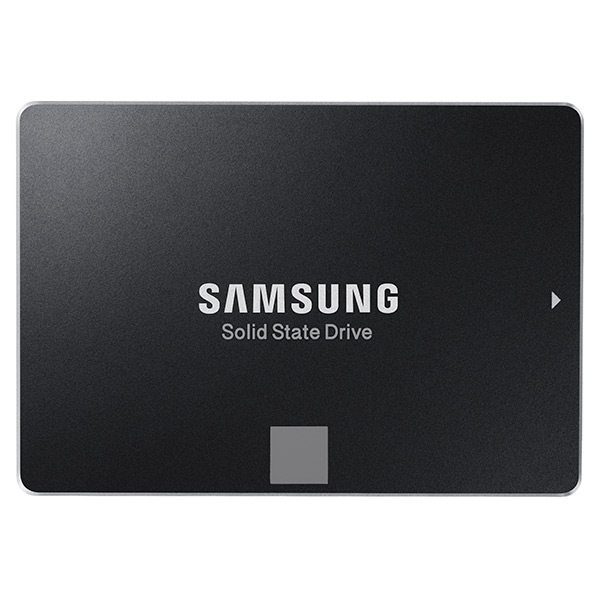

Samsung SSD 850 EVO 2.5" SATA III 120GB
Samsung 3D V-NAND Technology for Exceptional Performance.

Samsung SSD 850 EVO 2.5" SATA III 120GB

Samsung Products
Samsung Solid State Drives
SSD 850 EVO 2.5" SATA III 120GB
#MZ-75E120B/AM
Our Price: $86.00

More pricing below, click here!

Overview:

The Samsung 850 EVO 120GB SSD features our 3D V-NAND Technology as a step above planar 2D NAND architecture. Built from Samsung designed and manufactured components, a host of other features deliver blazing fast read/write speeds and high endurance, backed by a 5-year limited warranty up to 75TBW.

  • Samsung 3D V-NAND Technology for Exceptional Performance
  • AES 256-Bit Encryption to Protect Your Data
  • 5-Year Limited Warranty Up to 75TBW to Secure Your Investment
  • Featuring RoHS Compliance

Features

3D V-NAND Technology

Samsung's 3D V-NAND flash memory helps to overcome the limitations of conventional planar NAND architecture. It stacks 32 cell layers vertically over one another rather than trying to fit itself onto a fixed horizontal space, in order to provide high density and performance with a small footprint.

TurboWrite Technology

Samsung’s TurboWrite technology helps to maximize your computing ability. The 850 EVO delivers exceptionally high performance in sequential read (540MB/s) and write (520MB/s) speeds, as well as optimized random performance for high-end computing on client PCs.

Rapid Mode

Samsung’s Magician software provides a Rapid Mode for fast processing speeds on a system level by utilizing unused PC memory (DRAM) as cache storage, as well as high performance at various random queue depths.

5-Year Limited Warranty

The 850 EVO offers endurance and reliability with a high TBW (Total Bytes Written), all backed by a 5-year limited warranty up to 75TBW. It also mimimizes performance degradation over time, in order to provide sustained performance for business users.

Long Lasting and Energy Efficient

Enjoy long battery life on your notebook to maximize productivity, thanks to a controller optimized for Samsung's 3D V-NAND technology and enabling device sleep at a highly efficient 2mW. The 850 EVO is also highly energy efficient as compared to planar 2D NAND technology.

AES 256-Bit Encryption

Secure data without performance degradation thanks to AES 256-bit encryption that is compliant with TCG Opal 2.0. The 850 EVO is also compatible with Microsoft® e-drive IEEE1667 for extra protection to help secure your peace of mind.

Dynamic Thermal Guard

This constantly monitors and works to maintain ideal temperatures to protect the integrity of your data and safeguard from overheating. When temperatures rise above an optimal threshold, the Dynamic Thermal Guard automatically throttles them down to protect data while maintaining responsiveness.

One-Stop Install Navigator

Our One-Stop Install Navigator software allows you to migrate all the data and applications from your existing primary storage to the 850 EVO in three simple steps. The Samsung Magician software also allows you to optimize and manage your system in a manner that is best suited for the SSD.

Samsung Components

The 850 EVO is built from Samsung Components that are designed and manufactured in-house to allow complete optimized integration. This means high performance, low power consumption with an up to 1 GB LPDDR2 DRAM cache memory and excellent energy-efficiency with the MEX/MGX controller.

Specifications:


Samsung SSD 850 EVO 2.5" SATA III 120GB Specifications
Type
Product Type Solid State Drive
Interface SATA 6Gb/s Interface, compatible with SATA 3Gb/s & SATA 1.5Gb/s interface
Application
Consumer Client PCs
Storage
Capacity 120 GB (1GB=1 Billionbyte by IDEMA)
* Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Features
Sequential Read Speed Up to 540 MB/sec Sequential Read:
* Performance may vary based on system hardware & configuration
Sequential Write Speed Up to 520 MB/sec Sequential Write:
Performance may vary based on system hardware & configuration
Random Readd Speed Random Read (4KB, QD32): Up to 94,000 IOPS Random Read
* Performance may vary based on system hardware & configuration

Random Read (4KB, QD1): Up to 10,000 IOPS Random Read
* Performance may vary based on system hardware & configuration
Random Write Speed Random Write (4KB, QD32): Up to 88,000 IOPS Random Write
* Performance may vary based on system hardware & configuration

Random Write (4KB, QD1): Up to 40,000 IOPS Random Write
* Performance may vary based on system hardware & configuration
Memory Speed Samsung 32 layer 3D V-NAND
Samsung 256 MB Low Power DDR3 SDRAM
Controller Samsung MGX Controller
Trim Support Yes
AES Encryption AES 256 bit Encryption (Class 0) , TCG/Opal, IEEE1667 (Encrypted drive)
General
Power Consumption (W) 50 mWatts
* Actual power consumption may vary depending on system hardware & configuration

*Average: 2.1 Watts *Maximum: 2.4 Watts (Burst mode)
* Actual power consumption may vary depending on system hardware & configuration
Voltage 5V ± 5% Allowable voltage
Reliability (MTBF) 2 Million Hours Reliability (MTBF)
Environmental Specs
Operating Temperature 32ºF - 158ºF
Form Factor
Product 2.5 inch Form Factor
Dimensions (W x H x D)
Product 3.94" x 2.75" x 0.27"
Weight
Product 0.09 lb.
Warranty
Product 5 Years Limited Warranty or 75TBW Limited Warranty
