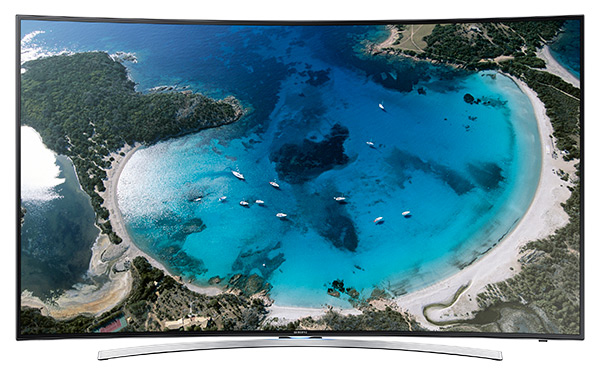

Samsung 55" 890V Series Curved LED Hospitality TV
Curved Display with Smart TV 2.0. The New Shape of Premium.

Samsung 55" 890V Series Curved LED Hospitality TV

Samsung Products
Samsung Hospitality TVs
55" 890V Series Curved LED Hospitality TV
#HG55NC890VFXZA
Please Call for Pricing!

More pricing below, click here!

Overview:

Deliver an immersive guest experience with the curved design of Samsung's 890V Series Hospitality TVs. Visitors will enjoy a panoramic view that helps the picture feel bigger, while SMART TV features like H-Browser open a world of customization for hoteliers.

  • Curved Panel
  • SMART TV 2.0
  • Samsung LYNK™ SINC 3.0 Interactive Content Management System
  • Samsung LYNK REACH 3.0 Content Management Solution

Features

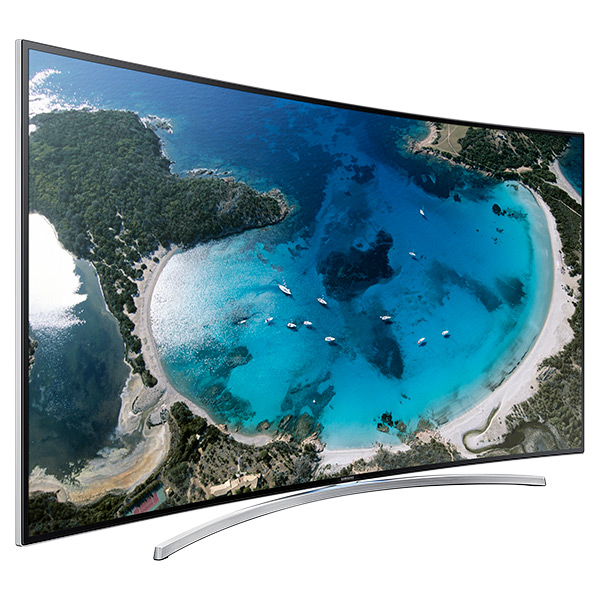

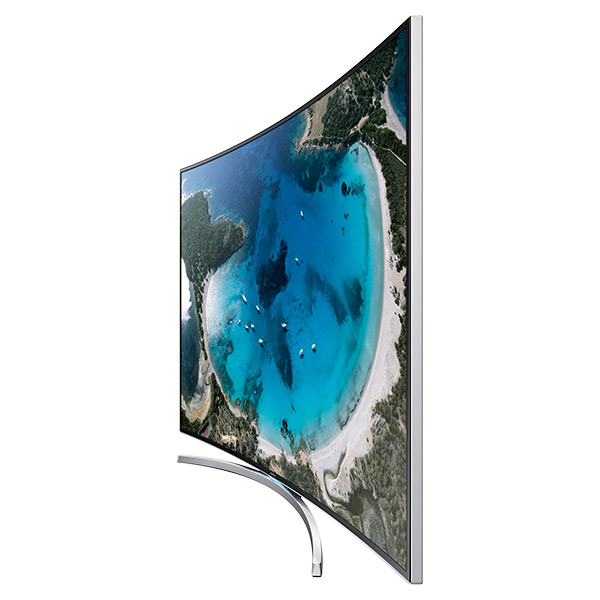

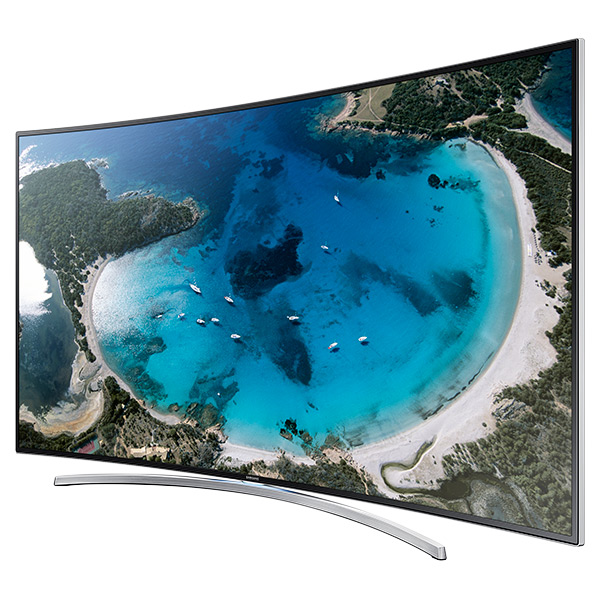

Curved Panel

Samsung’s curved screen is supported with proprietary technology that creates an accurate picture with exceptional color, without any picture distortion. It has a dramatically improved field of view that creates a panoramic effect and helps the picture feel bigger.

SMART TV 2.0

Experience the next generation of our ground-breaking TVs with Smart Interaction, full web browsers, all-new content, all-new content services, faster processors and much more.

Samsung LYNK SINC 3.0

This IP-based content management system communicates between our TVs and hotel property management software. Customize entertainment with EPG (Electronic Program Guide), Weather API, Flight Info, Real Time Messaging and our Hospitality Widget Library (Facebook, Twitter, AccuWeather, Google Maps™).

Samsung LYNK REACH 3.0

The Samsung LYNK REACH 3.0 (Remote Enhanced Active Control for Hotels) content management solution is used in conjunction with an existing coaxial-based infrastructure. It provides centralized TV controls, basic static content management capabilities and an Interactive Program Guide (IPG).

H-Browser Compatibility

Built on the HTML5 standard with Flash® support, H-Browser is a true SMART TV solution offered on our 890 Series through partnerships with certified system integrators. It features both free and video on demand (VOD) content, and is able to interface directly with the head end without a set top box.

Samsung AllShare® Cast

Seamlessly share content across your DLNA connected Samsung devices including WIDI without the need for a network cable or a connecting device. AllShare Cast allows screen mirroring and video streaming to enable seamless content sharing and mobile device integration.

Specifications:


Samsung 55" 890V Series Curved LED Hospitality TV Specifications
Display
Backlight Curved Edge LED
Screen Size (Diagonal) 55"
HD/FHD FHD
Resolution 1920 x 1080
Video
Picture Engine 3D HyperReal Engine
Static Contrast Ratio 4800:1
Response Time 6ms
Viewing angle (Horizontal/Vertical) 178/178
Brightness 450 cd/m2
Micro Dimming Micro Dimming Pro
Wide Color Enhancer Plus Yes
Auto Motion Plus 240Hz
Film Mode Yes
Audio
Dolby Dolby MS10
DTS Studio Sound / DNSe+ DTS Studio Sound
DTS Premium Sound / DTS Premium Sound 5.1 DTS Premium Sound 5.1
3D Sound Yes
Auto Volume Leveler Yes
Speaker Type Down Firing + New Waveguide
Sound Output (RMS) 40W (Left:10W, Right:10W, Woofer:20W)
Woofer Yes
Variable Speaker Output 4W (Mono, 8Ω)
Features
Smart Hub Yes
Apps Yes
Web Browser Yes
Samsung SMART View Yes
Voice Control Yes
Samsung 3D Yes
3D Converter Yes
Wireless LAN Built-in Yes
AllShare - Contents Sharing Yes
AllShare - Screen Mirroring Yes
ConnectShare™ (USB 2.0) Movie
Wake On LAN Yes
Soft AP Yes
BT HID Built-in Yes
USB HID Support Yes
TV SoundConnect Yes
OSD Language English, Spanish, French
Digital Clean View Yes
HDMI 1.4 3D Auto Setting Yes
HDMI 1.4 A / Return Ch. Support (ARC) Yes
Anynet+ (HDMI-CEC) Yes
BD Wise Plus Yes
Auto Channel Search Yes
Auto Power Off Yes
EPG Yes
Caption (Subtitle) Yes
Wake-up Timer Yes
Game Mode Yes
Picture-In-Picture Yes
Sleep Timer Yes
Hospitality Features
Hospitality Home Menu Yes
Samsung LYNK™ REACH Yes
Samsung LYNK™ REACH Server Compatibility Yes
Samsung LYNK™ SINC Compatibility Yes
H.Browser Compatibility Yes
Hospitality Plug&Play (Easy Set-up) Yes
RJ 12 / IR Pass Through Yes
Power on Mode Yes
USB Cloning Yes
Logo Display with Time Out Setting (BMP/Movie) Yes
Welcome Message Yes
Music Mode (Input: PC/AV/Component/HDMI) Yes
Music Mode BackLight on/off Yes
Auto Source Mode Yes
Energy Saving Mode (BLU control) Yes
Clock Back Up Supply Yes
Software Clock Yes
Multi Code Remote Control Yes
Screwed Remote Battery Cover Yes
Smoovie Compatibility Yes
Sound bar compatibility Yes
Samsung LYNK™ DRM Yes
Pro:Idiom Yes

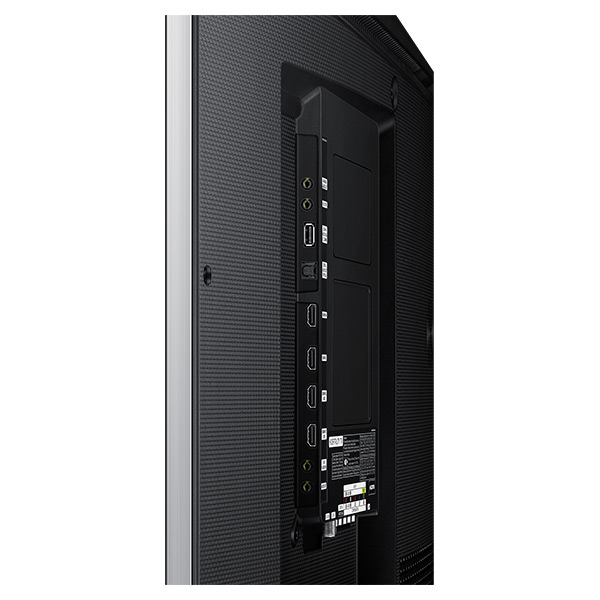

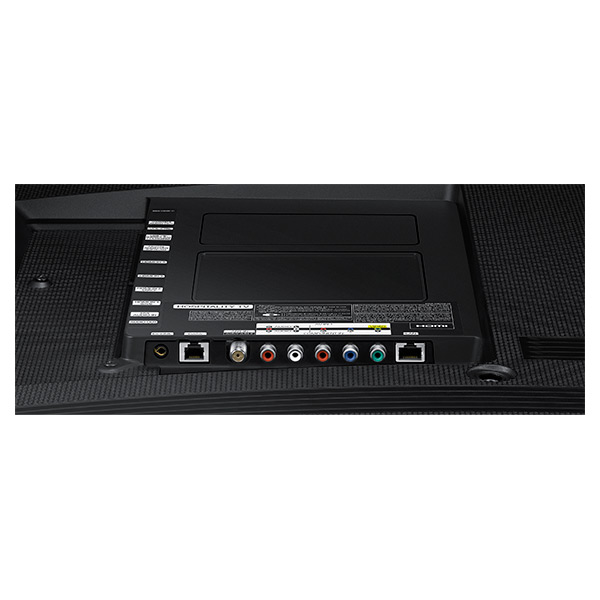

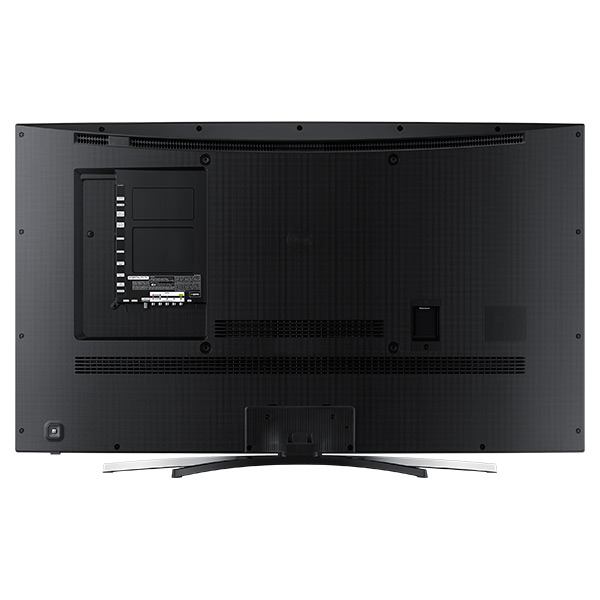

Input & Output
HDMI 4
USB 2.0 1
Component In (Y/Pb/Pr) 1
Composite In (AV) (Side/Rear) 0/1 (1 Common Use for Component Y)
Ethernet (LAN) 1
Digital Audio Out (Optical) (Side/Rear) 1
Audio Out (Mini Jack) 1
PC/DVI Audio In (Mini Jack) (Side/Rear) 1
RF In (Terrestrial/Cable input) 1
RS232C (Common Use for RJ12)
Variable Audio Out (Side/Rear) 1
Variable Audio Out Volume Control (Side/Rear) 1
RJ12 for External Control (Side/Rear) 1
RJP Jack (Remote Jack Pack) (Side/Rear) 1
System
DTV Tuner ATSC / Clear QAM
Analog Tuner Yes
Design
Front Color Black

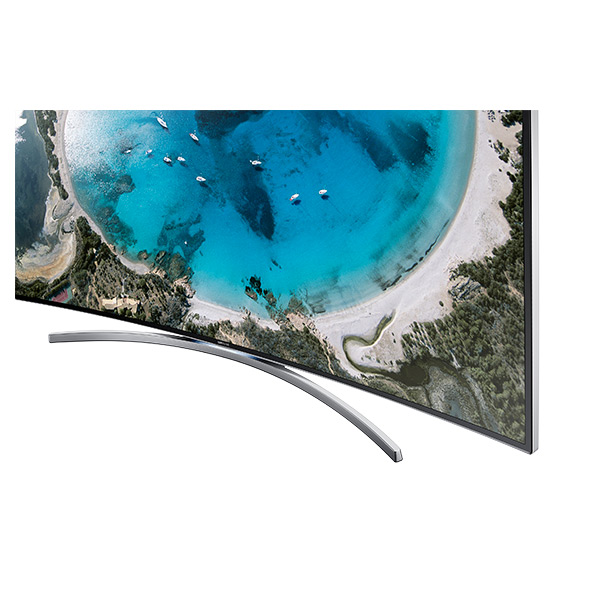

Stand Type C-Stand
Dimension (WxHxD)
Set Dimension with Stand (WxHxD) (mm / Inch) 1232.8 x 759.4 x 236.8 / 48.5 x 29.9 x 9.3
Set Dimension without Stand (WxHxD) (mm / Inch) 1232.8 x 713.3 x 89.8 / 48.5 x 58.1 x 3.5
Carton Dimensions
Package Dimension (WxHxD) (mm / Inch) 1367 x 843 x 232 / 53.8 x 33.2 x 9.1
Weight
Set Weight with Stand (kg / lbs) 18.9 / 41.7
Set Weight without Stand (kg / lbs) 17.4 / 8.3
Packaging Weight
Gross weight (kg / lbs) 24.4 / 53.8
VESA Mounting
Dimensions (mm) 400 x 400
Screw Size M8
Power
Power Supply AC110-120V 60Hz
Multi Voltage AC110-220V
Power Consumption (Rated) (Watts) 135
Power Consumption (Stand-by) (Watts) Under 0.5W
Power Consumption (Typical) (Watts) 62
UPC
UPC 887276048598
Eco
Eco Mark Energy Star v6.1
Eco Sensor Yes
Accessory
Remote Controller Model TM1480A+TM1240
Battery (for Remote Control) Yes
Mini Wall Mount Support Yes
Vesa Wall Mount Support Yes
Power Cable Yes
Data Cable Yes
Quick Install Guide Yes

Compare:


Samsung 890V Series Hospitality TVs Comparison
Model Number HG55NC890VF HG65NC890VF
Display
Backlight Curved Edge LED Curved Edge LED
Screen Size (Diagonal) 55" 65"
HD/FHD FHD FHD
Resolution 1920 x 1080 1920 x 1080
Video
Picture Engine 3D HyperReal Engine 3D HyperReal Engine
Static Contrast Ratio 4800:1 4800:1
Response Time 6ms 6ms
Viewing angle (Horizontal/Vertical) 178/178 178/178
Brightness 450 cd/m2 450 cd/m2
Micro Dimming Micro Dimming Pro Micro Dimming Pro
Wide Color Enhancer Plus Yes Yes
Auto Motion Plus 240Hz 240Hz
Film Mode Yes Yes
Audio
Dolby Dolby MS10 Dolby MS10
DTS Studio Sound / DNSe+ DTS Studio Sound DTS Studio Sound
DTS Premium Sound / DTS Premium Sound 5.1 DTS Premium Sound 5.1 DTS Premium Sound 5.1
3D Sound Yes Yes
Auto Volume Leveler Yes Yes
Speaker Type Down Firing + New Waveguide Down Firing + New Waveguide
Sound Output (RMS) 40W (Left:10W, Right:10W, Woofer:20W) 40W (Left:10W, Right:10W, Woofer:20W)
Woofer Yes Yes
Variable Speaker Output 4W (Mono, 8Ω) 4W (Mono, 8Ω)
Features
Smart Hub Yes Yes
Apps Yes Yes
Web Browser Yes Yes
Samsung SMART View Yes Yes
Voice Control Yes Yes
Samsung 3D Yes Yes
3D Converter Yes Yes
Wireless LAN Built-in Yes Yes
AllShare - Contents Sharing Yes Yes
AllShare - Screen Mirroring Yes Yes
ConnectShare™ (USB 2.0) Movie Movie
Wake On LAN Yes Yes
Soft AP Yes Yes
BT HID Built-in Yes Yes
USB HID Support Yes Yes
TV SoundConnect Yes Yes
OSD Language English, Spanish, French English, Spanish, French
Digital Clean View Yes Yes
HDMI 1.4 3D Auto Setting Yes Yes
HDMI 1.4 A / Return Ch. Support (ARC) Yes Yes
Anynet+ (HDMI-CEC) Yes Yes
BD Wise Plus Yes Yes
Auto Channel Search Yes Yes
Auto Power Off Yes Yes
EPG Yes Yes
Caption (Subtitle) Yes Yes
Wake-up Timer Yes Yes
Game Mode Yes Yes
Picture-In-Picture Yes Yes
Sleep Timer Yes Yes
Hospitality Features
Hospitality Home Menu Yes Yes
Samsung LYNK™ REACH Yes Yes
Samsung LYNK™ REACH Server Compatibility Yes Yes
Samsung LYNK™ SINC Compatibility Yes Yes
H.Browser Compatibility Yes Yes
Hospitality Plug&Play (Easy Set-up) Yes Yes
RJ 12 / IR Pass Through Yes Yes
Power on Mode Yes Yes
USB Cloning Yes Yes
Logo Display with Time Out Setting (BMP/Movie) Yes Yes
Welcome Message Yes Yes
Music Mode (Input: PC/AV/Component/HDMI) Yes Yes
Music Mode BackLight on/off Yes Yes
Auto Source Mode Yes Yes
Energy Saving Mode (BLU control) Yes Yes
Clock Back Up Supply Yes Yes
Software Clock Yes Yes
Multi Code Remote Control Yes Yes
Screwed Remote Battery Cover Yes Yes
Smoovie Compatibility Yes Yes
Sound bar compatibility Yes Yes
Samsung LYNK™ DRM Yes Yes
Pro:Idiom Yes Yes
Input & Output
HDMI 4 4
USB 2.0 1 1
Component In (Y/Pb/Pr) 1 1
Composite In (AV) (Side/Rear) 0/1 (1 Common Use for Component Y) 0/1 (1 Common Use for Component Y)
Ethernet (LAN) 1 1
Digital Audio Out (Optical) (Side/Rear) 1 1
Audio Out (Mini Jack) 1 1
PC/DVI Audio In (Mini Jack) (Side/Rear) 1 1
RF In (Terrestrial/Cable input) 1 1
RS232C (Common Use for RJ12) (Common Use for RJ12)
Variable Audio Out (Side/Rear) 1 1
Variable Audio Out Volume Control (Side/Rear) 1 1
RJ12 for External Control (Side/Rear) 1 1
RJP Jack (Remote Jack Pack) (Side/Rear) 1 1
System
DTV Tuner ATSC / Clear QAM ATSC / Clear QAM
Analog Tuner Yes Yes
Design
Front Color Black Black
Stand Type C-Stand C-Stand
Dimension (WxHxD)
Set Dimension with Stand (WxHxD) (mm / Inch) 1232.8 x 759.4 x 236.8 / 48.5 x 29.9 x 9.3 1451.0 x 893.7 x 307.8 / 57.1 x 35.1 x 12.1
Set Dimension without Stand (WxHxD) (mm / Inch) 1232.8 x 713.3 x 89.8 / 48.5 x 58.1 x 3.5 1451.0 x 838.4 x 107.3 / 57.1 x 33.0 x 4.2
Carton Dimensions
Package Dimension (WxHxD) (mm / Inch) 1367 x 843 x 232 / 53.8 x 33.2 x 9.1 1578 x 957 x 265 / 62.1 x 37.7 x 10.4
Weight
Set Weight with Stand (kg / lbs) 18.9 / 41.7 27.2 / 60.0
Set Weight without Stand (kg / lbs) 17.4 / 8.3 24 / 53
Packaging Weight
Gross weight (kg / lbs) 24.4 / 53.8 34.7 / 76.5
VESA Mounting
Dimensions (mm) 400 x 400 400 x 400
Screw Size M8 M8
Power
Power Supply AC110-120V 60Hz AC110-120V 60Hz
Multi Voltage AC110-220V AC110-220V
Power Consumption (Rated) (Watts) 135 174
Power Consumption (Stand-by) (Watts) Under 0.5W Under 0.5W
Power Consumption (Typical) (Watts) 62 71
UPC
UPC 887276048598 87276048581
Eco
Eco Mark Energy Star v6.1 Energy Star v6.1
Eco Sensor Yes Yes
Accessory
Remote Controller Model TM1480A+TM1240 TM1480A+TM1240
Battery (for Remote Control) Yes Yes
Mini Wall Mount Support Yes Yes
Vesa Wall Mount Support Yes Yes
Power Cable Yes Yes
Data Cable Yes Yes
Quick Install Guide Yes Yes

Documentation:

Download the Samsung 890V Series Hospitality TVs Datasheet (.PDF)
