Samsung 28" 673 Series Slim Direct-Lit LED Healthcare TV
Pro:Idiom™ Decoding for an Expanded Lineup of HD Channels.

Samsung 28" 673 Series Slim Direct-Lit LED Healthcare TV

Samsung Products
Samsung Healthcare TVs
28" 673 Series Slim Direct-Lit LED Healthcare TV
#HG28NC673AFXZA
Please Call for Pricing!

More pricing below, click here!

Overview:

Discover advanced TV solutions designed specifically for today's healthcare industry. Samsung's Healthcare TVs have been manufactured with hospital-specific features, such as an interchangeable pillow speaker interface and compatibility with many interactive patient education systems. Facility managers can benefit from up to 50% less energy use with slim direct-lit LED and an on-site warranty program.

  • UL-Listed for Hospital Use
  • Universal Pillow Speaker Interface
  • Samsung LYNK™ REACH 3.0 Content Management Solution
  • Pro:Idiom™ Decoding for an Expanded Lineup of HD Channels

Features

UL-Listed for Hospital Use

Samsung Healthcare TVs are specifically engineered to meet the stringent requirements for use in hospital environments.

Universal Pillow Speaker Interface

An easy-to-use interface for multiple styles of pillow speakers is built right into the TV. This eliminates the hassle of lost remotes and changing batteries.

Samsung LYNK™ REACH 3.0 Content Management Solution

The Samsung LYNK REACH 3.0 (Remote Enhanced Active Control for Hotels) content management solution is used in conjunction with an existing coaxial-based infrastructure. It provides centralized TV controls, basic static content management capabilities and an Interactive Program Guide (IPG).

Specifications:


Samsung 28" 673 Series Slim Direct-Lit LED Healthcare TV Specifications
Display
Backlight Slim Direct-Lit LED
Screen Size (Diagonal) 28"
HD/FHD HD
Resolution 1366 x 768
Video
Picture Engine HyperReal Engine
Micro Dimming N/A
Wide Color Enhancer Plus Yes
Auto Motion Plus N/A
Film Mode Yes
Audio
Dolby Dolby MS10
DTS Studio Sound / DNSe+ DTS Studio Sound
DTS Premium Sound / DTS Premium Sound 5.1 DTS Premium Sound 5.1
3D Sound N/A
Auto Volume Leveler Yes
Speaker Type Down Firing + Full Range
Sound Output (RMS) 5W x 2
Woofer N/A
Variable Speaker Output 4W (Mono, 8Ω)
Features
Smart Hub No
Apps No
Web Browser No
Samsung SMART View No
Wireless LAN Built-in No
AllShare - Contents Sharing No
AllShare - Screen Mirroring No
ConnectShare™ (USB 2.0) Movie
Wake On LAN No
Soft AP No
USB HID Support No
OSD Language English, Spanish, French
Digital Clean View Yes
HDMI 1.4 A / Return Ch. Support (ARC) Yes
Auto Channel Search Yes
Auto Power Off Yes
EPG No
Caption (Subtitle) Yes
Wake-up Timer Yes
Game Mode Yes
Picture-In-Picture Yes
Sleep Timer Yes
Healthcare Features
Hospitality Home Menu Yes
Samsung LYNK™ REACH Server Compatibility Yes
Samsung LYNK™ SINC Compatibility No
H.Browser Compatibility No
Hospitality Plug&Play (Easy Set-up) Yes
RJ 12 / IR Pass Through Yes
Power on Mode Yes
USB Cloning Yes
Logo Display with Time Out Setting (BMP/Movie) Yes
Welcome Message Yes
Music Mode (Input : PC/AV/Component/HDMI) Yes
Music Mode BackLight on/off Yes
Auto Source Mode Yes
Energy Saving Mode(BLU control) Yes
Clock Back Up Supply Yes
Software Clock Yes
Multi Code Remote Control Yes
Smoovie Compatibility Yes
Samsung LYNK™ DRM Yes
Pro:Idiom Yes

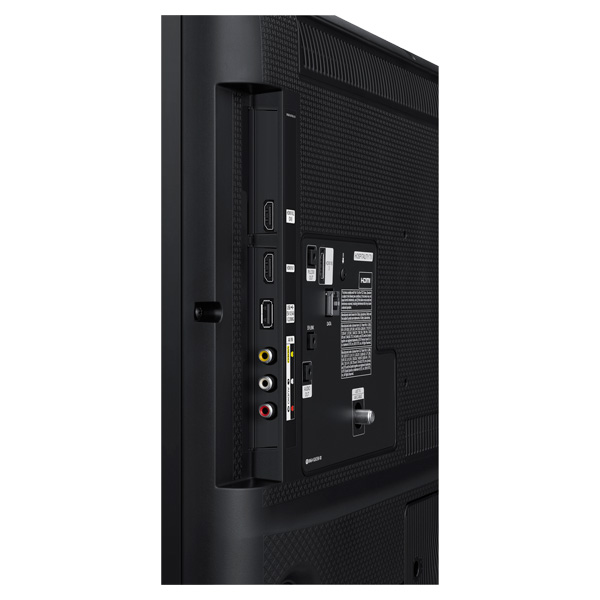

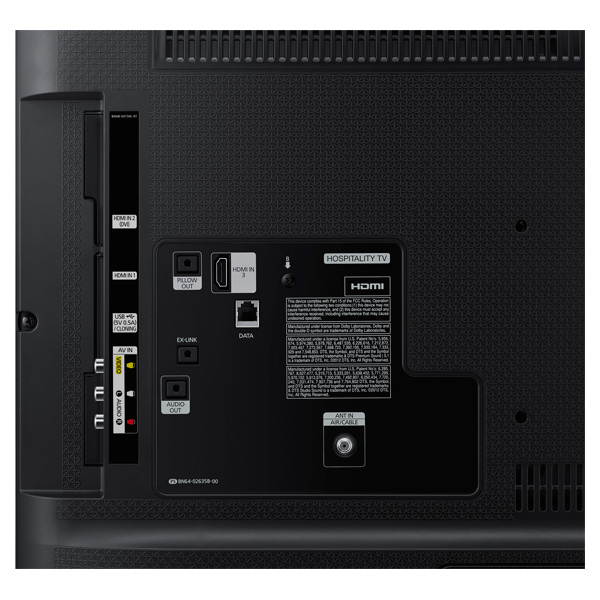

Input & Output
HDMI (Side/Rear) 2/1
USB (Side/Rear) 1/0
Component In (Y/Pb/Pr) (Side/Rear) No
Composite In (AV) (Side/Rear) 1/0 (Common Use for Component Y)
Ethernet (LAN) (Side/Rear) N/A
Digital Audio Out (Optical) (Side/Rear) No
Audio Out (Mini Jack) (Side/Rear) 0/1
RF In (Terrestrial/Cable input) (Side/Rear) 0/1
RS232C Yes Common Use for Component RJ12)
Pillow Speaker Jack (Side/Rear) Yes
Variable Audio Out (Side/Rear) No
Variable Audio Out Volume Control (Side/Rear) No
RJ12 for External Control (Side/Rear) 0/1
RJP Jack (Remote Jack Pack) (Side/Rear) 0/1
System
DTV Tuner ATSC / Clear QAM
Analog Tuner Yes
Design
Front Color Black
Stand Type N/A
Swivel (Left/Right) N/A
Dimensions
Set Dimension (WxHxD) (mm / inches) 643.4 x 396.5 x 62.9 / 25.33" x 15.61" x 2.48"
Package Dimension (WxHxD) (mm / inches) 815 x 463 x 108 / 32.09" x 18.23" x 4.25"
Weight
Set Weight (kg / lbs.) 3.7 / 8.16 lbs.
Package Weight (kg / lbs.) 4.8 / 10.6 lbs.
VESA
VESA Mount (mm) 100 x 100
VESA Screw Size M4
Power
Power Supply (V) AC110-120V 60Hz
Multi Voltage AC110-220V
UPC
UPC 887276689166
Accessory
Remote Controller Model N/A
Battery (for Remote Control) N/A
Mini Wall Mount Support No
Vesa Wall Mount Support Yes
Power Cable (Hospital Grade) Yes
Quick Install Guide Yes

Compare:


Samsung Healthcare Series TVs Comparison
Model Number HG28NC673AF HG32NB673BF HG32NC693DF HG40NC693DF
Display
Backlight Slim Direct-Lit LED Slim Direct-Lit LED Slim Direct-Lit LED Slim Direct-Lit LED
Screen Size (Diagonal) 28" 32" 32" 40"
HD/FHD HD HD FHD FHD
Resolution 1366 x 768 1368 x 768 1920 x 1080 1920 x 1080
Video
Picture Engine HyperReal Engine HyperReal Engine HyperReal Engine HyperReal Engine
Micro Dimming N/A N/A N/A N/A
Wide Color Enhancer Plus Yes Yes Yes Yes
Auto Motion Plus N/A N/A N/A N/A
Film Mode Yes Yes Yes Yes
Audio
Dolby Dolby MS10 Dolby MS10 Dolby MS10 Dolby MS10
DTS Studio Sound / DNSe+ DTS Studio Sound DTS Studio Sound DTS Studio Sound DTS Studio Sound
DTS Premium Sound / DTS Premium Sound 5.1 DTS Premium Sound 5.1 DTS Premium Sound 5.1 DTS Premium Sound 5.1 DTS Premium Sound 5.1
3D Sound N/A N/A N/A N/A
Auto Volume Leveler Yes Yes Yes Yes
Speaker Type Down Firing + Full Range Down Firing + Full Range Down Firing + Full Range Down Firing + Full Range
Sound Output (RMS) 5W x 2 10W x 2 10W x 2 10W x 2
Woofer N/A N/A N/A N/A
Variable Speaker Output 4W (Mono, 8Ω) 4W (Mono, 8Ω) 4W (Mono, 8Ω) 4W (Mono, 8Ω)
Features
Smart Hub No No Yes Yes
Apps No No Yes Yes
Web Browser No No Yes Yes
Samsung SMART View No No Yes Yes
Wireless LAN Built-in No No Yes Yes
AllShare - Contents Sharing No No Yes Yes
AllShare - Screen Mirroring No No Yes Yes
ConnectShare™ (USB 2.0) Movie Movie Movie Movie
Wake On LAN No No Yes Yes
Soft AP No No Yes Yes
USB HID Support No No Yes Yes
OSD Language English, Spanish, French English, Spanish, French English, Spanish, French English, Spanish, French
Digital Clean View Yes Yes Yes Yes
HDMI 1.4 A / Return Ch. Support (ARC) Yes Yes Yes Yes
Auto Channel Search Yes Yes Yes Yes
Auto Power Off Yes No Yes Yes
EPG No Yes Yes Yes
Caption (Subtitle) Yes Yes Yes Yes
Wake-up Timer Yes Yes Yes Yes
Game Mode Yes Yes Yes Yes
Picture-In-Picture Yes Yes Yes Yes
Sleep Timer Yes Yes Yes Yes
Healthcare Features
Hospitality Home Menu Yes No Yes Yes
Samsung LYNK™ REACH Server Compatibility Yes Yes Yes Yes
Samsung LYNK™ SINC Compatibility No No Yes Yes
H.Browser Compatibility No No Yes Yes
Hospitality Plug&Play (Easy Set-up) Yes Yes Yes Yes
RJ 12 / IR Pass Through Yes Yes Yes Yes
Power on Mode Yes Yes Yes Yes
USB Cloning Yes Yes Yes Yes
Logo Display with Time Out Setting (BMP/Movie) Yes Yes Yes Yes
Welcome Message Yes Yes Yes Yes
Music Mode (Input : PC/AV/Component/HDMI) Yes Yes Yes Yes
Music Mode BackLight on/off Yes Yes Yes Yes
Auto Source Mode Yes Yes Yes Yes
Energy Saving Mode(BLU control) Yes Yes Yes Yes
Clock Back Up Supply Yes Yes Yes Yes
Software Clock Yes Yes Yes Yes
Multi Code Remote Control Yes Yes Yes Yes
Smoovie Compatibility Yes Yes Yes Yes
Samsung LYNK™ DRM Yes Yes Yes Yes
Pro:Idiom Yes Yes Yes Yes
Input & Output
HDMI (Side/Rear) 2/1 2/2 2/2 2/2
USB (Side/Rear) 1/0 1/0 1/0 1/0
Component In (Y/Pb/Pr) (Side/Rear) No 0/1 0/1 0/1
Composite In (AV) (Side/Rear) 1/0 (Common Use for Component Y) 0/1 (Common Use for Component Y) 0/1 (Common Use for Component Y) 0/1 (Common Use for Component Y)
Ethernet (LAN) (Side/Rear) N/A N/A N/A 1/0
Digital Audio Out (Optical) (Side/Rear) No 0/1 0/1 0/1
Audio Out (Mini Jack) (Side/Rear) 0/1 1/0 1/0 1/0
RF In (Terrestrial/Cable input) (Side/Rear) 0/1 0/1 0/1 0/1
RS232C Yes Common Use for Component RJ12) Yes Common Use for Component RJ12) Yes Common Use for Component RJ12) Yes Common Use for Component RJ12)
Pillow Speaker Jack (Side/Rear) Yes Yes Yes Yes
Variable Audio Out (Side/Rear) No No No No
Variable Audio Out Volume Control (Side/Rear) No No No No
RJ12 for External Control (Side/Rear) 0/1 0/1 0/1 0/1
RJP Jack (Remote Jack Pack) (Side/Rear) 0/1 0/1 0/1 0/1
System
DTV Tuner ATSC / Clear QAM ATSC / Clear QAM ATSC / Clear QAM ATSC / Clear QAM
Analog Tuner Yes Yes Yes Yes
Design
Front Color Black Black Black Black
Stand Type N/A N/A N/A N/A
Swivel (Left/Right) N/A N/A N/A N/A
Dimensions
Set Dimension (WxHxD) (mm / inches) 643.4 x 396.5 x 62.9 / 25.33" x 15.61" x 2.48" 721.4 x 428.5 x 64.9 / 28.4" x 16.87" x 2.56" 721.4 x 428.5 x 64.9 / 28.4" x 16.87" x 2.56" 906.6 x 532.9 x 65.1 / 35.69" x 20.98" x 2.56"
Package Dimension (WxHxD) (mm / inches) 815 x 463 x 108 / 32.09" x 18.23" x 4.25" 899 x 506 x 113 / 35.39" x 19.92" x 4.45" 899 x 506 x 113 / 35.39" x 19.92" x 4.45" 1100 x 616 x 120 / 43.31" x 24.25" x 4.72"
Weight
Set Weight (kg / lbs.) 3.7 / 8.16 lbs. 5 / 11.02 lbs. 5 / 11.02 lbs. 7.8 / 17.19 lbs.
Package Weight (kg / lbs.) 4.8 / 10.6 lbs. 6.6 / 14.55 lbs. 6.6 / 14.55 lbs. 9.4 / 20.72 lbs.
VESA
VESA Mount (mm) 100 x 100 200 x 200 200 x 200 200 x 200
VESA Screw Size M4 M8 M8 M8
Power
Power Supply (V) AC110-120V 60Hz AC110-120V 60Hz AC110-120V 60Hz AC110-120V 60Hz
Multi Voltage AC110-220V AC110-220V AC110-220V AC110-220V
UPC
UPC 887276689166 887276684406 887276684406 887276684413
Accessory
Remote Controller Model N/A N/A N/A N/A
Battery (for Remote Control) N/A N/A N/A N/A
Mini Wall Mount Support No Yes Yes Yes
Vesa Wall Mount Support Yes Yes Yes Yes
Power Cable (Hospital Grade) Yes Yes Yes Yes
Quick Install Guide Yes Yes Yes Yes

Documentation:

Download the Samsung Healthcare Series TVs Datasheet (.PDF)
