Samsung H40B - HB Series 40" HDTV Direct-Lit LED Display
A High-definition TV. A High-resolution Display. You Have Space And Budget For Both.

Samsung H40B - HB Series 40" HDTV Direct-Lit LED Display

This product is no longer available, please contact us for a replacement.

Overview:

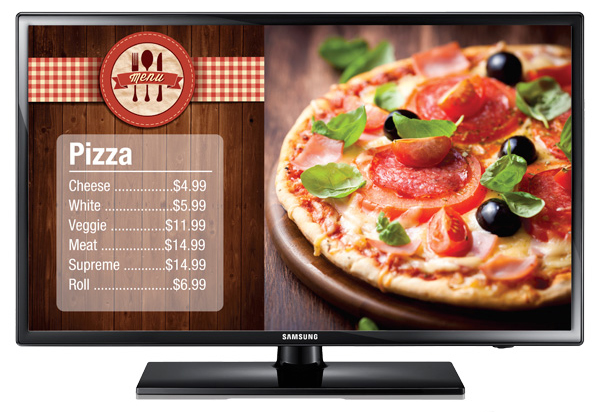

Showcase HDTV and high-resolution video in one budget-friendly commercial display. From sports to current events to your own content highlighting a menu or a retail sale, Samsung's sophisticated H Series HDTV narrow-bezel displays provide for a high-quality look. And with an integrated high-definition TV tuner, you can broadcast TV content in sharp, beautiful high resolution on the 40" screen.

  • HDTV Display
  • USB Digital Signage Media Player
  • Thin Bezels
  • RS232 Control

Features

HDTV Display

The built-in TV tuner, embedded speakers and closed captioning provide the option of easily displaying broadcast TV. And the high-definition display is excellent for displaying custom content of any type, either stand-alone or as part of a video wall.

USB Digital Signage Media Player

The USB port makes it easy to play video, pictures and audio from a portable USB flash drive.

Thin Bezels

Thin side bezels of just 17.7 mm (32" model) and 18.5 mm (40"/46" models) add a sophisticated look, enabling a more impactful message.

Direct-Lit LED

The direct-lit LED in the Samsung HDTV Series displays provide the brightness, the color and the energy savings of LED, at a cost affordable to any business.

Specifications:


Samsung H40B - HB Series 40" HDTV Direct-Lit LED Display Specifications
Display
Screen Size 40" Wide
Display Type Direct Lit LED
Resolution 1920 x 1080
Aspect Ratio 16:9
Brightness 300 nits
Contrast Ratio (Typical/Dynamic) 3500:1/Mega Infinity
Viewing Angle (Horizontal/Vertical) 178˚/178˚ (CR>10)
Response Time 8ms (GTG)
Connectivity
Input HDMI x 3 (1 HDMI supports DVI) Component (CVBS Common), AV2, ANT In, USB, PC/DVI Audio In, Component Audio In, AV Audio In
Output Digital Audio Out (Optical), Audio Out
External Control RS232 thru Stereo Jack
Power
Voltage AC 100 - 240 VAC (+/- 10 %), 60/50 Hz
Power Supply Type Built-In
Power Consumption (Typical/Max) 44W/87W
Power Consumption (Standby) < 0.3W
Environmental
Operating Temperature 0°C~ 40°C
Operating Humidity 10~80%
Features
Specia Built in Speaker, Plug and Play (through USB), PIP/PBP, Narrow Bezel, Light Weight, Built-in Button Lock
Tuner ATSC/NTSC/QAM
Media Player USB Auto Play (Movie, Picture, Audio, No scheduling)
VESA Standard Wall Mount Interface 200 x 200mm
Dimensions
Packaging Dimensions (without stand) 36.5" x 21.7" x 3.7"
Product Dimensions (W x H x D) 43.5" x 25.2" x 6.5"
Bezel Width 18.5mm L/R/T (29.3mm Bottom)
Weight
Product Weight 24.2 lbs.
Shipping Weight 29.5 lbs.
Service
Standard Warranty 2 Years Onsite Parts/Labor
Accessories
Included Quick Setup Guide, Warranty Card, Power Cord, CD Manual, Remote Controller (Retail)
Green Management
Energy Star V 5.3 Compliant Yes
Emission Standard FCC
Packaging Recyclability Packing Materials Recyclable
RoHS Compliant Yes

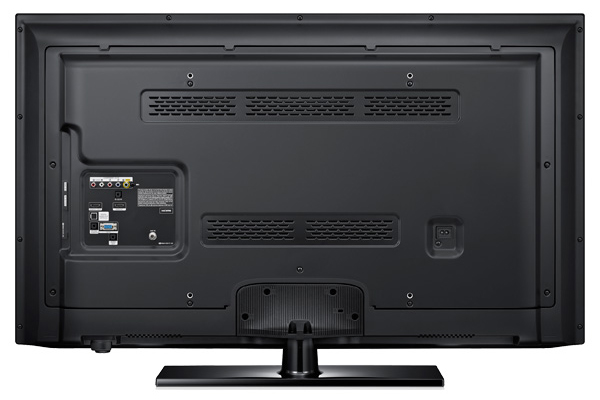

Connectivity
  1. Component/AV in
  2. RS-232 In
  3. AV2
  4. USB
  5. HDMI x 3
  6. Digital Audio Out
  7. PC/DVI Audio In
  8. PC In
  9. Audio Out
  10. ANT In
H Series Connectivity

Compare:


H Series HDTV Commercial Displays
Model Number H32B H40B H46B
Display
Screen Size 32" Wide 40" Wide 46" Wide
Display Type Direct Lit LED Direct Lit LED Direct Lit LED
Resolution 1366 x 768 1920 x 1080 1920 x 1080
Aspect Ratio 16:9 16:9 16:9
Brightness 300 nits 300 nits 300 nits
Contrast Ratio (Typical/Dynamic) 3500:1/Mega Infinity 3500:1/Mega Infinity 3500:1/Mega Infinity
Viewing Angle (Horizontal/Vertical) 178˚/178˚ (CR>10) 178˚/178˚ (CR>10) 178˚/178˚ (CR>10)
Response Time 8ms (GTG) 8ms (GTG) 8ms (GTG)
Connectivity
Input HDMI x 3 (1 HDMI supports DVI) Component (CVBS Common), AV2, ANT In, USB, PC/DVI Audio In, Component Audio In, AV Audio In HDMI x 3 (1 HDMI supports DVI) Component (CVBS Common), AV2, ANT In, USB, PC/DVI Audio In, Component Audio In, AV Audio In HDMI x 3 (1 HDMI supports DVI) Component (CVBS Common), AV2, ANT In, USB, PC/DVI Audio In, Component Audio In, AV Audio In
Output Digital Audio Out (Optical), Audio Out Digital Audio Out (Optical), Audio Out Digital Audio Out (Optical), Audio Out
External Control RS232 thru Stereo Jack RS232 thru Stereo Jack RS232 thru Stereo Jack
Power
Voltage AC 100 - 240 VAC (+/- 10 %), 60/50 Hz AC 100 - 240 VAC (+/- 10 %), 60/50 Hz AC 100 - 240 VAC (+/- 10 %), 60/50 Hz
Power Supply Type Built-In Built-In Built-In
Power Consumption (Typical/Max) 40W/54W 44W/87W 53W/95W
Power Consumption (Standby) < 0.3W < 0.3W < 0.3W
Environmental
Operating Temperature 0°C~ 40°C 0°C~ 40°C 0°C~ 40°C
Operating Humidity 10~80% 10~80% 10~80%
Features
Special Built in Speaker, Plug and Play (through USB), PIP/PBP, Narrow Bezel, Light Weight, Built-in Button Lock Built in Speaker, Plug and Play (through USB), PIP/PBP, Narrow Bezel, Light Weight, Built-in Button Lock Built in Speaker, Plug and Play (through USB), PIP/PBP, Narrow Bezel, Light Weight, Built-in Button Lock
Tuner ATSC/NTSC/QAM ATSC/NTSC/QAM ATSC/NTSC/QAM
Media Player USB Auto Play (Movie, Picture, Audio, No scheduling) USB Auto Play (Movie, Picture, Audio, No scheduling) USB Auto Play (Movie, Picture, Audio, No scheduling)
VESA Standard Wall Mount Interface 200 x 200mm 200 x 200mm 200 x 400mm
Dimensions
Packaging Dimensions (without stand) 29.1" x 17.2" x 3.7" 36.5" x 21.7" x 3.7" 41.7" x 24.6" x 3.7"
Product Dimensions (W x H x D) 35.5" x 20.9" x 6.4" 43.5" x 25.2" x 6.5" 48.7" x 28.5" x 6.5"
Bezel Width 17.7mm L/R/T (21.2mm Bottom) 18.5mm L/R/T (29.3mm Bottom) 18.5mm L/R/T (29.7mm Bottom)
Weight
Product Weight 13.9 lbs. 24.2 lbs. 30.8 lbs.
Shipping Weight 17.2 lbs. 29.5 lbs. 35.4 lbs.
Service
Standard Warranty 2 Years Onsite Parts/Labor 2 Years Onsite Parts/Labor 2 Years Onsite Parts/Labor
Accessories
Included Quick Setup Guide, Warranty Card, Power Cord, CD Manual, Remote Controller (Retail) Quick Setup Guide, Warranty Card, Power Cord, CD Manual, Remote Controller (Retail) Quick Setup Guide, Warranty Card, Power Cord, CD Manual, Remote Controller (Retail)
Green Management
Energy Star V 5.3 Compliant Yes Yes Yes
Emission Standard FCC FCC FCC
Packaging Recyclability Packing Materials Recyclable Packing Materials Recyclable Packing Materials Recyclable
RoHS Compliant Yes Yes Yes
Connectivity
  1. Component/AV in
  2. RS-232 In
  3. AV2
  4. USB
  5. HDMI x 3
  6. Digital Audio Out
  7. PC/DVI Audio In
  8. PC In
  9. Audio Out
  10. ANT In
H Series Connectivity

Documentation:

Download the Samsung H Series HDTV Commercial Displays Datasheet (.PDF)
