Samsung DM82D - DM-D Series 82" Edge-Lit LED Display
Ensure Maximum Uptime.

Samsung DM82D - DM-D Series 82" Edge-Lit LED Display

Samsung Products
Samsung Digital Signage

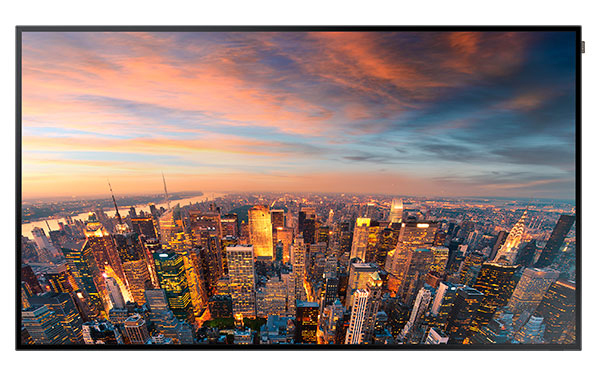

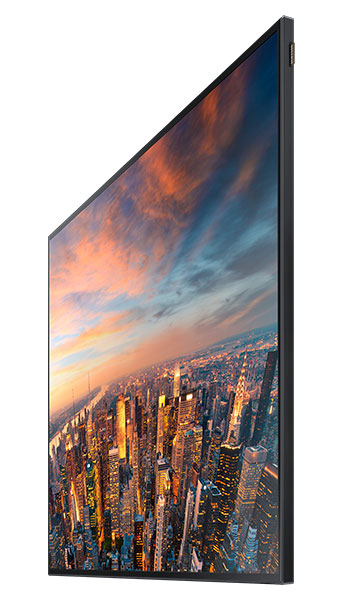

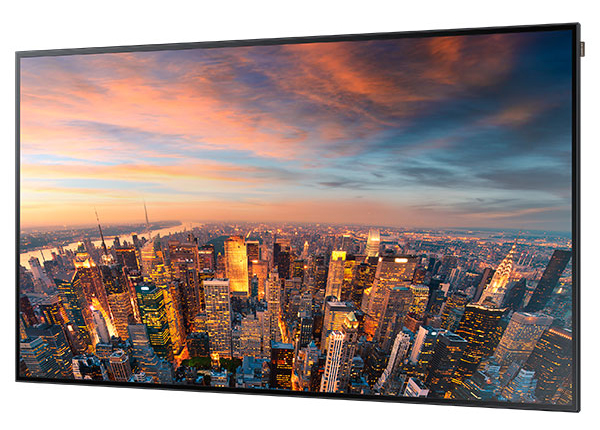

DM82D - DM-D Series 82" Edge-Lit LED Display
#LH82DMDPLBA/GO
Our Price: $4,290.00

More pricing below, click here!

Overview:

Samsung's DM82D delivers 24/7 reliability on a large 82" screen for continuous operation. Display content without an external PC thanks to an upgraded Samsung SMART Signage Platform (SSP) and full range of connectivity options. All combined with a sleek industrial design and slim 1.9" chassis depth.

  • Large 82" Display Supporting 24/7 Reliability and Continuous Operation
  • Enhanced SSP System-on-Chip (SoC) Performance with Quad Core Processor
  • Sleek Industrial Design with Our New Hidden Logo Tag for a Clean Installation
  • Built-in Wi-Fi and AllShare® Cast for Simple Content Mirroring from Mobile Devices

Features

Reliable 24/7 Continuous Operation

Innovative Samsung cooling technologies allow your message to be displayed with highly reliable 24/7 continuous operation. So business users can meet 24/7 operating requirements in venues ranging from retail stores to Command & Control facilities.

Enhanced SSP with Quad Core Processor

Experience enhanced System-on-Chip (SoC) performance with a quad core processor. SMART Signage Platform (SSP) is an integrated, open platform providing a powerful streamlined solution to reduce TCO in digital signage deployments through savings in hardware installation and operating costs.

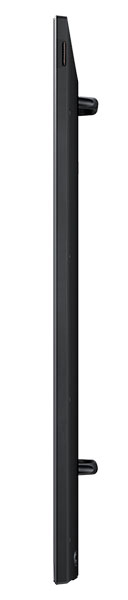

Sleek Industrial Design

Edge-Lit LED technology delivers a sleek industrial design with a 1.9" chassis depth for an elegant look. LED can also slim your TCO thanks to energy efficiency.

PC-Less Touch Support

The optional touch overlay accessory delivers a cost effective, PC-less touch solution that transforms your display into an interactive whiteboard. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.

Full Connectivity

Discover versatile connectivity options to display a full range of exceptional content that speaks to your audience. Connections include D-Sub, Component, Composite, HDMI, DVI, USB, SD, RS232C/RJ45 and more.

Built-In Wi-Fi

Expanding your versatility even more, you can enjoy easy media sharing and screen control with built-in Wi-Fi and AllShare® Cast. Use AllShare® Cast over a Wi-Fi connection for simple content mirroring from a tablet or mobile phone to your display.

Clean UI Design

A user-friendly interface provides an intuitive user experience from changing display settings to installing video walls and managing content schedules and templates. Helping to streamline installation and maintenance, users can effectively coordinate their signage.

Specifications:


Samsung DM82D - DM-D Series 82" Edge-Lit LED Display Specifications
Display
Screen Size 82"
Panel Technology 120Hz Edge-lit LED
Resolution 1920 x 1080 (16:9)
Brightness 500 nits
Contrast Ratio 5000:1
Viewing Angle (Horizontal/Vertical) 178°/178°
Orientation Landscape / Portrait
Response Time (G-to-G) 8ms
Connectivity
Input RGB VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2
Video HDMI (3), Component/Composite
Audio Stereo Mini Jack
Output RGB DisplayPort 1.2 (Loop-out)
Audio Stereo Mini Jack
External Control RS232C (In/Out) Thru Stereo Jack, RJ45
External Sensor IR, Ambient Light
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 138W / 363W
Power Consumption (Standby) < 0.5W
Environmental Conditions
Operating Temperature 0°C~40°C
Humidity 10~80%
Features
Special Hardware Super Clear Coating, Temperature Sensor, Videowall (15 x 15), Pivot Display, Clock Battery (80hrs Clock Keeping), Built in Speaker (10W x 2), WiFi Module Embedded, SD Card Slot
Software Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (HDCP Support), Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, MagicPresenter
Tuner Yes
SMART Signage Platform Compliant Yes
Internal Media Player Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 4GB FDM, USB 2.0 (x2), Linux OS
VESA Standard Wall Mount Interface 600 x 400mm
24/7 Operation Yes
Dimensions
Product Dimensions (without stand) 73.0" x 41.9" x 1.9" (3.5" depth incl. handles)
Packaging Dimensions 78.8" x 48.7" x 18.6"
Bezel Width (mm) 20.2mm
Weight
Product Weight 106.7 lbs.
Shipping Weight 136.4 lbs.
Service
Standard Warranty 3 Years On-Site (Parts / Labor / Backlight)
Accessories
Included Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries, RS232C(IN) Adapter, COVER-JACK
Optional Mount WMN-5770D
Optional Stand STN-L7585F
Optional Media Player PIM-BF7, PIM-BF7P
Optional HDBase-T PIM-HDBT
Optional Touch Overlay N/A
Green Management
Emission Standard EMC
RoHS Compliant Yes
Packaging Recyclability Packing Materials Recyclable

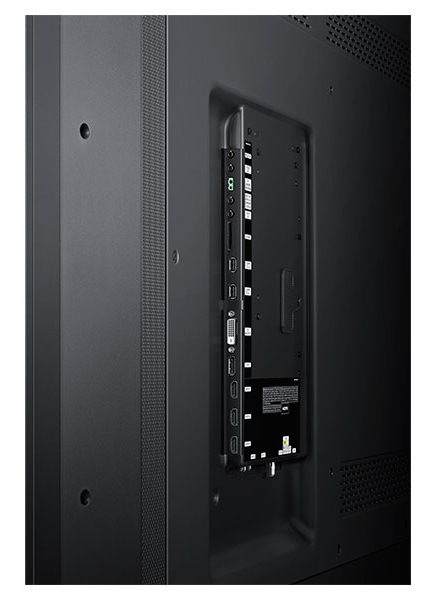

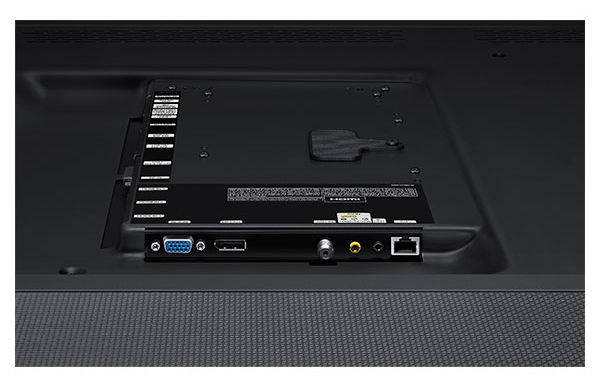

Connectivity
DM82D Connectivity

Compare:


Samsung DM-D Large-Size Commercial LED LCD Displays Comparison
Model Number DM65D DM75D DM82D
Display
Screen Size 65" 75" 82"
Panel Technology 60Hz Slim D-LED BLU 60Hz Slim D-LED BLU 120Hz Edge-lit LED
Resolution 1920 x 1080 (16:9) 1920 x 1080 (16:9) 1920 x 1080 (16:9)
Brightness 450 nits 450 nits 500 nits
Contrast Ratio 4000:1 5000:1 5000:1
Viewing Angle (Horizontal/Vertical) 178°/178° 178°/178° 178°/178°
Orientation Landscape / Portrait Landscape / Portrait Landscape / Portrait
Response Time (G-to-G) 6.5ms 8ms 8ms
Connectivity
Input RGB VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2 VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2 VGA (D-Sub 15 Pin), DVI-D, DisplayPort 1.2
Video HDMI, Component/Composite HDMI, Component/Composite HDMI (3), Component/Composite
Audio Stereo Mini Jack Stereo Mini Jack Stereo Mini Jack
Output RGB DisplayPort 1.2 (Loop-out) DisplayPort 1.2 (Loop-out) DisplayPort 1.2 (Loop-out)
Audio Stereo Mini Jack Stereo Mini Jack Stereo Mini Jack
External Contro RS232C (In/Out) Thru Stereo Jack, RJ45 RS232C (In/Out) Thru Stereo Jack, RJ45 RS232C (In/Out) Thru Stereo Jack, RJ45
External Sensor IR, Ambient Light IR, Ambient Light IR, Ambient Light
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 105W / 264W 147W / 308W 138W / 363W
Power Consumption (Standby) < 0.5W < 0.5W < 0.5W
Environmental Conditions
Operating Temperature 0°C~40°C 0°C~40°C 0°C~40°C
Humidity 10~80% 10~80% 10~80%
Features
Special Hardware Slim & Light LFD with Built-in MagicInfo Player S2 Super Clear Coating, Temperature Sensor, Videowall (15 x 15), Pivot Display, Clock Battery (80 hrs Clock Keeping), Built in Speaker, WiFi Module Embedded, SD Card Slot Slim & Light LFD with Built-in MagicInfo Player S2 Super Clear Coating, Temperature Sensor, Videowall (15 x 15), Pivot Display, Clock Battery (80 hrs Clock Keeping), Built in Speaker, WiFi Module Embedded, SD Card Slot Super Clear Coating, Temperature Sensor, Videowall (15 x 15), Pivot Display, Clock Battery (80hrs Clock Keeping), Built in Speaker (10W x 2), WiFi Module Embedded, SD Card Slot
Software Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (HDCP Support), Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (HDCP Support), Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play, PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain (HDCP Support), Built In MagicInfo Player S2, Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, MagicPresenter
Tuner Yes Yes Yes
SMART Signage Platform Compliant Yes Yes Yes
Internal Media Player Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 4GB FDM, USB 2.0, Linux OS Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 4GB FDM, USB 2.0, Linux OS Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 4GB FDM, USB 2.0 (x2), Linux OS
VESA Standard Wall Mount Interface 400 x 400mm 400 x 400mm 600 x 400mm
24/7 Operation Yes Yes Yes
Dimensions
Product Dimensions (without stand) 57.8" x 33.4" x 2.2" 66.0" x 37.8" x 2.3" 73.0" x 41.9" x 1.9" (3.5" depth incl. handles)
Packaging Dimensions 63.0" x 38.6" x 8.5" 71.3" x 42.7" x 9.8" 78.8" x 48.7" x 18.6"
Bezel Width (mm) 18.0 (Top/Side) / 23.5 (Bottom) 12.0 (Top/Side) / 17.3 (Bottom) 20.2mm
Weight
Product Weight 60.5 lbs. 75.4 lbs. 106.7 lbs.
Shipping Weight 89.1 lbs. 97.5 lbs. 136.4 lbs.
Service
Standard Warranty 3 Years On-Site (Parts / Labor / Backlight) 3 Years On-Site (Parts / Labor / Backlight) 3 Years On-Site (Parts / Labor / Backlight)
Accessories
Included Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries, RS232C(IN) Adapter, COVER-JACK Quick Setup Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries, RS232C(IN) Adapter, COVER-JACK Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries, RS232C(IN) Adapter, COVER-JACK
Optional Mount WMN-4675MD WMN-4675MD WMN-5770D
Optional Stand STN-L6500E STN-L7585F STN-L7585F
Optional Media Player PIM-BF7, PIM-BF7P PIM-BF7, PIM-BF7P PIM-BF7, PIM-BF7P
Optional HDBase-T PIM-HDBT PIM-HDBT PIM-HDBT
Optional Touch Overlay CY-TE65LCC CY-TD75LDAF N/A
Green Management
RoHS Compliant Yes Yes Yes
Packaging Recyclability Packing Materials Recyclable Packing Materials Recyclable Packing Materials Recyclable
Connectivity

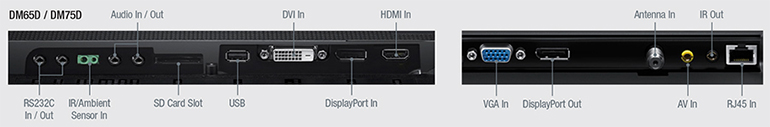

DM65D / DM75D Connectivity
DM82D Connectivity
