Samsung DM75E - DM-E Series 75" Slim Direct-Lit LED Display
All combined with a sleek industrial design and slim 2.2" chassis depth.

Samsung DM75E - DM-E Series 75" Slim Direct-Lit LED Display

Samsung Products
Samsung Digital Signage
DM75E - DM-E Series 75" Slim Direct-Lit LED Display
#LH75DMEPLGA/GO
Our Price: $4,195.00

More pricing below, click here!

Overview:

Samsung's DM75E delivers 24/7 reliability on a large 75" screen for continuous operation. Display content without an external PC thanks to an upgraded Samsung SMART Signage Platform (SSP) and full range of connectivity options. All combined with a sleek industrial design and slim 2.2" chassis depth.

  • Reliable 24/7 operation and enhanced System-on-Chip performance with a quad core CPU
  • Built-In Wi-Fi® for expanded connectivity and simple content mirroring from mobile devices
  • Transform your display with an optional touch overlay for a PC-less touch solution
  • Slim 2.2" chassis depth with slim direct-lit LED technology

Features

Large Signage With Reliable 24/7 Operation

Innovative Samsung cooling technologies on these large-size displays allow your message to be displayed with highly reliable 24/7 continuous operation, so your business can meet around the clock operating requirements.

Built-In Wi-Fi®

Enjoy the versatility of expanded connectivity to mobile devices, from easy media sharing and screen control to simple content mirroring from a tablet or mobile phone to your display.

Enhanced System-on-Chip Performance with a Quad Core CPU

Powered by a System-on-Chip (SoC) semiconductor and quad core CPU with 8GB of storage, Samsung's SMART Signage Platform is an open and integrated player side media platform that provides a powerful, streamlined solution to reduce TCO for digital signage deployments, through savings in hardware, installation and operating costs.

Easy Content Control

The Samsung SMART Signage platform eliminates the need for an external media player. With Samsung MagicInfo content management software, selecting and scheduling software is simple to control with either an RS232 or LAN connection. Additionality connectivity includes HDMI, USB and D-Sub (analog).

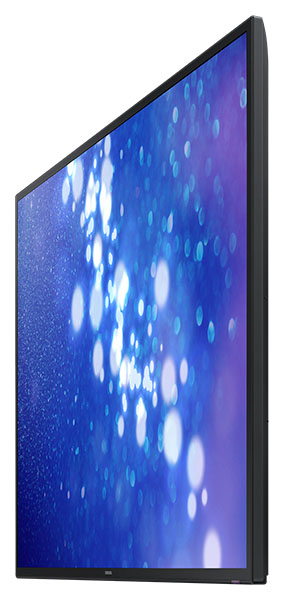

Sleek Industrial Design With Slim Direct-Lit LED Technology

Achieve sharp, detail-rich images and crisp, legible type with this slim direct-lit display featuring 1920 x 1080 Full HD resolution with 450 nits brightness and a 5,000:1 contrast ratio. A 2.2" chassis depth provides a sleek, elegant look. And LED technology reduces power consumption and heat ouput.

Optional Touch Overlay

The optional touch overlay accessory delivers a cost effective, PC-less touch solution that transforms your display into an interactive whiteboard with up to 10 simultaneous touchpoints. Create more collaborative presentations or a dynamic customer experience with tangible results for your business.

Specifications:


Samsung DM75E - DM-E Series 75" Slim Direct-Lit LED Display Specifications
Display
Screen Size 75"
Panel Technology 60Hz Slim D-LED BLU
Resolution 1920x1080 (16:9)
Brightness 450 nits
Contrast Ratio 5000:1
Viewing Angle (Horizontal/Vertical) 178° / 178°
Orientation Landscape / Portrait
Response Time (G-to-G) 4ms
Connectivity

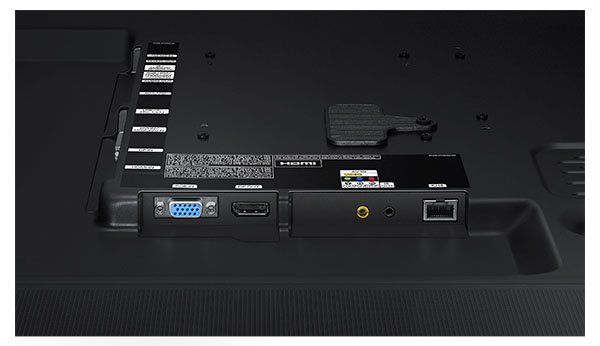

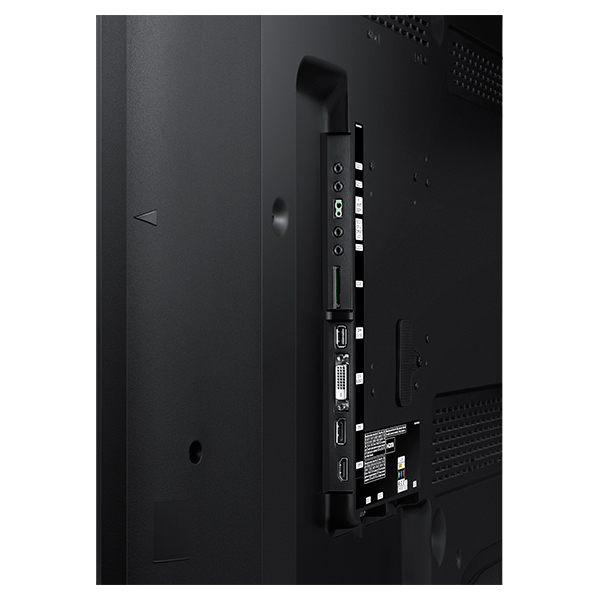

Input Analog D-SUB, DVI-D (HDMI Common), DisplayPort 1.2, HDMI1, HDMI2 (thru DVI-D Input, Adapter Not Included), Component (CVBS Common) Stereo Mini Jack, USB 2.0 x 1
Output DisplayPort 1.2 (Loop-Out), Stereo Mini Jack
External Control RS232C (In/Out) thru Stereo Jack, RJ45
External Sensor IR, Ambient Light
Sound
Speaker Type Built in Speaker (10W + 10W)
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 110W / 308W
Power Consumption (Standby) < 0.5W
Environmental Conditions
Operating Temperature 0°C - 40°C
Operating Humidity 10%~80%
Features
  Slim and Light LFD with Built-in MagicInfo Player S3
Special Hardware Super Clear Coating, Temperature Sensor, Video Wall (15x15), Portrait Mode, Clock Battery (168hrs Clock Keeping), Built in Speaker (10W x 2), WiFi Module Embedded, SD Card Slot
Software Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Image Rotation, 1 Button Lock, DP 1.2 Digital Display Chain (HDCP Support), Built-in MagicInfo S3, Firmware Update by Network, LFD New Home Screen, PC-Less Videowall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter
Tuner L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
SMART Signage Platform Compliant Yes
Internal Media Player Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 8GB Storage, USB 2.0, Samsung Proprietary OS (VDLinux)

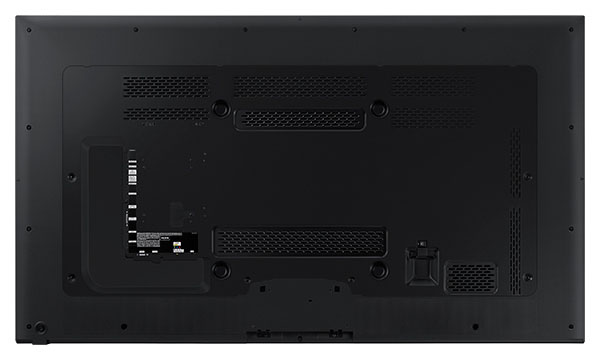

VESA Standard Wall Mount Interface 400 x 400mm
24/7 Operation Yes
Dimensions
Product Dimensions (without stand) 66.0" x 37.8" x 2.3"
Packaging Dimensions 71.3" x 42.7" x 9.8"
Bezel Width 12.0mm (Top, Left), 17.3mm (Right, Bottom)
Weight
Product Weight 75.2 lbs.
Shipping Weight 97.2 lbs.
Service
Standard Warranty 3 Years On-Site (Parts / Labor / Backlight)
Accessories
Included Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries, RS232C (IN) Adapter, Cover-Jack
Optional Mount WMN4675MD, WMN4277SD, WMN6575SD, CML450D (Ceiling Mount)
Optional Stand STN-L7585F (New Stand)
External Media Player SBB (Optional), PIM (Optional)
Optional Touch Overlay CY-TD75LDAF
Green Management
Emission Standard EMC
ENERGY STAR® 6.0 Compliant N/A
RoHS Compliant Yes
Packaging Recyclability Packing Materials Recyclable

Compare:


Samsung DM75E - DM-E Series 75" Slim Direct-Lit LED Display
Model Number DM65E DM75E
Display
Screen Size 65" 75"
Panel Technology 60Hz Slim D-LED BLU 60Hz Slim D-LED BLU
Resolution 1920x1080 (16:9) 1920x1080 (16:9)
Brightness 450 nits 450 nits
Contrast Ratio 4000:1 5000:1
Viewing Angle (Horizontal/Vertical) 178° / 178° 178° / 178°
Orientation Landscape / Portrait Landscape / Portrait
Response Time (G-to-G) 6.5ms 4ms
Connectivity
Input Analog D-SUB, DVI-D (HDMI Common), DisplayPort 1.2, HDMI1, HDMI2 (thru DVI-D Input, Adapter Not Included), Component (CVBS Common) Stereo Mini Jack, USB 2.0 x 1
Output DisplayPort 1.2 (Loop-Out), Stereo Mini Jack DisplayPort 1.2 (Loop-Out), Stereo Mini Jack
External Control RS232C (In/Out) thru Stereo Jack, RJ45 RS232C (In/Out) thru Stereo Jack, RJ45
External Sensor IR, Ambient Light IR, Ambient Light
Sound
Speaker Type Built in Speaker (10W + 10W) Built in Speaker (10W + 10W)
Power
Power Supply AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption (Typical/Max) 110W / 264W 110W / 308W
Power Consumption (Standby) < 0.5W < 0.5W
Environmental Conditions
Operating Temperature 0°C - 40°C 0°C - 40°C
Operating Humidity 10%~80% 10%~80%
Features
  Slim and Light LFD with Built-in MagicInfo Player S3 Slim and Light LFD with Built-in MagicInfo Player S3
Special Hardware Super Clear Coating, Temperature Sensor, Video Wall (15x15), Portrait Mode, Clock Battery (168hrs Clock Keeping), Built in Speaker (10W x 2), WiFi Module Embedded, SD Card Slot
Software Magic Clone (to USB), Auto Source Switching & Recovery, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Image Rotation, 1 Button Lock, DP 1.2 Digital Display Chain (HDCP Support), Built-in MagicInfo S3, Firmware Update by Network, LFD New Home Screen, PC-Less Videowall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player, PC-less Touch, MagicPresenter
Tuner L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
SMART Signage Platform Compliant Yes Yes
Internal Media Player Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 8GB Storage, USB 2.0, Samsung Proprietary OS (VDLinux)
VESA Standard Wall Mount Interface 400 x 400mm 400 x 400mm
24/7 Operation Yes Yes
Dimensions
Product Dimensions (without stand) 57.8" x 33.4" x 2.2" 66.0" x 37.8" x 2.3"
Packaging Dimensions 63.0" x 38.6" x 8.5" 71.3" x 42.7" x 9.8"
Bezel Width 18.0mm (Top, Left), 23.5mm (Right, Bottom) 12.0mm (Top, Left), 17.3mm (Right, Bottom)
Weight
Product Weight 60.4 lbs. 75.2 lbs.
Shipping Weight 78 lbs. 97.2 lbs.
Standard Warranty 3 Years On-Site (Parts / Labor / Backlight)
Accessories
Included Quick Setup Guide, Regulatory Guide, Warranty Card, D-Sub Cable, Power Cord, Remote Controller, Batteries, RS232C (IN) Adapter, Cover-Jack
Optional Mount WMN4675MD, WMN4277SD, WMN6575SD, CML450D (Ceiling Mount) WMN4675MD, WMN4277SD, WMN6575SD, CML450D (Ceiling Mount)
Optional Stand STN-L6500E STN-L7585F (New Stand)
External Media Player SBB (Optional), PIM (Optional) SBB (Optional), PIM (Optional)
Optional Touch Overlay TE65ECD CY-TD75LDAF
Green Management
Emission Standard EMC EMC
ENERGY STAR® 6.0 Compliant N/A N/A
RoHS Compliant Yes Yes
Packaging Recyclability Packing Materials Recyclable Packing Materials Recyclable
